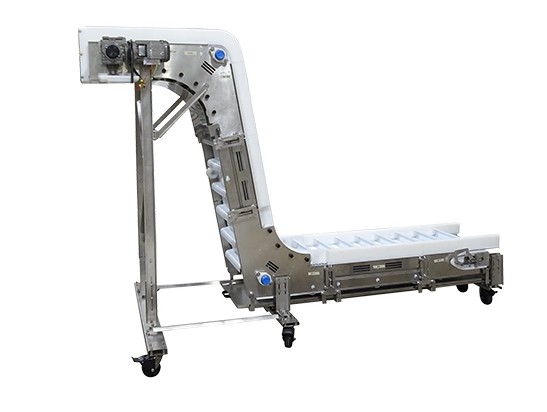

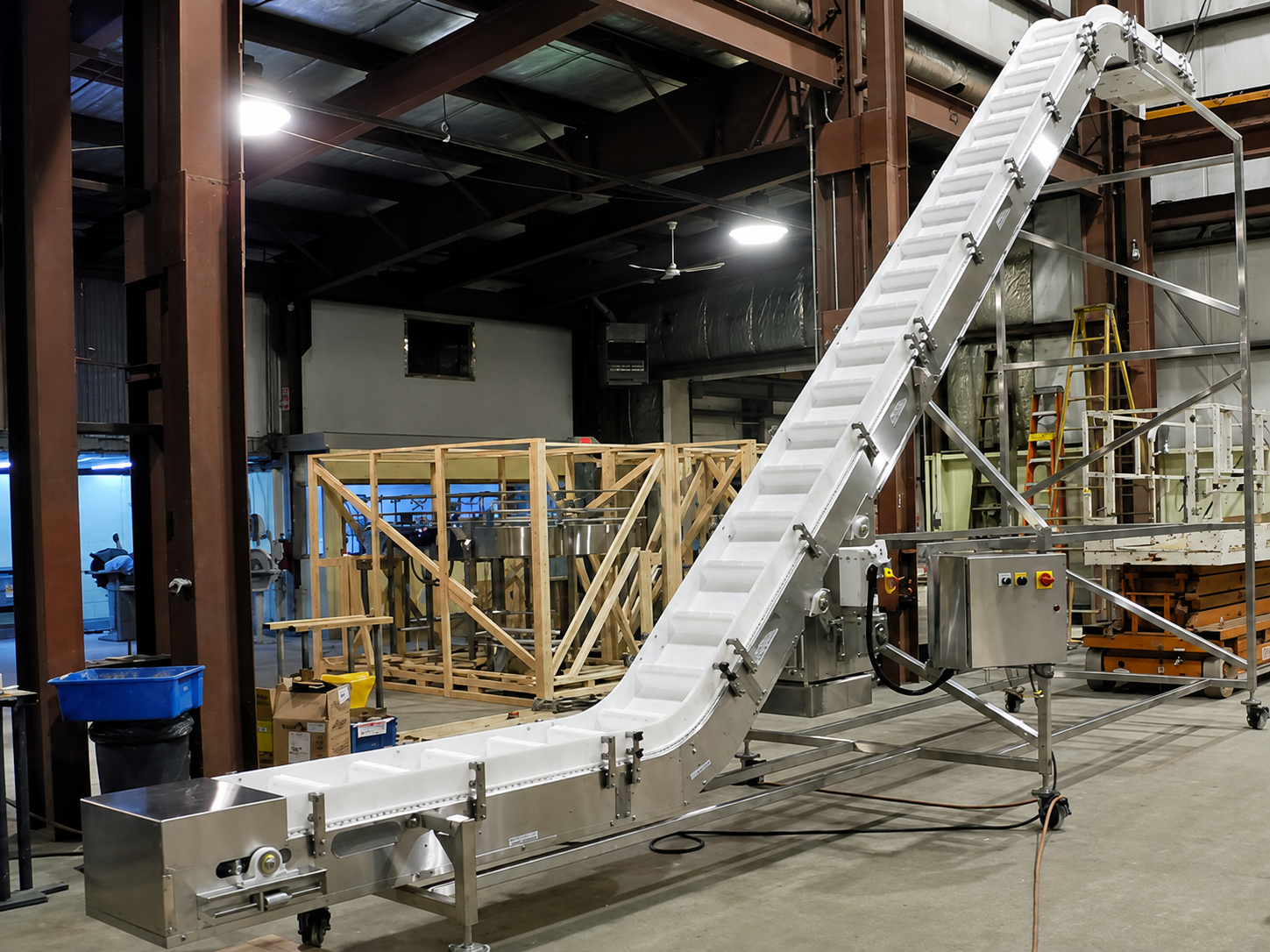

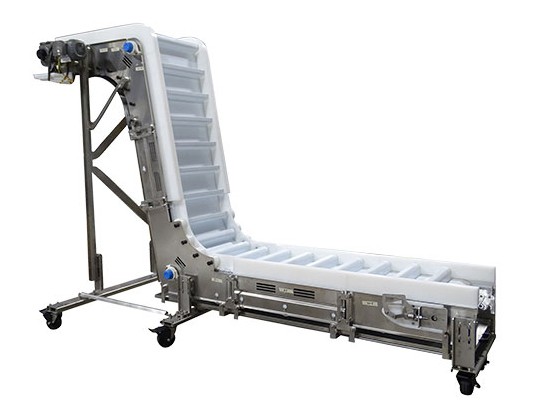

Z Incline Conveyor
Z Incline Conveyors provide controlled elevation changes while maintaining a compact footprint within automated production and packaging systems.
Utilizing cleated, flighted, or scoop-style belting, the conveyor securely handles loose, packaged, and difficult-to-convey products through horizontal, inclined, and discharge sections. Multiple belt styles and configurations are available to accommodate varying product characteristics, elevations, and throughput requirements.

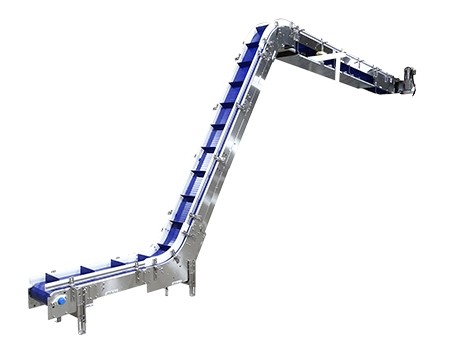

Z Incline Conveyors are designed to efficiently elevate products between different production heights while minimizing required floor space. The distinctive Z-shaped configuration combines horizontal infeed, inclined conveying, and horizontal discharge sections into a single continuous conveyor, providing smooth product transfer throughout the elevation change.
Depending on product characteristics, the conveyor can utilize modular plastic chain, homogeneous belting, or other specialty belt designs with flights, cleats, or scoop profiles. This flexibility allows the system to reliably handle everything from loose and individually packaged products to products requiring additional containment during incline conveying.
- Equipment Type: Z incline conveyor
- Conveyor Configuration: Horizontal infeed, inclined elevation, and horizontal discharge
- Belt Types: Modular plastic chain, homogeneous belt, flighted belt, and scoop-style belt configurations
- Product Types: Loose products, bags, packages, cartons, wrapped products, and bulk materials
- Conveyor Widths: Custom widths available based on product requirements
- Conveyor Speed: Fixed or variable speeds available based on required throughput
- Incline Angle: Configurable based on product, elevation, and available footprint
- Flights/Cleats: Multiple heights, profiles, and spacing configurations available
- Frame Construction: Painted steel or stainless steel configurations available
- Side Containment: Fixed guides, sidewalls, and specialty containment options available
- Drive System: Gearmotor with optional VFD speed control
- Configuration Options: Custom infeed lengths, discharge lengths, elevations, and incline sections available
- Optional Features: Washdown construction, sanitary belting, product guides, sidewalls, and custom supports
(Final specifications vary depending on product dimensions, throughput requirements, elevation requirements, and system configuration.)
- Compact Z-shaped incline conveyor configuration
- Horizontal infeed, incline, and horizontal discharge sections
- Modular plastic chain and homogeneous belt options
- Cleated, flighted, and scoop-style belting available
- Controlled product handling during elevation changes
- Custom flight spacing and profiles available
- Multiple incline angles and elevations available
- Continuous-flow product transportation
- Sidewalls and product containment options available
- Stainless steel construction available
- Washdown-compatible configurations available
- Variable speed operation available
- Custom infeed and discharge configurations
- Integrates with packaging and material handling equipment
- Designed for continuous-duty operation

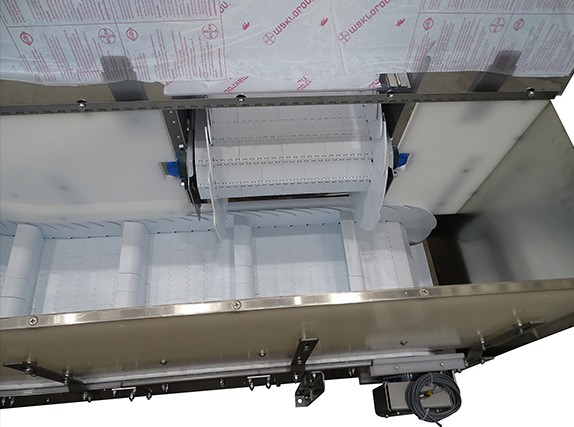

The conveyor utilizes strategically spaced flights or scoops to maintain product position as it travels through the incline section. Belt style, flight spacing, side containment, incline angle, and conveyor speed can be configured around the product to minimize rollback, product damage, and uncontrolled movement during elevation changes.
Multiple infeed and discharge configurations are available to simplify integration with upstream and downstream equipment. The conveyor can also be configured with stainless steel construction, washdown-compatible components, sidewalls, product guides, and sanitary belt designs when required by the operating environment.
Z Incline Conveyors are designed to efficiently elevate products between different production heights while minimizing required floor space. The distinctive Z-shaped configuration combines horizontal infeed, inclined conveying, and horizontal discharge sections into a single continuous conveyor, providing smooth product transfer throughout the elevation change.
Depending on product characteristics, the conveyor can utilize modular plastic chain, homogeneous belting, or other specialty belt designs with flights, cleats, or scoop profiles. This flexibility allows the system to reliably handle everything from loose and individually packaged products to products requiring additional containment during incline conveying.
The conveyor utilizes strategically spaced flights or scoops to maintain product position as it travels through the incline section. Belt style, flight spacing, side containment, incline angle, and conveyor speed can be configured around the product to minimize rollback, product damage, and uncontrolled movement during elevation changes.
Multiple infeed and discharge configurations are available to simplify integration with upstream and downstream equipment. The conveyor can also be configured with stainless steel construction, washdown-compatible components, sidewalls, product guides, and sanitary belt designs when required by the operating environment.
- Compact Z-shaped incline conveyor configuration
- Horizontal infeed, incline, and horizontal discharge sections
- Modular plastic chain and homogeneous belt options
- Cleated, flighted, and scoop-style belting available
- Controlled product handling during elevation changes
- Custom flight spacing and profiles available
- Multiple incline angles and elevations available
- Continuous-flow product transportation
- Sidewalls and product containment options available
- Stainless steel construction available
- Washdown-compatible configurations available
- Variable speed operation available
- Custom infeed and discharge configurations
- Integrates with packaging and material handling equipment
- Designed for continuous-duty operation
- Equipment Type: Z incline conveyor
- Conveyor Configuration: Horizontal infeed, inclined elevation, and horizontal discharge
- Belt Types: Modular plastic chain, homogeneous belt, flighted belt, and scoop-style belt configurations
- Product Types: Loose products, bags, packages, cartons, wrapped products, and bulk materials
- Conveyor Widths: Custom widths available based on product requirements
- Conveyor Speed: Fixed or variable speeds available based on required throughput
- Incline Angle: Configurable based on product, elevation, and available footprint
- Flights/Cleats: Multiple heights, profiles, and spacing configurations available
- Frame Construction: Painted steel or stainless steel configurations available
- Side Containment: Fixed guides, sidewalls, and specialty containment options available
- Drive System: Gearmotor with optional VFD speed control
- Configuration Options: Custom infeed lengths, discharge lengths, elevations, and incline sections available
- Optional Features: Washdown construction, sanitary belting, product guides, sidewalls, and custom supports
(Final specifications vary depending on product dimensions, throughput requirements, elevation requirements, and system configuration.)
