V-Belt Conveyor
The CVB V-Belt Driven Conveyor is a modular live roller conveyor system designed for transportation, alignment, merge, and divert applications requiring smooth and controlled product handling.
Utilizing a bolt-together conveyor design, the system can be configured into straight sections, curves, and junctions to support a wide range of layout requirements. The V-belt driven roller design provides quiet operation, continuous product flow, and simplified maintenance for automated material handling systems.
The CVB conveyor system utilizes a V-belt live roller design intended for reliable carton and package transportation throughout automated conveyor layouts. The modular bolt-together construction allows numerous conveyor configurations to be assembled using standardized components, helping simplify installation, expansion, and future modifications. Available in both motor-driven and slave-driven configurations, the conveyor can support transportation, merging, diverting, and product alignment applications.

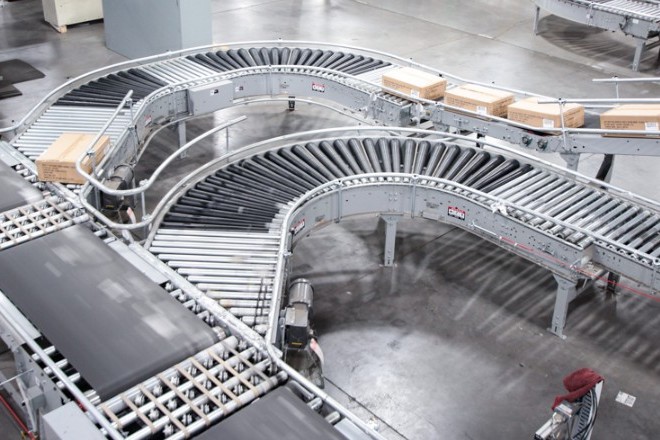

The conveyor features true tapered rollers within curved conveyor sections to help maintain smooth carton handling while minimizing product rotation and instability through turns. The V-belt driven live roller design provides controlled product movement while maintaining quiet operation and dependable throughput performance.
- Conveyor Type: V-belt driven live roller conveyor
- Frame Construction: 10" deep x 12-gauge steel frame
- Roller Type: Galvanized carrying rollers
- Carrying Roller Diameter: 1-7/8"
- Carrying Roller Gauge: 16 gauge
- Carrying Roller Axle: 7/16" hex axle
- Tapered Roller Diameter: 1-7/8" diameter at small end
- Drive Type: Motor-driven or slave-driven modules
- Motor Sizes: 3/4 HP to 1-1/2 HP
- Conveyor Speed Range: Approximately 70 to 600 FPM
- Belt Type: “B” section V-belt
- Live Load Capacity: Up to approximately 100 lbs per foot depending on conveyor width, support spacing, and roller centers
- Standard Conveyor Widths: 18", 24", 30", 36", and 42"
- Tight Radius Conveyor Widths: 18", 24", and 30"
- Tight Radius Inside Radius: Approximately 13-1/2"
- Carrying Roller Centers: 2" and 3"
- Standard Curve Configurations: 30°, 45°, 60°, 90°, and 180°
- Tight Radius Curve Configurations: 90° and 180°
- Standard Junction Configurations: 30° and 45°
- Guard Rail Heights: 3", 6", and 12"
- Finish: Light gray powder coat frame with black side covers
- Axle Isolators: Conductive plastic inserts for noise reduction and wear prevention
- Typical Applications: Transportation, alignment, merge, divert, and transfer operations
- Optional Features: Guard rails, supports, slave drives, motorized drives, and optional powder coat colors
- Electrical Requirements: Typically 230V/460V, 3 Phase, 60 Hz
(Final specifications vary depending on product dimensions, throughput requirements, and system configuration.)
- Modular bolt-together conveyor construction
- V-belt driven live roller conveyor design
- Straight, curved, merge, divert, and junction conveyor configurations available
- True tapered rollers in curve sections for smooth product handling
- Motor-driven or slave-driven conveyor configurations
- Quiet conveyor operation
- Continuous-flow product transportation
- Simplified belt replacement without conveyor disassembly
- Galvanized carrying rollers
- Adjustable conveyor layout configurations
- Heavy-duty industrial steel frame construction
- Powder coat painted frame finish
- Bolt-on guard rail options available
- Multiple conveyor widths and curve angles available
- Designed for transportation, transfer, merge, divert, and alignment applications
The conveyor utilizes galvanized carrying rollers driven by “B” section V-belts to provide continuous product transportation and smooth conveyor operation. Curved conveyor sections utilize tapered carrying rollers designed to maintain product orientation while negotiating conveyor curves. Standard conveyor layouts include straight sections, curves, merges, diverts, and junction assemblies depending on system requirements.
The conveyor frame consists of a 10" deep, 12-gauge steel frame designed for industrial continuous-duty operation. Conveyor widths and configurations are available to accommodate varying carton sizes, product dimensions, and throughput requirements. Carrying roller centers are available in multiple spacings to support different product sizes and load conditions.
Maintenance accessibility was incorporated into the conveyor design through specially designed snub driveshaft assemblies that allow V-belts to be replaced without disassembling the conveyor. Conductive plastic axle isolators help reduce operational noise while minimizing wear between the roller axles and conveyor frame.
The CVB conveyor system utilizes a V-belt live roller design intended for reliable carton and package transportation throughout automated conveyor layouts. The modular bolt-together construction allows numerous conveyor configurations to be assembled using standardized components, helping simplify installation, expansion, and future modifications. Available in both motor-driven and slave-driven configurations, the conveyor can support transportation, merging, diverting, and product alignment applications.
The conveyor features true tapered rollers within curved conveyor sections to help maintain smooth carton handling while minimizing product rotation and instability through turns. The V-belt driven live roller design provides controlled product movement while maintaining quiet operation and dependable throughput performance.
The conveyor utilizes galvanized carrying rollers driven by “B” section V-belts to provide continuous product transportation and smooth conveyor operation. Curved conveyor sections utilize tapered carrying rollers designed to maintain product orientation while negotiating conveyor curves. Standard conveyor layouts include straight sections, curves, merges, diverts, and junction assemblies depending on system requirements.
The conveyor frame consists of a 10" deep, 12-gauge steel frame designed for industrial continuous-duty operation. Conveyor widths and configurations are available to accommodate varying carton sizes, product dimensions, and throughput requirements. Carrying roller centers are available in multiple spacings to support different product sizes and load conditions.
Maintenance accessibility was incorporated into the conveyor design through specially designed snub driveshaft assemblies that allow V-belts to be replaced without disassembling the conveyor. Conductive plastic axle isolators help reduce operational noise while minimizing wear between the roller axles and conveyor frame.
- Modular bolt-together conveyor construction
- V-belt driven live roller conveyor design
- Straight, curved, merge, divert, and junction conveyor configurations available
- True tapered rollers in curve sections for smooth product handling
- Motor-driven or slave-driven conveyor configurations
- Quiet conveyor operation
- Continuous-flow product transportation
- Simplified belt replacement without conveyor disassembly
- Galvanized carrying rollers
- Adjustable conveyor layout configurations
- Heavy-duty industrial steel frame construction
- Powder coat painted frame finish
- Bolt-on guard rail options available
- Multiple conveyor widths and curve angles available
- Designed for transportation, transfer, merge, divert, and alignment applications
- Conveyor Type: V-belt driven live roller conveyor
- Frame Construction: 10" deep x 12-gauge steel frame
- Roller Type: Galvanized carrying rollers
- Carrying Roller Diameter: 1-7/8"
- Carrying Roller Gauge: 16 gauge
- Carrying Roller Axle: 7/16" hex axle
- Tapered Roller Diameter: 1-7/8" diameter at small end
- Drive Type: Motor-driven or slave-driven modules
- Motor Sizes: 3/4 HP to 1-1/2 HP
- Conveyor Speed Range: Approximately 70 to 600 FPM
- Belt Type: “B” section V-belt
- Live Load Capacity: Up to approximately 100 lbs per foot depending on conveyor width, support spacing, and roller centers
- Standard Conveyor Widths: 18", 24", 30", 36", and 42"
- Tight Radius Conveyor Widths: 18", 24", and 30"
- Tight Radius Inside Radius: Approximately 13-1/2"
- Carrying Roller Centers: 2" and 3"
- Standard Curve Configurations: 30°, 45°, 60°, 90°, and 180°
- Tight Radius Curve Configurations: 90° and 180°
- Standard Junction Configurations: 30° and 45°
- Guard Rail Heights: 3", 6", and 12"
- Finish: Light gray powder coat frame with black side covers
- Axle Isolators: Conductive plastic inserts for noise reduction and wear prevention
- Typical Applications: Transportation, alignment, merge, divert, and transfer operations
- Optional Features: Guard rails, supports, slave drives, motorized drives, and optional powder coat colors
- Electrical Requirements: Typically 230V/460V, 3 Phase, 60 Hz
(Final specifications vary depending on product dimensions, throughput requirements, and system configuration.)
