Turn Table Pallet Conveyor
Turntables are heavy-duty pallet handling systems designed to rotate pallets and unit loads while maintaining product orientation throughout automated conveyor operations.
Utilizing powered rotating conveyor platforms, the system provides controlled directional changes for pallets, skids, containers, and heavy unit loads without altering the load’s leading edge. The pre-engineered turntable design supports reliable continuous-duty operation for manufacturing, warehousing, palletizing, and automated material handling applications.
Turntables are designed to provide controlled pallet rotation and directional changes within automated conveyor systems where maintaining pallet orientation is critical. Unlike traditional transfer systems that may change pallet leading edge orientation, the rotating conveyor platform allows the load to maintain consistent positioning throughout the directional change process. This functionality is commonly utilized in pallet strapping operations, barcode scanning applications, stretch wrapping systems, and downstream pallet handling processes.

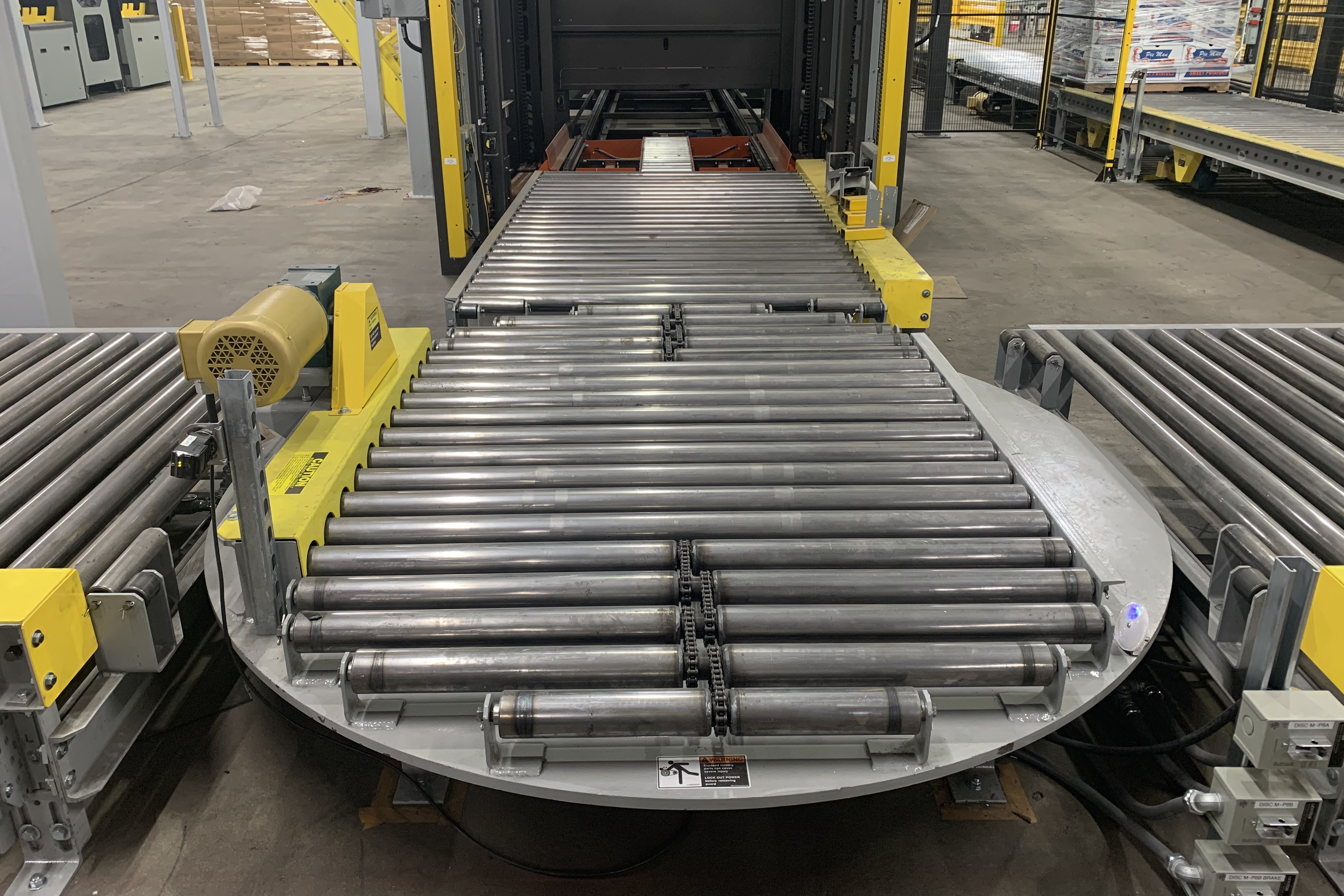

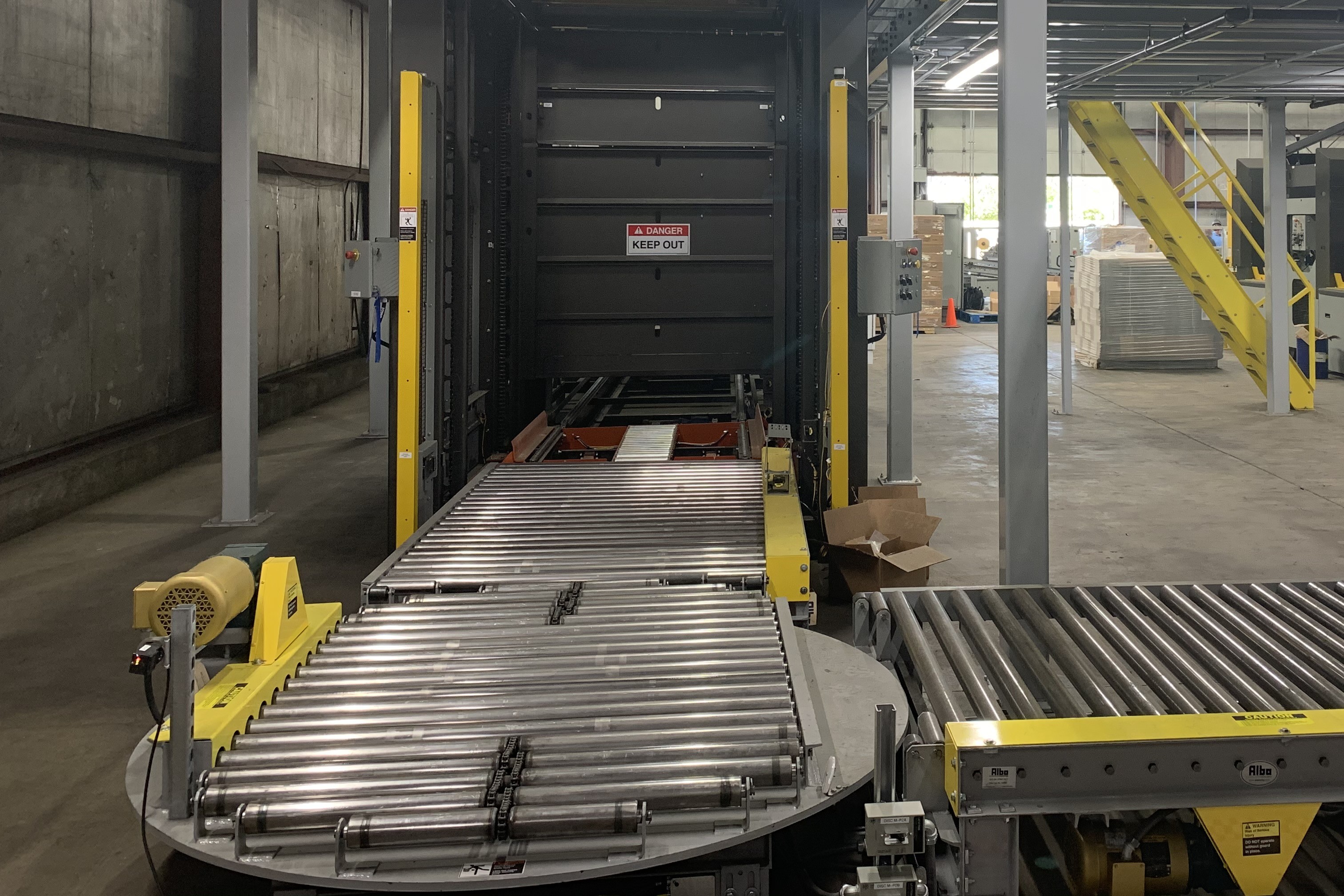

The turntable platform incorporates powered conveyor rollers mounted directly to the rotating assembly, allowing continuous positive-driven pallet movement throughout the transfer cycle. Available with pneumatic or electric rotation systems, the conveyor can provide 90°, 180°, 270°, or continuous rotation depending on operational requirements. Heavy-duty structural steel construction and pre-engineered configurations simplify integration into automated pallet conveyor systems while supporting demanding industrial applications.
- Equipment Type: Pallet handling conveyor turntable
- Function: Controlled pallet rotation and directional change
- Product Types: Pallets, skids, containers, racks, and heavy unit loads
- Rotation Options: 90°, 180°, 270°, and continuous rotation
- Rotation Configurations: Pneumatic or electric rotation systems
- Maximum Load Capacity: Up to approximately 4,000 lbs centered load
- Standard Conveyor Speeds: Approximately 30, 45, and 60 FPM
- Table Diameters: Approximately 72", 75", 78", 82", 84", 86", and 92"
- Effective Conveyor Widths: Approximately 44" to 86"
- Roller Centers: Approximately 2.75", 3.25", 3.75", 4", 4.5", and 6"
- Chain Types: RC-40 and RC-60 chain configurations
- Conveyor Construction: Welded structural steel frame
- Drive Mounting: High-side CDLR drive mounting
- Electrical Requirements: 230/460V, 3 Phase, 60 Hz
- Bearing Systems: Heavy-duty flange or slewing ring bearing configurations
- Optional Features: Slip rings, VFD controls, and continuous rotation capability
- Shipment Configuration: Fully assembled and factory tested
- Warranty: Standard two-year warranty
- Applications: Pallet routing, stretch wrapping, scanning, strapping, and automated pallet handling
(Final specifications vary depending on load requirements, pallet dimensions, throughput requirements, rotation requirements, and overall system configuration.)
- Heavy-duty pallet handling turntable system
- Controlled pallet rotation while maintaining leading edge orientation
- Powered rotating conveyor platform
- Electric and pneumatic rotation configurations available
- 90°, 180°, 270°, and continuous rotation capability available
- Positive-driven conveyor roller transportation
- Pre-engineered turntable construction
- Heavy-duty structural steel frame design
- Slewing ring bearing systems available
- Continuous-duty industrial operation
- Compatible with pallet handling conveyor systems
- Supports pallet routing and directional changes
- Optional slip ring assemblies for continuous rotation
- Fully assembled and factory tested prior to shipment
- Compatible with automated conveyor controls and material handling systems
The rotating conveyor platform utilizes chain-driven live rollers mounted to a structural turntable assembly that rotates the pallet while maintaining controlled load transportation. Pneumatic rotation systems utilize heavy-duty air cylinders for cost-effective 90° rotation applications, while electric rotation systems utilize gearmotors with brake assemblies to support higher load capacities, faster cycle times, and continuous rotation capability. Optional slip ring assemblies allow continuous rotation applications while preventing wire binding throughout operation.
The conveyor platform is supported by heavy-duty rotational bearing systems designed for long-term industrial operation. Depending on the rotation style, the system may utilize flange bearings with perimeter support casters or slewing ring bearings commonly used in heavy-duty industrial equipment applications. Powered conveyor rollers provide positive pallet movement throughout the transfer cycle to maintain stable product handling and accurate positioning.

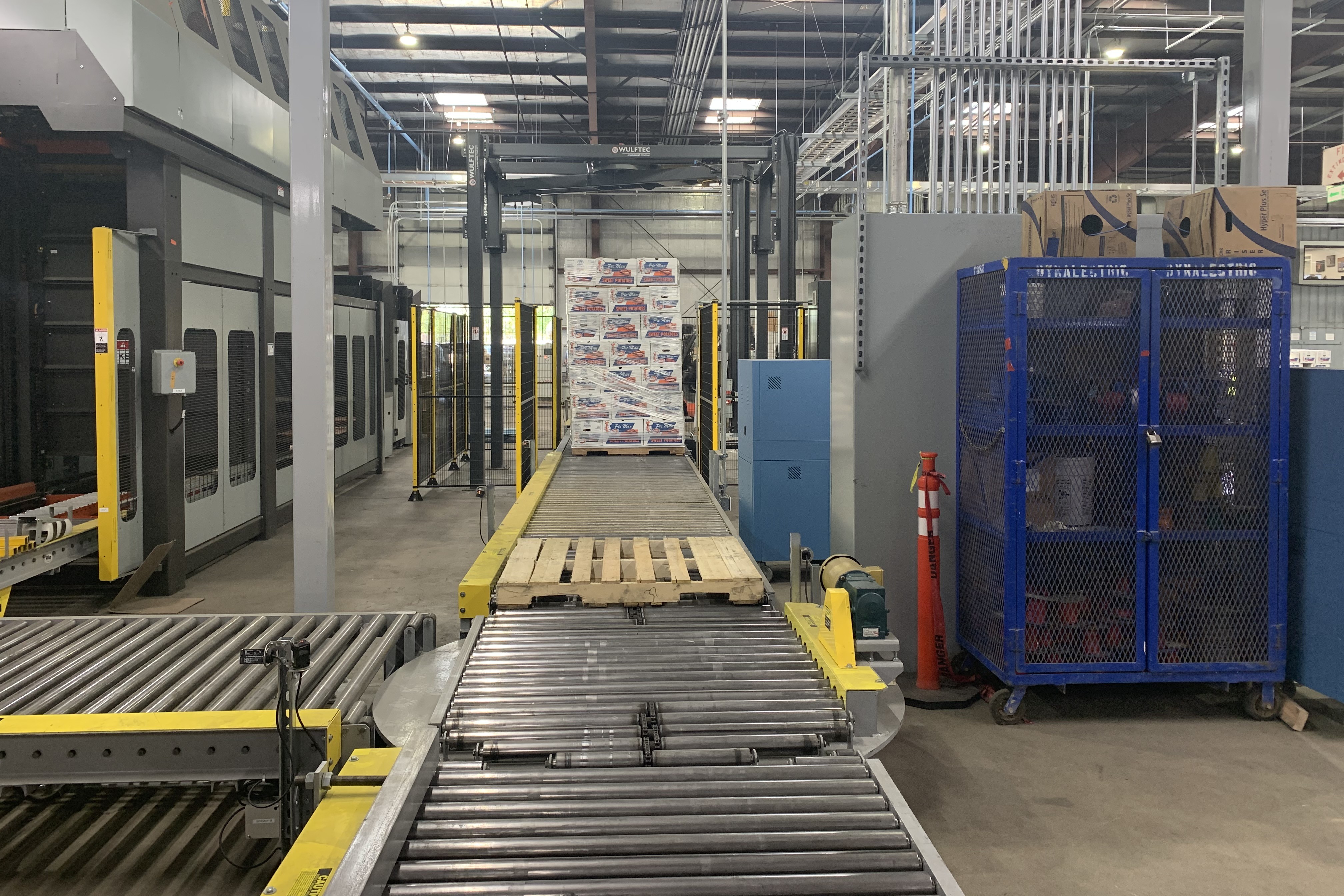

Turntables are commonly integrated into pallet handling conveyor systems supporting pallet routing, stretch wrapping, scanning, strapping, robotic palletizing, and warehouse automation operations. Pre-engineered designs and fully assembled shipment configurations help simplify installation while supporting continuous-duty industrial performance.
Turntables are designed to provide controlled pallet rotation and directional changes within automated conveyor systems where maintaining pallet orientation is critical. Unlike traditional transfer systems that may change pallet leading edge orientation, the rotating conveyor platform allows the load to maintain consistent positioning throughout the directional change process. This functionality is commonly utilized in pallet strapping operations, barcode scanning applications, stretch wrapping systems, and downstream pallet handling processes.
The turntable platform incorporates powered conveyor rollers mounted directly to the rotating assembly, allowing continuous positive-driven pallet movement throughout the transfer cycle. Available with pneumatic or electric rotation systems, the conveyor can provide 90°, 180°, 270°, or continuous rotation depending on operational requirements. Heavy-duty structural steel construction and pre-engineered configurations simplify integration into automated pallet conveyor systems while supporting demanding industrial applications.
The rotating conveyor platform utilizes chain-driven live rollers mounted to a structural turntable assembly that rotates the pallet while maintaining controlled load transportation. Pneumatic rotation systems utilize heavy-duty air cylinders for cost-effective 90° rotation applications, while electric rotation systems utilize gearmotors with brake assemblies to support higher load capacities, faster cycle times, and continuous rotation capability. Optional slip ring assemblies allow continuous rotation applications while preventing wire binding throughout operation.
The conveyor platform is supported by heavy-duty rotational bearing systems designed for long-term industrial operation. Depending on the rotation style, the system may utilize flange bearings with perimeter support casters or slewing ring bearings commonly used in heavy-duty industrial equipment applications. Powered conveyor rollers provide positive pallet movement throughout the transfer cycle to maintain stable product handling and accurate positioning.
Turntables are commonly integrated into pallet handling conveyor systems supporting pallet routing, stretch wrapping, scanning, strapping, robotic palletizing, and warehouse automation operations. Pre-engineered designs and fully assembled shipment configurations help simplify installation while supporting continuous-duty industrial performance.
- Heavy-duty pallet handling turntable system
- Controlled pallet rotation while maintaining leading edge orientation
- Powered rotating conveyor platform
- Electric and pneumatic rotation configurations available
- 90°, 180°, 270°, and continuous rotation capability available
- Positive-driven conveyor roller transportation
- Pre-engineered turntable construction
- Heavy-duty structural steel frame design
- Slewing ring bearing systems available
- Continuous-duty industrial operation
- Compatible with pallet handling conveyor systems
- Supports pallet routing and directional changes
- Optional slip ring assemblies for continuous rotation
- Fully assembled and factory tested prior to shipment
- Compatible with automated conveyor controls and material handling systems
- Equipment Type: Pallet handling conveyor turntable
- Function: Controlled pallet rotation and directional change
- Product Types: Pallets, skids, containers, racks, and heavy unit loads
- Rotation Options: 90°, 180°, 270°, and continuous rotation
- Rotation Configurations: Pneumatic or electric rotation systems
- Maximum Load Capacity: Up to approximately 4,000 lbs centered load
- Standard Conveyor Speeds: Approximately 30, 45, and 60 FPM
- Table Diameters: Approximately 72", 75", 78", 82", 84", 86", and 92"
- Effective Conveyor Widths: Approximately 44" to 86"
- Roller Centers: Approximately 2.75", 3.25", 3.75", 4", 4.5", and 6"
- Chain Types: RC-40 and RC-60 chain configurations
- Conveyor Construction: Welded structural steel frame
- Drive Mounting: High-side CDLR drive mounting
- Electrical Requirements: 230/460V, 3 Phase, 60 Hz
- Bearing Systems: Heavy-duty flange or slewing ring bearing configurations
- Optional Features: Slip rings, VFD controls, and continuous rotation capability
- Shipment Configuration: Fully assembled and factory tested
- Warranty: Standard two-year warranty
- Applications: Pallet routing, stretch wrapping, scanning, strapping, and automated pallet handling
(Final specifications vary depending on load requirements, pallet dimensions, throughput requirements, rotation requirements, and overall system configuration.)
