Spiral Case Conveyor

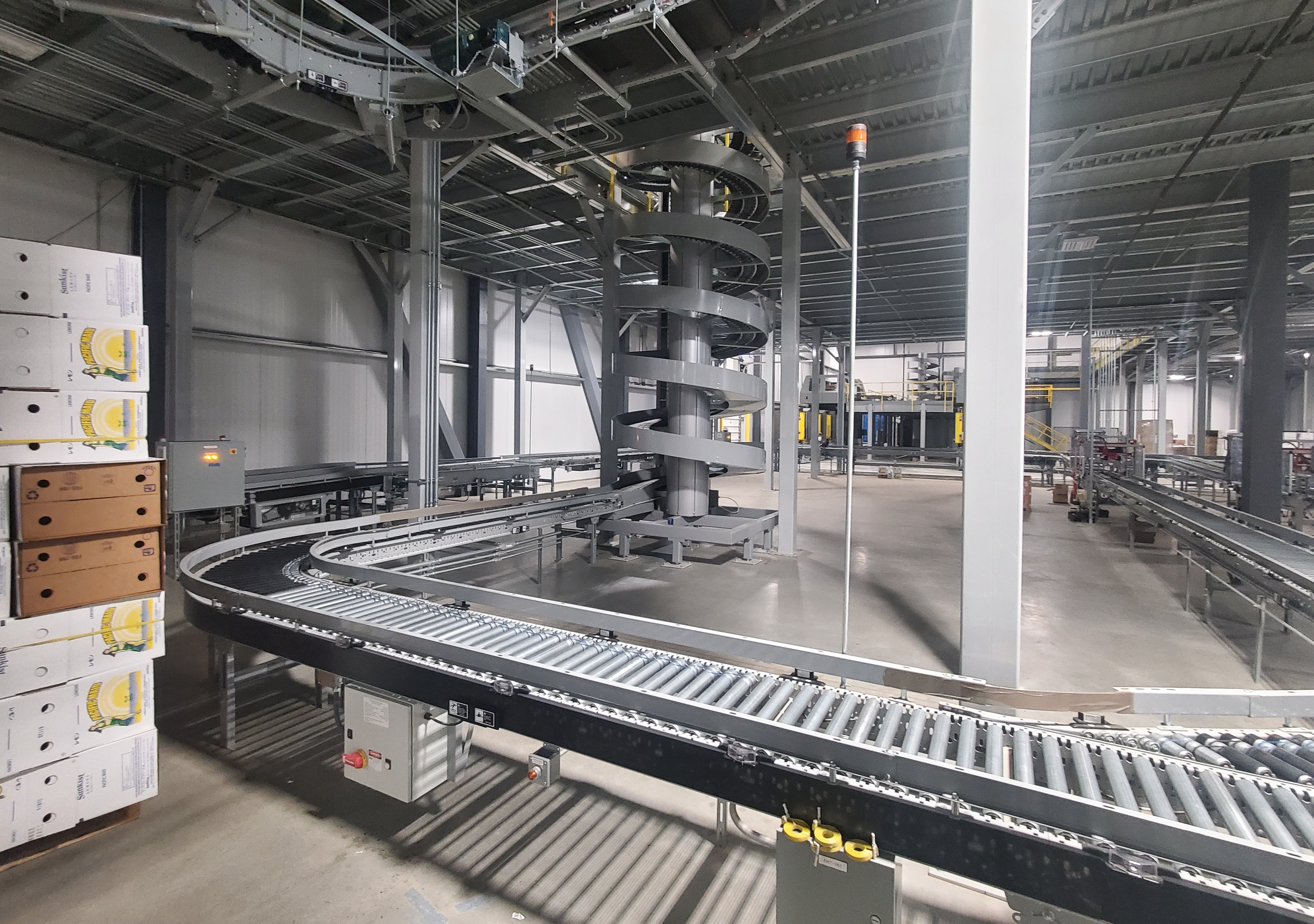

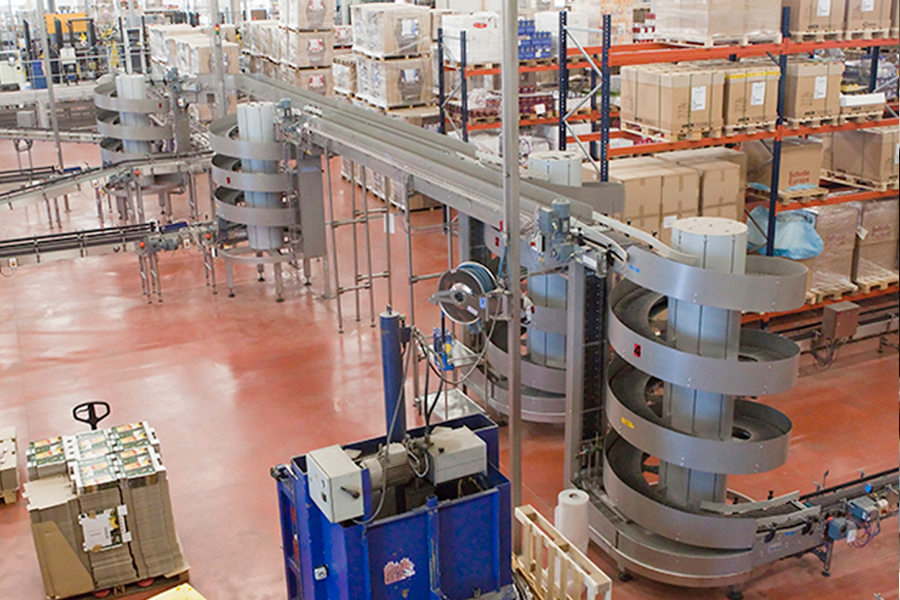

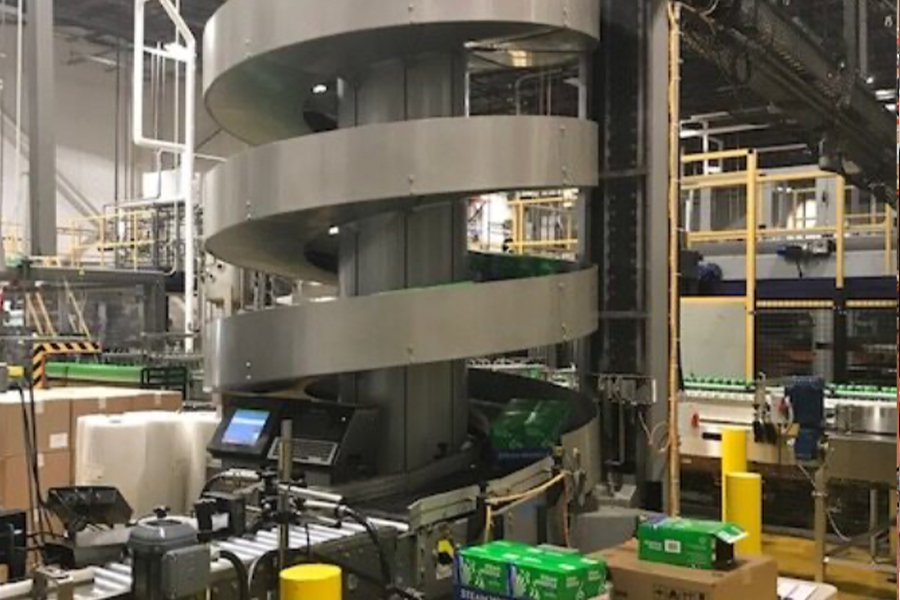

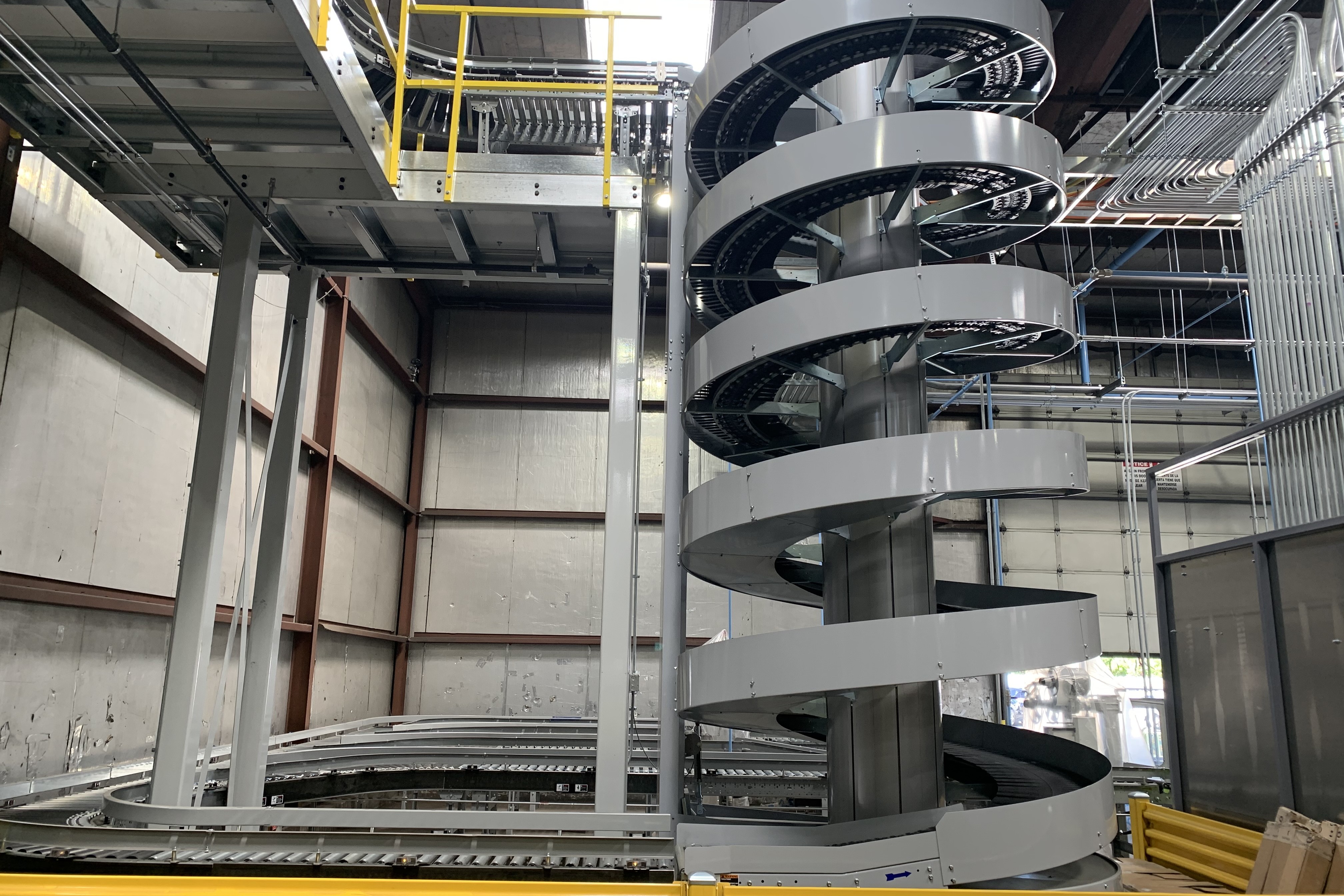

This spiral conveyor system is engineered to move cartons, totes, trays, bottles, and packaged products vertically in a continuous flow using a compact spiral footprint. The conveyor provides a space-saving alternative to traditional incline conveyors, lifts, and elevators while maintaining smooth and reliable product transport between elevations.

Designed for high-throughput industrial environments, the system utilizes a proprietary low-friction slat belt and roller chain technology that reduces wear, minimizes maintenance requirements, and supports continuous-duty operation. Its modular design allows the conveyor to be customized for a wide range of product types, throughput requirements, and facility layouts while also supporting future field modifications and system expansion.

The system utilizes a continuous slat conveyor belt supported by a heavy-duty roller chain that travels vertically through a spiral structure. Precision roller bearings and low-friction support surfaces allow products to move smoothly up or down while maintaining stable product orientation and consistent throughput.

Unlike conventional vertical lifting systems that rely on stop-and-go movement, the spiral conveyor maintains continuous product flow throughout operation, improving line efficiency and reducing product handling interruptions. Horizontal infeed and outfeed sections allow smooth transitions between adjoining conveyor systems while minimizing product tipping and transfer issues.

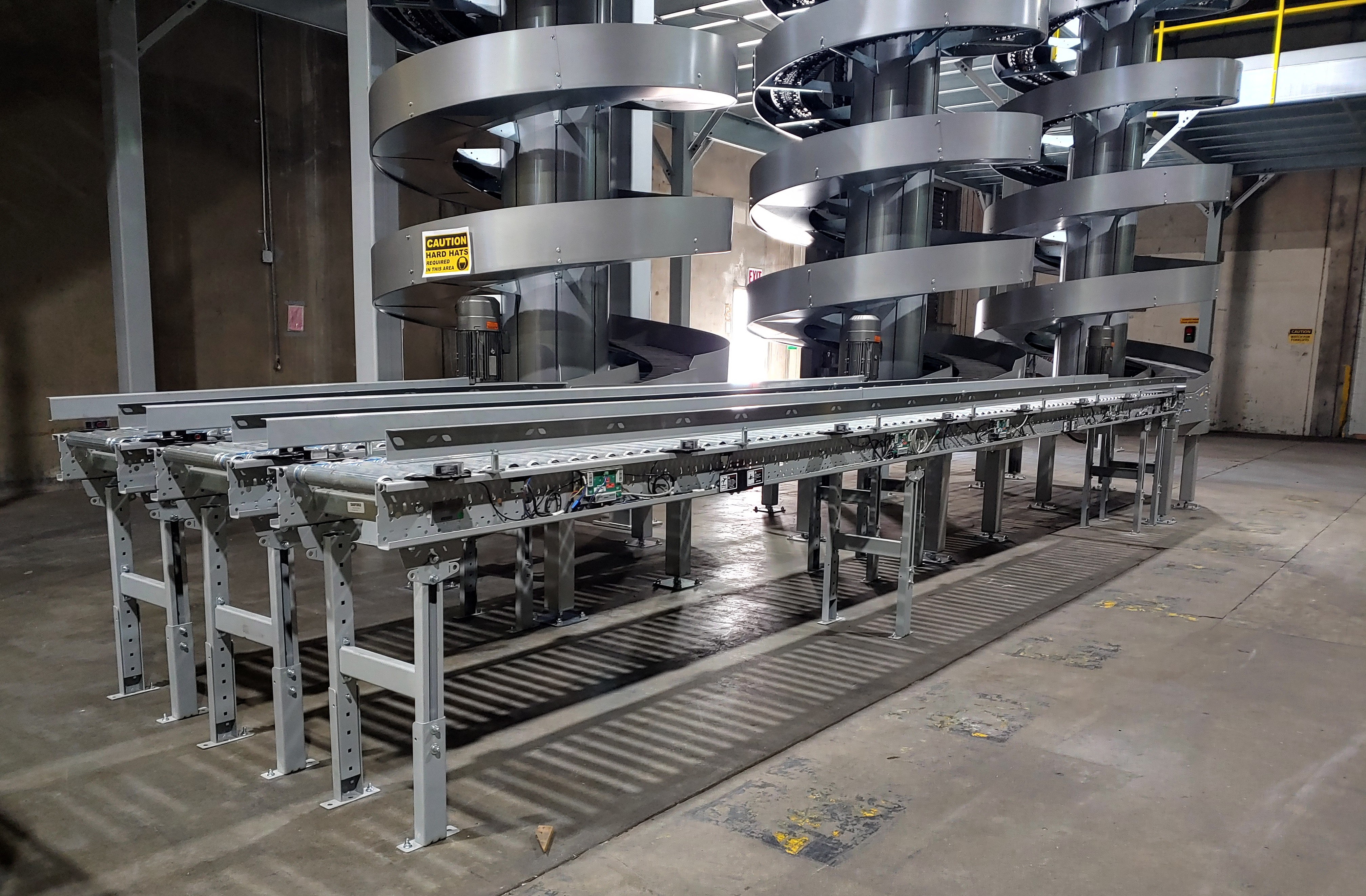

Its modular construction supports multiple spiral configurations including unit load spirals, dual track spirals, mass flow spirals, narrow track spirals, and high-capacity spirals depending on the application. The conveyor can be configured for upward or downward product flow, clockwise or counterclockwise rotation, and optional reversible operation. Built-in overload protection and automatic chain tensioning further improve operational reliability and reduce maintenance requirements.

• Continuous-flow spiral conveyor technology
• Compact vertical conveyor footprint
• Smooth and gentle product handling
• Handles cartons, totes, trays, bottles, cans, and packaged products
• Continuous vertical transport without stop-and-go operation
• Modular conveyor construction for flexible layouts
• Horizontal infeed and outfeed conveyor sections
• Single drive motor operation for reduced energy consumption
• Low-friction slat belt design
• Automatic chain tensioning system
• Built-in overload protection
• Low-maintenance conveyor operation
• Optional reversible conveyor operation
• Multiple spiral configurations available including dual track and high-capacity models
• Suitable for packaging, warehousing, food, beverage, and material handling applications

• Conveyor type: Spiral conveyor system
• Conveyor operation: Continuous vertical product transport
• Slat widths available: Approximately 6 in. to 36 in. depending on model
• Conveyor speeds: Up to approximately 200 ft/min depending on model
• Load capacity: Up to approximately 75 lbs per linear foot of conveyor
• Total conveyor load capacity: Up to approximately 3,600 lbs depending on model
• Drive configuration: Single drive motor design
• Conveyor construction: Modular slat belt with heavy-duty roller chain system
• Chain construction: Nickel-plated heavy-duty chain with sealed bearings
• Conveyor configurations: Up, down, reversible, clockwise, and counterclockwise layouts available
• Product compatibility: Cartons, trays, totes, bottles, cans, jars, and packaged products
• Applications: Packaging, warehousing, distribution, food & beverage, accumulation, and vertical material handling systems

(Final specifications vary depending on conveyor model, product dimensions, throughput requirements, and system configuration.)
