Saturn S8 Wrapper

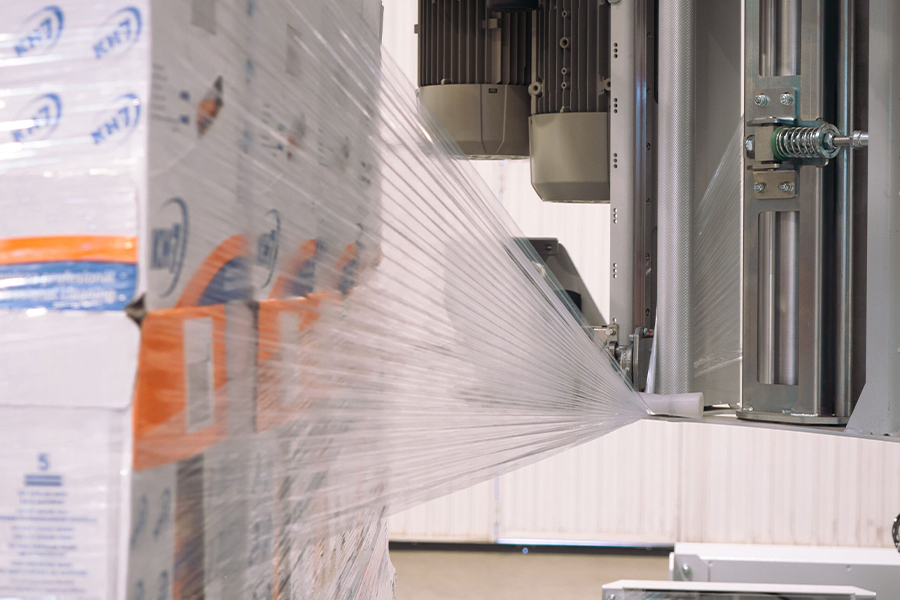

This rotary ring stretch wrapper is engineered to wrap palletized loads using a rotating ring system where the pallet load remains stationary while the film carriage rotates around it. This wrapping method improves wrapping stability, reduces mechanical wear, and maintains consistent high-speed performance compared to traditional rotating arm or turntable wrapping systems.

Designed for maximum production environments, the system incorporates a dual film dispensing head capable of applying two layers of film during a single ring rotation. This significantly increases wrapping throughput while maintaining consistent load containment and reducing overall packaging costs.

The machine utilizes a fully automatic rotary ring wrapping system equipped with dual film carriages and electronic film tension controls that automatically adjust based on pallet load shape and profile. The load remains stationary during operation while the rotary ring rotates around the pallet, improving wrapping consistency and reducing product instability during high-speed operation.

Its electronic pre-stretch film system maximizes film efficiency by stretching film prior to application, significantly reducing film usage while maintaining proper load containment force. The integrated cut-and-weld system automatically seals the film at the end of each wrapping cycle, eliminating loose film tails and improving final pallet appearance.

The machine is designed for continuous industrial operation with reinforced construction, low-maintenance rotary ring technology, and modular automation options. Optional systems including automatic reel change, top sheet dispensers, corner board applicators, reinforcement cord systems, and motorized hold-down devices further expand load protection and automation capabilities.

• Fully automatic rotary ring stretch wrapping system
• Dual film carriage wrapping technology
• Up to 160 pallets per hour production capacity
• Stationary load wrapping design for improved load stability
• Electronic self-adjusting film tension control
• Electronic pre-stretch film system available
• Automatic film cut and welding system
• No loose film tails after wrapping cycle completion
• High-speed continuous-duty industrial operation
• Reduced film consumption and operating costs
• Optional automatic reel change system available
• Optional top sheet dispenser and corner applicator systems available
• Capable of dustproof and rainproof wrapping applications
• Low-maintenance heavy-duty industrial construction

• Machine type: Rotary ring stretch wrapper
• Wrapping operation: Fully automatic
• Production capacity: Up to approximately 160 pallets per hour
• Wrapping technology: Dual-head rotary ring wrapping system
• Film pre-stretch capability: Up to approximately 300% standard, 400% optional EPS system
• Maximum load width: Approximately 43 in. to 71 in. depending on model configuration
• Maximum load height: Approximately 82 in. standard
• Maximum pallet diagonal: Approximately 68 in. to 114 in. depending on ring size
• Stretch film width: Approximately 20 in.
• Film core diameter: Approximately 3 in.
• Electrical requirements: 400V / 3 Phase / 60 Hz
• Air requirement: Approximately 6 bar compressed air
• Optional systems: Automatic reel change, top sheet dispenser, reinforcement cord, corner applicator, motorized hold-down system

(Final specifications vary depending on pallet dimensions, load requirements, throughput requirements, and system configuration.)
