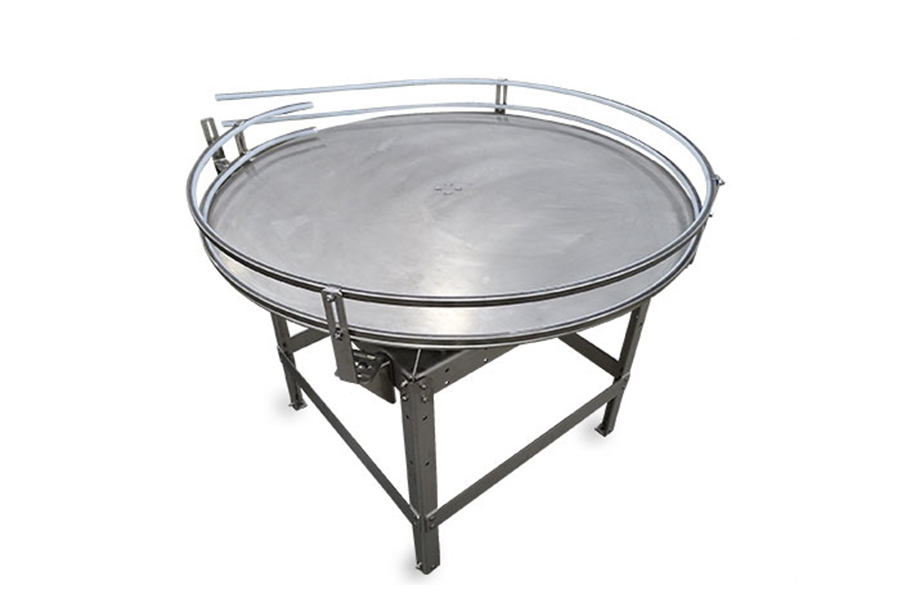

Rotary Accumulation Table
A rotary accumulation table designed to accumulate, buffer, and unscramble products while maintaining smooth product flow between production lines and downstream packaging equipment.
The compact rotating table design provides efficient surge capacity and controlled product discharge for automated and manual packaging operations. Ideal for beverage, food, pharmaceutical, and packaging applications requiring reliable accumulation within a minimal footprint.
This rotary accumulation table is engineered to provide temporary product accumulation and buffering between conveyor systems during downstream slowdowns, stoppages, or manual packing operations. The rotating disc design allows products to accumulate in bulk while maintaining smooth product movement and controlled discharge back into the production line.
Designed for compact industrial conveyor layouts, the system provides efficient accumulation capacity while minimizing floor space requirements. The rotary table can function as both an accumulation device and an unscrambling table, making it well suited for handling bottles, cans, jars, tubs, and other round containers in high-speed packaging environments.
- Conveyor type: Rotary accumulation table
- Table diameters available: Approximately 36 in., 48 in., and 60 in.
- Maximum load capacity: Approximately 300 lbs combined product weight
- Conveyor operation: Continuous rotating accumulation table
- Product compatibility: Bottles, cans, canisters, cups, jars, tubs, and PET containers
- Guide rail configuration: Adjustable right-hand or left-hand operation
- Conveyor construction: Heavy-duty rotating disc with industrial steel frame
- Speed control: Variable frequency drive (VFD) compatible
- Applications: Product accumulation, surge backup, unscrambling, and manual packing stations
(Final specifications vary depending on conveyor layout, product dimensions, throughput requirements, and system configuration.)
- Rotary accumulation and unscrambling conveyor system
- Compact footprint with efficient accumulation capacity
- Smooth bulk product accumulation and discharge
- Suitable for round containers and packaged products
- Supports surge buffering during downstream downtime
- Ideal for manual hand packing stations and conveyor transfer points
- Adjustable guide rails for right-hand or left-hand configurations
- Heavy-duty rotating disc support construction
- Variable speed operation available
- Low-maintenance industrial conveyor design
- Easy integration into existing conveyor systems
- Suitable for beverage, food, pharmaceutical, and packaging applications

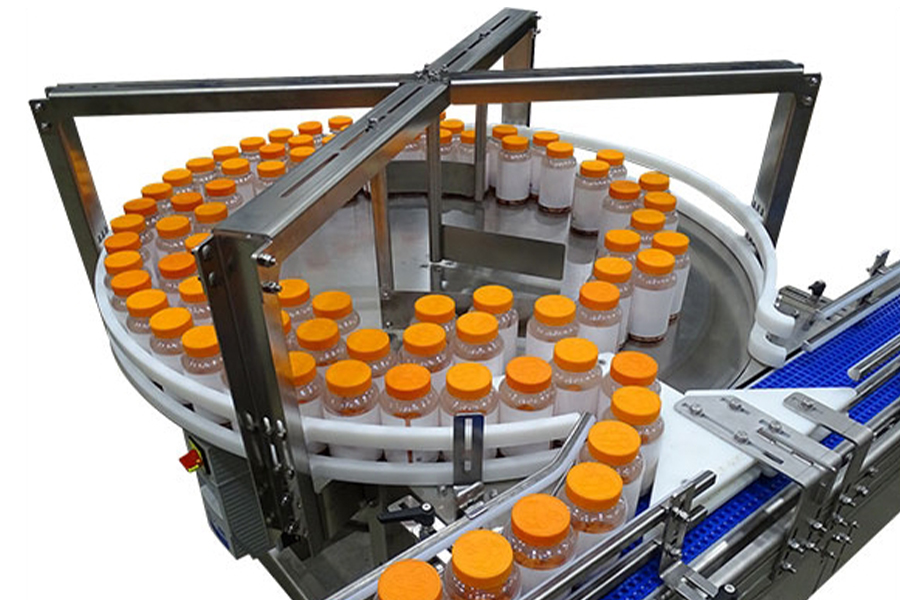

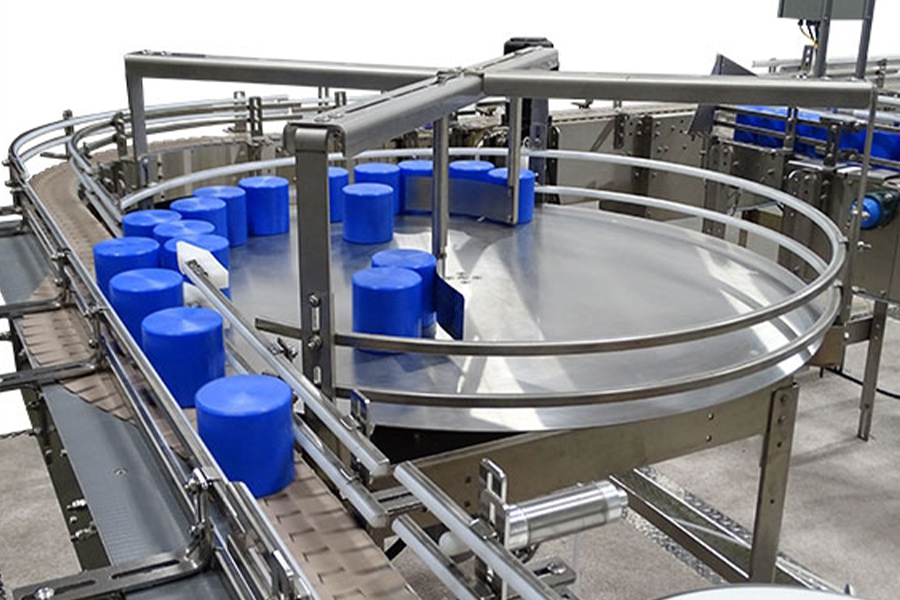

The system utilizes a rotating disc surface that continuously circulates products around the accumulation table while maintaining controlled product flow between infeed and discharge conveyors. During downstream interruptions, products accumulate on the rotating table allowing upstream production to continue operating without immediate line stoppage.
Guide rails positioned around the rotating table direct products toward the discharge point and can be configured for either right-hand or left-hand conveyor flow arrangements. Heavy-duty disc supports maintain stable disc edge travel and long operational life even under continuous accumulation conditions.
Variable speed operation allows facilities to optimize accumulation and discharge performance based on production line speeds and product handling requirements. The compact modular design allows the rotary table to integrate easily into existing conveyor systems while supporting manual packing stations, surge buffering, and automated packaging applications.
This rotary accumulation table is engineered to provide temporary product accumulation and buffering between conveyor systems during downstream slowdowns, stoppages, or manual packing operations. The rotating disc design allows products to accumulate in bulk while maintaining smooth product movement and controlled discharge back into the production line.
Designed for compact industrial conveyor layouts, the system provides efficient accumulation capacity while minimizing floor space requirements. The rotary table can function as both an accumulation device and an unscrambling table, making it well suited for handling bottles, cans, jars, tubs, and other round containers in high-speed packaging environments.
The system utilizes a rotating disc surface that continuously circulates products around the accumulation table while maintaining controlled product flow between infeed and discharge conveyors. During downstream interruptions, products accumulate on the rotating table allowing upstream production to continue operating without immediate line stoppage.
Guide rails positioned around the rotating table direct products toward the discharge point and can be configured for either right-hand or left-hand conveyor flow arrangements. Heavy-duty disc supports maintain stable disc edge travel and long operational life even under continuous accumulation conditions.
Variable speed operation allows facilities to optimize accumulation and discharge performance based on production line speeds and product handling requirements. The compact modular design allows the rotary table to integrate easily into existing conveyor systems while supporting manual packing stations, surge buffering, and automated packaging applications.
- Rotary accumulation and unscrambling conveyor system
- Compact footprint with efficient accumulation capacity
- Smooth bulk product accumulation and discharge
- Suitable for round containers and packaged products
- Supports surge buffering during downstream downtime
- Ideal for manual hand packing stations and conveyor transfer points
- Adjustable guide rails for right-hand or left-hand configurations
- Heavy-duty rotating disc support construction
- Variable speed operation available
- Low-maintenance industrial conveyor design
- Easy integration into existing conveyor systems
- Suitable for beverage, food, pharmaceutical, and packaging applications
- Conveyor type: Rotary accumulation table
- Table diameters available: Approximately 36 in., 48 in., and 60 in.
- Maximum load capacity: Approximately 300 lbs combined product weight
- Conveyor operation: Continuous rotating accumulation table
- Product compatibility: Bottles, cans, canisters, cups, jars, tubs, and PET containers
- Guide rail configuration: Adjustable right-hand or left-hand operation
- Conveyor construction: Heavy-duty rotating disc with industrial steel frame
- Speed control: Variable frequency drive (VFD) compatible
- Applications: Product accumulation, surge backup, unscrambling, and manual packing stations
(Final specifications vary depending on conveyor layout, product dimensions, throughput requirements, and system configuration.)
