RoboPal NB
A robotic bag palletizing system specifically designed for products with challenging stacking characteristics that require additional load stabilization during pallet formation.
The system combines robotic product handling with an integrated layer-forming palletizer to create stable, uniform pallet loads while accommodating multiple bag materials and pallet sizes. Ideal for operations requiring precise bag positioning, secure layer formation, and consistent pallet quality.
This robotic palletizing system is engineered to palletize bagged products that may be difficult to stack using conventional palletizing methods. The system utilizes a combination of robotic handling, synchronized layer formation, and controlled compression mechanisms to create stable pallet loads while maintaining product integrity throughout the palletizing process.
Designed to automatically adapt to varying pallet widths, the palletizer provides flexibility for changing pallet configurations without extensive manual adjustments. Its integrated mold-based layer forming system helps ensure precise product placement and improved load stability for challenging bagged products.
- System type: Robotic bag palletizer with integrated layer former
- Production rate: Approximately 10–14 operations per minute
- Product weight range: Approximately 22–55 lbs
- Maximum pallet height: Approximately 104 in.
- Product formats: Paper bags, plastic bags, raffia bags, and jute bags
- Robot type: P4 robotic palletizing system
- Gripper type: Synchronized opening gripper with lateral compression devices
- Layer formation: Mold-based layer forming system
- Pallet width adjustment: Automatic pneumatic-mechanical positioning
- Pallet handling: Integrated pallet extraction rollers and lifting platform
- Controls: Automated robotic palletizing control system
- Product handling: Vertical discharge into pre-layer formation zone
(Final specifications vary depending on product dimensions, throughput requirements, pallet patterns, and system configuration.)
- Robotic bag palletizing system
- Designed for difficult-to-stack products
- Integrated robotic and layer-forming palletizer
- Direct vertical product discharge into layer-forming zone
- Synchronized gripper with lateral compression system
- Automatic adaptation to varying pallet widths
- Front and side opening layer-forming mold
- Synchronized layer preparation gates
- Pneumatic-mechanical positioning systems
- Automatic pallet extraction rollers
- Integrated lifting platform
- Precise layer formation and load stabilization
- Handles paper, plastic, raffia, and jute bags
- Consistent pallet quality and load stability
- Reduced product shifting during pallet formation

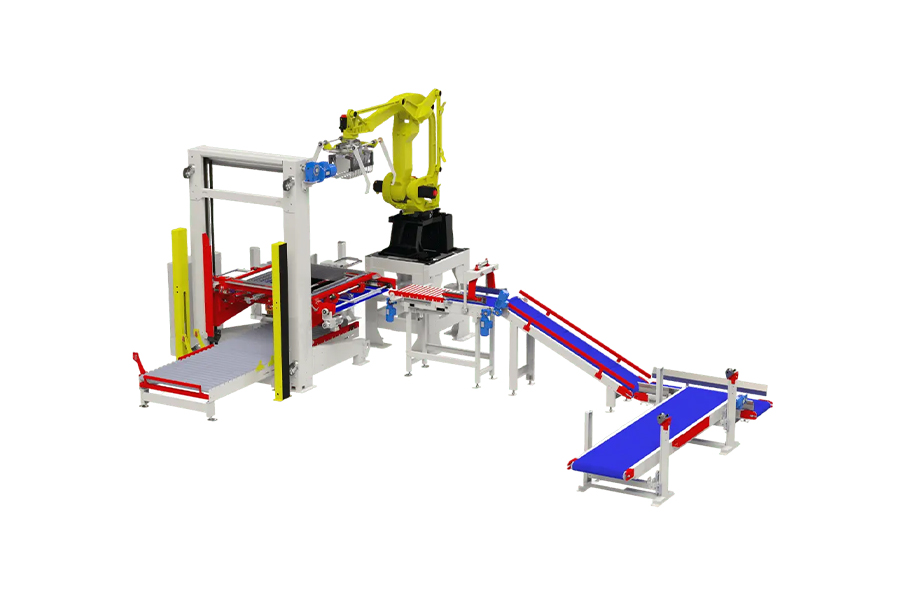

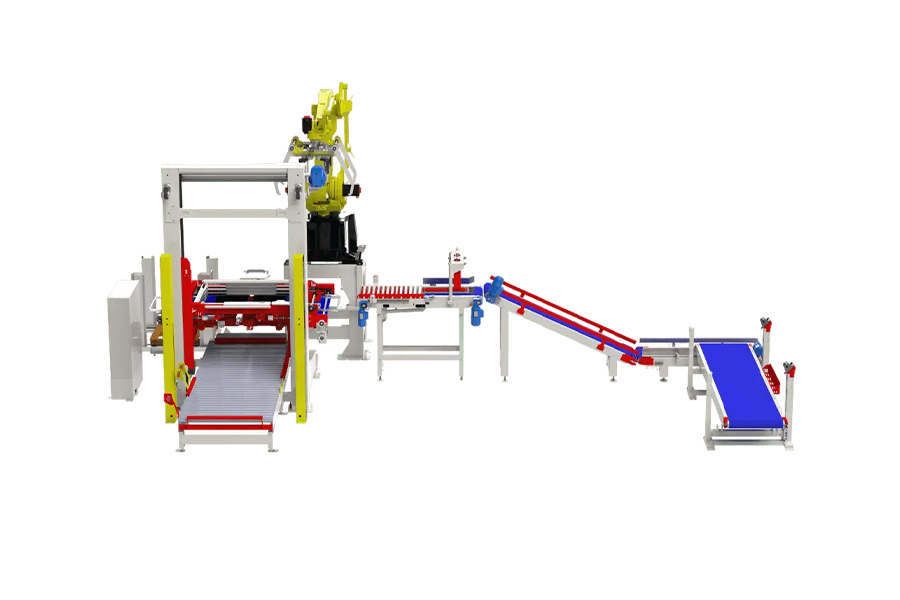

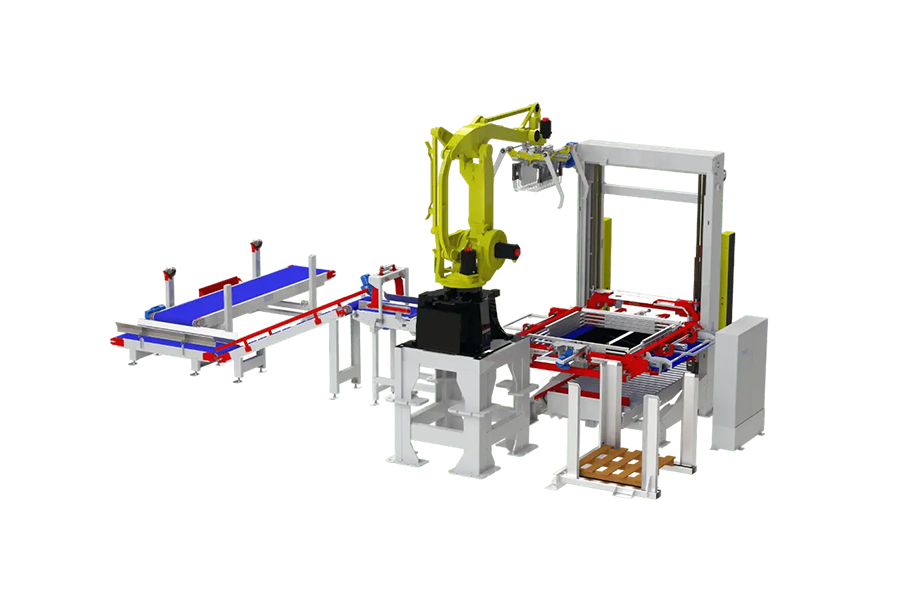

The system combines a robotic palletizer with an integrated layer-forming station that organizes products before placement onto the pallet. Products are discharged vertically into the pre-layer formation zone where synchronized gates, side restraints, and palletizing mechanisms align the bags and prepare complete layers prior to pallet placement.
A robotic gripper equipped with synchronized opening clamps and lateral compression devices provides controlled product handling while maintaining proper product positioning throughout the palletizing cycle. The layer is then formed inside a mold assembly featuring synchronized front and side opening mechanisms that allow precise layer transfer while preserving pallet pattern integrity.
The palletizer automatically adjusts to varying pallet widths through pneumatic-mechanical positioning systems and incorporates pallet extraction rollers and a lifting platform to support efficient pallet handling throughout operation. This combination of robotic handling and controlled layer formation helps improve pallet stability while accommodating products that are prone to shifting or settling.
This robotic palletizing system is engineered to palletize bagged products that may be difficult to stack using conventional palletizing methods. The system utilizes a combination of robotic handling, synchronized layer formation, and controlled compression mechanisms to create stable pallet loads while maintaining product integrity throughout the palletizing process.
Designed to automatically adapt to varying pallet widths, the palletizer provides flexibility for changing pallet configurations without extensive manual adjustments. Its integrated mold-based layer forming system helps ensure precise product placement and improved load stability for challenging bagged products.
The system combines a robotic palletizer with an integrated layer-forming station that organizes products before placement onto the pallet. Products are discharged vertically into the pre-layer formation zone where synchronized gates, side restraints, and palletizing mechanisms align the bags and prepare complete layers prior to pallet placement.
A robotic gripper equipped with synchronized opening clamps and lateral compression devices provides controlled product handling while maintaining proper product positioning throughout the palletizing cycle. The layer is then formed inside a mold assembly featuring synchronized front and side opening mechanisms that allow precise layer transfer while preserving pallet pattern integrity.
The palletizer automatically adjusts to varying pallet widths through pneumatic-mechanical positioning systems and incorporates pallet extraction rollers and a lifting platform to support efficient pallet handling throughout operation. This combination of robotic handling and controlled layer formation helps improve pallet stability while accommodating products that are prone to shifting or settling.
- Robotic bag palletizing system
- Designed for difficult-to-stack products
- Integrated robotic and layer-forming palletizer
- Direct vertical product discharge into layer-forming zone
- Synchronized gripper with lateral compression system
- Automatic adaptation to varying pallet widths
- Front and side opening layer-forming mold
- Synchronized layer preparation gates
- Pneumatic-mechanical positioning systems
- Automatic pallet extraction rollers
- Integrated lifting platform
- Precise layer formation and load stabilization
- Handles paper, plastic, raffia, and jute bags
- Consistent pallet quality and load stability
- Reduced product shifting during pallet formation
- System type: Robotic bag palletizer with integrated layer former
- Production rate: Approximately 10–14 operations per minute
- Product weight range: Approximately 22–55 lbs
- Maximum pallet height: Approximately 104 in.
- Product formats: Paper bags, plastic bags, raffia bags, and jute bags
- Robot type: P4 robotic palletizing system
- Gripper type: Synchronized opening gripper with lateral compression devices
- Layer formation: Mold-based layer forming system
- Pallet width adjustment: Automatic pneumatic-mechanical positioning
- Pallet handling: Integrated pallet extraction rollers and lifting platform
- Controls: Automated robotic palletizing control system
- Product handling: Vertical discharge into pre-layer formation zone
(Final specifications vary depending on product dimensions, throughput requirements, pallet patterns, and system configuration.)
