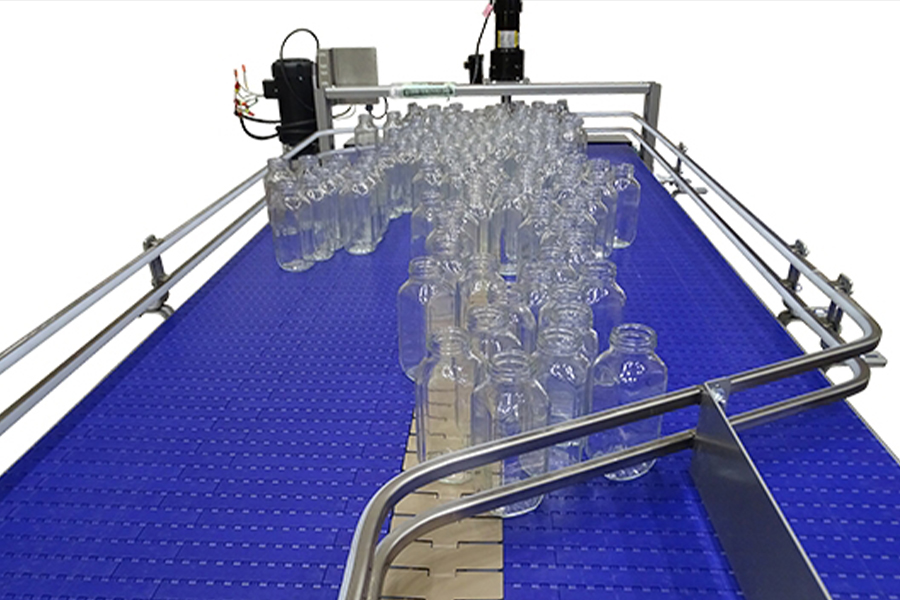

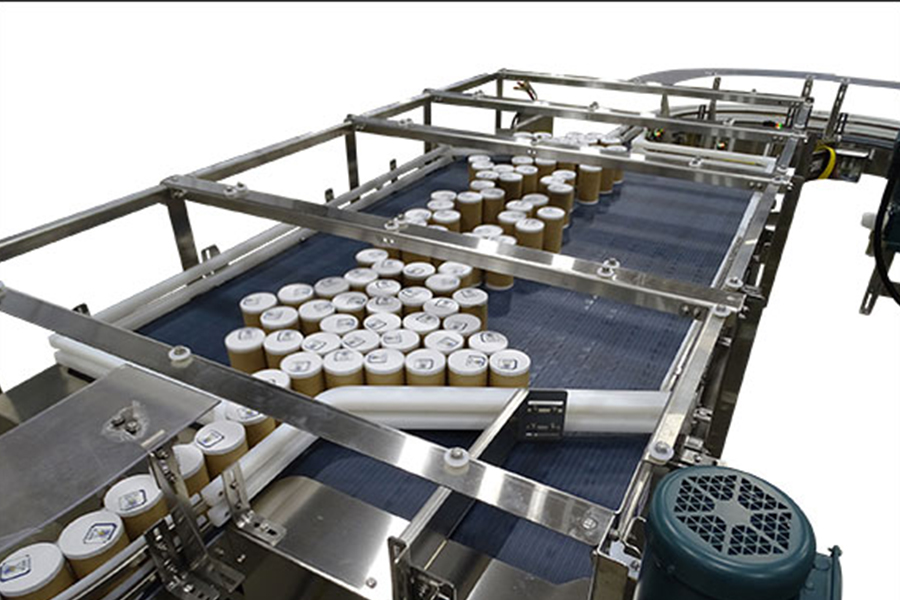

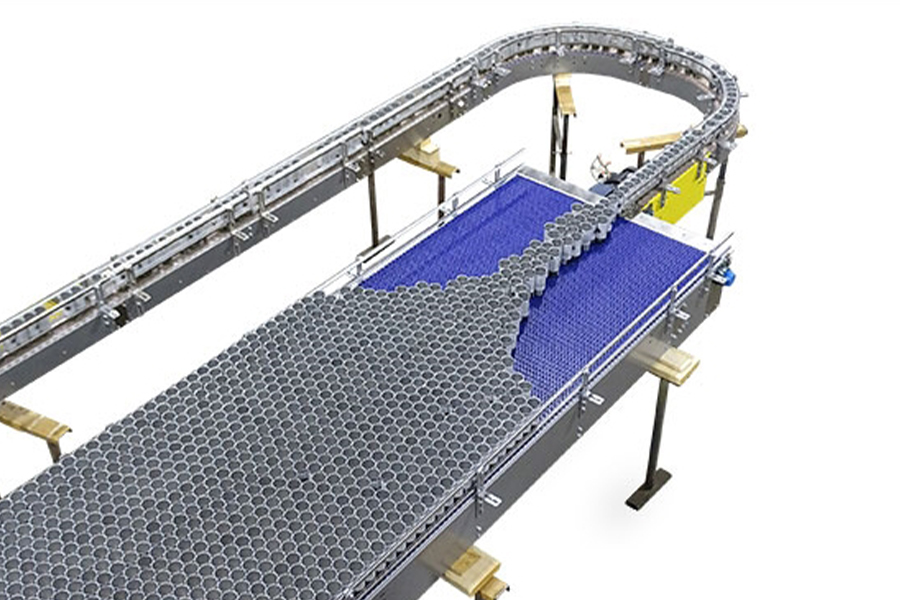

Re-Flow Accumulation Table
A recirculating accumulation conveyor system designed to provide smooth inline product accumulation and single-file discharge during downstream downtime events and line backups.
The conveyor utilizes a compact recirculating table design to maximize storage capacity while reducing product back pressure and maintaining continuous upstream production flow. Ideal for beverage, food, pharmaceutical, and packaging applications requiring efficient product buffering and accumulation control.
This re-flow accumulation conveyor system is engineered to temporarily accumulate and recirculate products during downstream pauses, changeovers, or equipment interruptions while maintaining consistent upstream production flow. The system utilizes a recirculating conveyor table with integrated single-filing functionality to combine products smoothly and discharge them in a controlled single-file arrangement.
Designed for compact industrial conveyor layouts, the accumulation table provides large storage capacity within a relatively small footprint. Its recirculating product flow design relieves accumulation pressure and minimizes product jams while supporting both round and non-round containers in high-speed packaging environments.
- Conveyor type: Recirculating accumulation conveyor table
- Belt widths available: Approximately 12 in., 18 in., 24 in., and 30 in.
- Conveyor configurations: Single-file recirculating accumulation layout
- Accumulation length: Approximately 5 ft to 20 ft in 0.5 in. increments
- Conveyor construction: 12 gauge stainless steel or powder-coated mild steel frame
- Chain configurations: 3.25 in. or 4.5 in. center pass chains
- Drive system: 1 HP or 2 HP Nord motor/reducer
- Guide rail options: Single or double high adjustable guide rails
- Product compatibility: Bottles, cans, glass containers, pucks, and irregular packages
- Applications: Beverage, packaged foods, pharmaceuticals, personal care, and contract packaging lines
(Final specifications vary depending on conveyor layout, product dimensions, throughput requirements, and system configuration.)
- Recirculating accumulation conveyor system
- Single-file product discharge functionality
- Compact footprint with large accumulation capacity
- Smooth jam-free product combining
- Handles round and non-round containers
- Recirculating product flow for accumulation pressure relief
- Maintains upstream production during downstream downtime
- Angled guide rails for product orientation control
- Optional rotating assist wheel for non-round products
- Minimal electrical control requirements
- Easily integrates into existing conveyor lines
- Modular conveyor construction for flexible layouts
- Designed for beverage, food, pharmaceutical, and packaging applications
The system utilizes dual conveyor flow paths moving in opposite directions to create a recirculating accumulation buffer zone. During downstream stoppages or slowdowns, products continue entering the table and begin recirculating within the accumulation area while upstream production equipment continues operating normally.
A unique single-filing section positioned near the discharge area controls product release and organizes containers into a smooth single-file flow for downstream equipment. The recirculating design reduces back pressure within the combining area while improving overall product handling stability and reducing the risk of product damage or line stoppages.
The accumulation table is also designed to handle irregular and non-round products through the use of angled guide rails and optional rotating assist wheels that orient products into the proper discharge position. Its modular conveyor construction allows easy installation into existing conveyor systems while supporting future production expansion and layout modifications.
This re-flow accumulation conveyor system is engineered to temporarily accumulate and recirculate products during downstream pauses, changeovers, or equipment interruptions while maintaining consistent upstream production flow. The system utilizes a recirculating conveyor table with integrated single-filing functionality to combine products smoothly and discharge them in a controlled single-file arrangement.
Designed for compact industrial conveyor layouts, the accumulation table provides large storage capacity within a relatively small footprint. Its recirculating product flow design relieves accumulation pressure and minimizes product jams while supporting both round and non-round containers in high-speed packaging environments.
The system utilizes dual conveyor flow paths moving in opposite directions to create a recirculating accumulation buffer zone. During downstream stoppages or slowdowns, products continue entering the table and begin recirculating within the accumulation area while upstream production equipment continues operating normally.
A unique single-filing section positioned near the discharge area controls product release and organizes containers into a smooth single-file flow for downstream equipment. The recirculating design reduces back pressure within the combining area while improving overall product handling stability and reducing the risk of product damage or line stoppages.
The accumulation table is also designed to handle irregular and non-round products through the use of angled guide rails and optional rotating assist wheels that orient products into the proper discharge position. Its modular conveyor construction allows easy installation into existing conveyor systems while supporting future production expansion and layout modifications.
- Recirculating accumulation conveyor system
- Single-file product discharge functionality
- Compact footprint with large accumulation capacity
- Smooth jam-free product combining
- Handles round and non-round containers
- Recirculating product flow for accumulation pressure relief
- Maintains upstream production during downstream downtime
- Angled guide rails for product orientation control
- Optional rotating assist wheel for non-round products
- Minimal electrical control requirements
- Easily integrates into existing conveyor lines
- Modular conveyor construction for flexible layouts
- Designed for beverage, food, pharmaceutical, and packaging applications
- Conveyor type: Recirculating accumulation conveyor table
- Belt widths available: Approximately 12 in., 18 in., 24 in., and 30 in.
- Conveyor configurations: Single-file recirculating accumulation layout
- Accumulation length: Approximately 5 ft to 20 ft in 0.5 in. increments
- Conveyor construction: 12 gauge stainless steel or powder-coated mild steel frame
- Chain configurations: 3.25 in. or 4.5 in. center pass chains
- Drive system: 1 HP or 2 HP Nord motor/reducer
- Guide rail options: Single or double high adjustable guide rails
- Product compatibility: Bottles, cans, glass containers, pucks, and irregular packages
- Applications: Beverage, packaged foods, pharmaceuticals, personal care, and contract packaging lines
(Final specifications vary depending on conveyor layout, product dimensions, throughput requirements, and system configuration.)
