Pallet Lifts

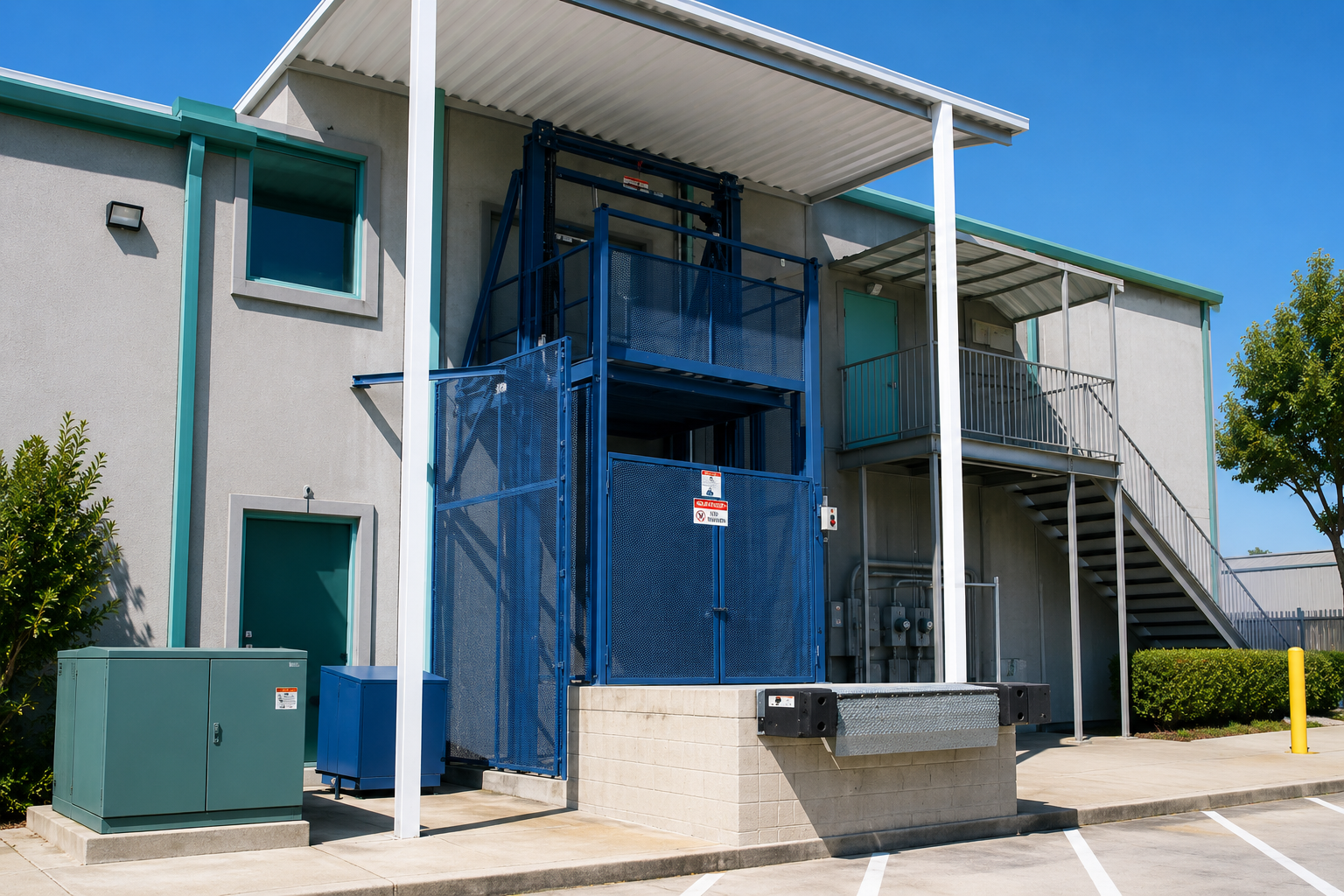

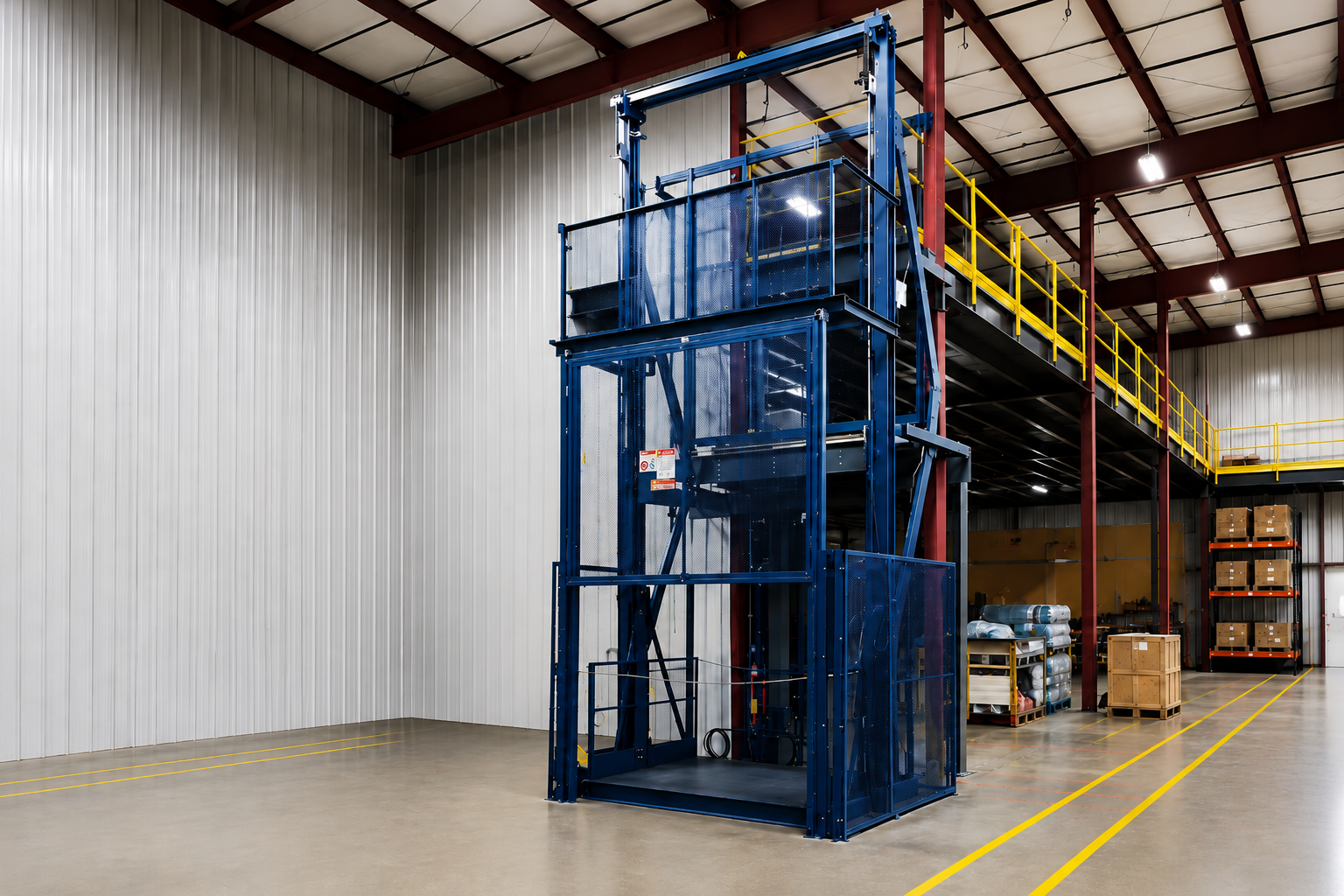

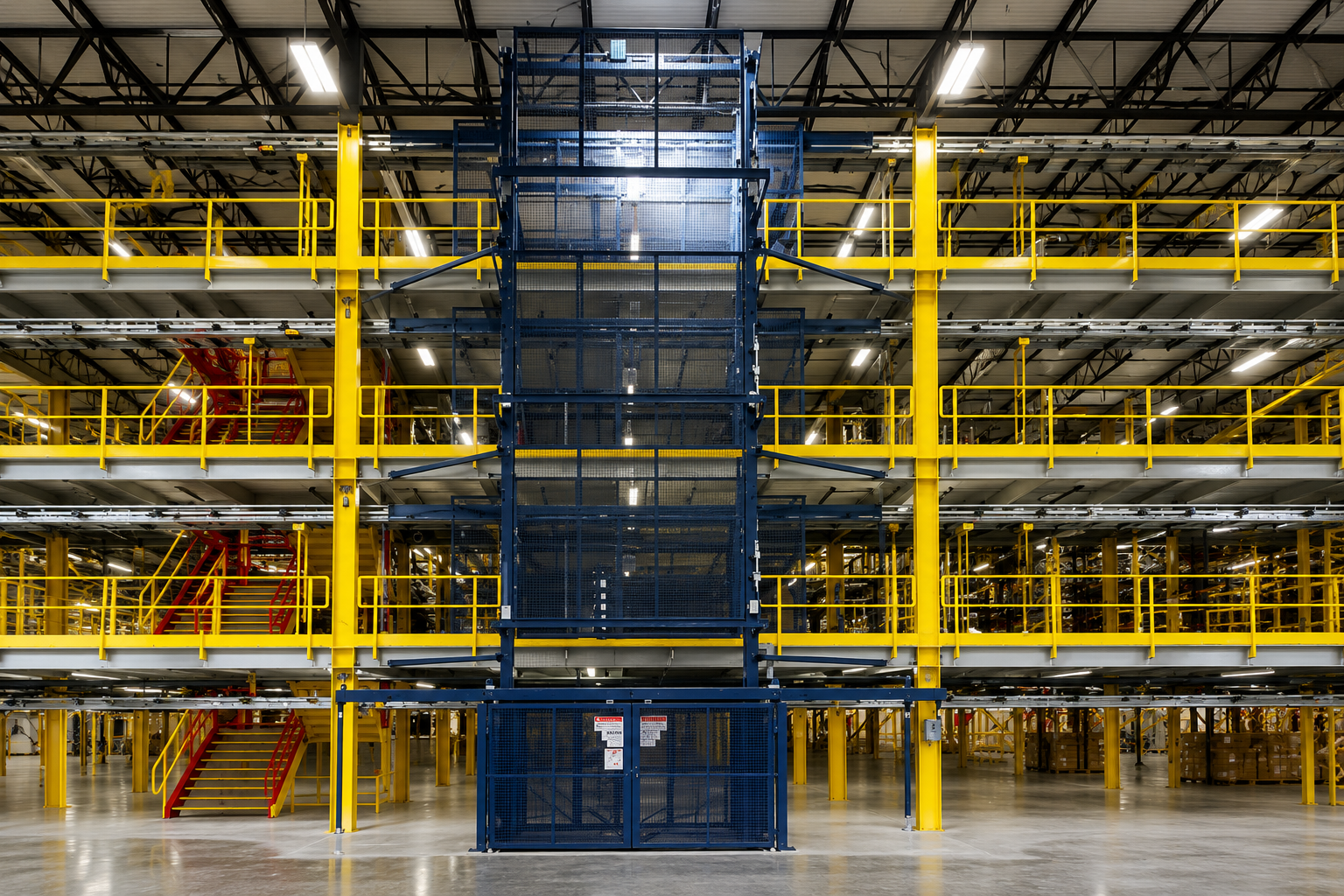

The 21 Series Hydraulic Vertical Conveyor is a heavy-duty vertical reciprocating conveyor (VRC) designed to safely move pallets, materials, and unit loads between multiple elevations within industrial facilities.
Utilizing a dual-post hydraulic lifting system with chain-over-sprocket actuation, the lift provides stable and reliable vertical transportation for loads up to approximately 6,000 lbs. The rugged structural design, level carriage operation, and indoor/outdoor capability make the system well suited for manufacturing, warehouse, mezzanine, and material handling applications.
This hydraulic vertical conveyor system is engineered to move pallets, carts, containers, and industrial materials safely between floor elevations using a two-post hydraulic lifting design. The lift utilizes synchronized hydraulic cylinders and a torsion bar system to maintain a level carriage during operation regardless of load placement, improving lifting stability and operational safety.
Designed for indoor and outdoor industrial environments, the system accommodates a wide range of load sizes and carriage configurations while maintaining smooth and controlled vertical transport. Its rugged structural steel construction and low-maintenance hydraulic design make it well suited for warehouses, manufacturing facilities, mezzanines, and material handling applications requiring reliable two-level vertical lifting.
- Conveyor type: Hydraulic vertical reciprocating conveyor (VRC)
- Load capacity: Up to approximately 6,000 lbs.
- Maximum carriage size: Approximately 12 ft × 10 ft
- Vertical rise: Up to approximately 22 ft
- Travel speed: Standard approximately 24 ft/min with speeds up to 30–35 ft/min available
- Duty cycle: Approximately 10 cycles per hour / 100 cycles per day
- Carriage configurations: Cantilever and straddle styles available
- Guide column construction: 6 in. structural wide flange columns
- Electrical requirements: 208/230/460VAC, 3 Phase standard
- Control voltage: 24VAC
- Applications: Warehousing, mezzanines, manufacturing, pallet handling, and industrial material transport
(Final specifications vary depending on carriage dimensions, load requirements, travel height, and system configuration.)
- Hydraulic vertical reciprocating conveyor system
- Two-post heavy-duty lift design
- Handles pallets, carts, containers, and industrial materials
- Synchronized dual hydraulic cylinder lifting system
- Torsion bar equalization system for level carriage movement
- Available in straddle and cantilever configurations
- Indoor and outdoor installation capability
- Smooth and controlled hydraulic lifting operation
- Pre-wired remote hydraulic control system
- Heavy-duty structural steel carriage and guide columns
- Velocity fuse and safety cam protection systems
- Optional DeckLock safety system available
- Conforms to ASME B20.1 safety standards
- Designed for warehouse, mezzanine, and manufacturing applications
The system utilizes dual hydraulic cylinders mounted to structural guide columns that raise and lower a steel carriage platform through a chain-over-sprocket lifting arrangement. A heavy-duty torsion bar mechanically links the cylinders together to equalize load distribution and ensure the carriage remains level throughout travel even with unevenly positioned loads.

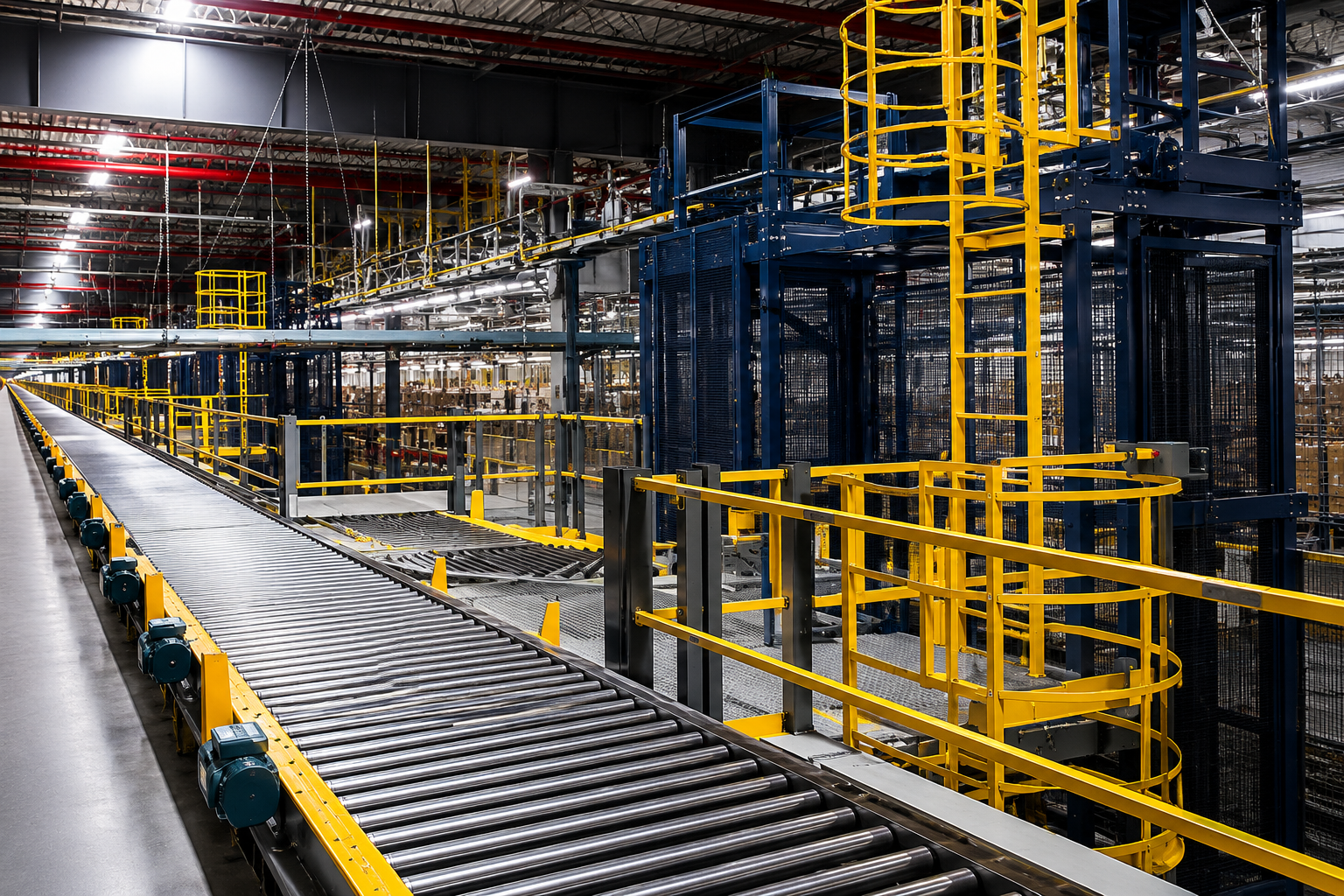

Available in both cantilever and straddle carriage configurations, the lift can be configured to accommodate different loading and unloading requirements depending on facility layout and product handling needs. The modular carriage design supports pallet handling, carts, containers, and oversized industrial loads while integrating with conveyors, pallet jacks, forklifts, and other material handling equipment.
Integrated safety systems include velocity fuses, safety cams, pressure switches, check valves, interlocked gates, and optional DeckLock safety technology to protect both personnel and materials during operation. Remote-mounted hydraulic pumps and pre-wired control panels simplify installation while minimizing maintenance requirements and reducing system downtime.
This hydraulic vertical conveyor system is engineered to move pallets, carts, containers, and industrial materials safely between floor elevations using a two-post hydraulic lifting design. The lift utilizes synchronized hydraulic cylinders and a torsion bar system to maintain a level carriage during operation regardless of load placement, improving lifting stability and operational safety.
Designed for indoor and outdoor industrial environments, the system accommodates a wide range of load sizes and carriage configurations while maintaining smooth and controlled vertical transport. Its rugged structural steel construction and low-maintenance hydraulic design make it well suited for warehouses, manufacturing facilities, mezzanines, and material handling applications requiring reliable two-level vertical lifting.
The system utilizes dual hydraulic cylinders mounted to structural guide columns that raise and lower a steel carriage platform through a chain-over-sprocket lifting arrangement. A heavy-duty torsion bar mechanically links the cylinders together to equalize load distribution and ensure the carriage remains level throughout travel even with unevenly positioned loads.
Available in both cantilever and straddle carriage configurations, the lift can be configured to accommodate different loading and unloading requirements depending on facility layout and product handling needs. The modular carriage design supports pallet handling, carts, containers, and oversized industrial loads while integrating with conveyors, pallet jacks, forklifts, and other material handling equipment.
Integrated safety systems include velocity fuses, safety cams, pressure switches, check valves, interlocked gates, and optional DeckLock safety technology to protect both personnel and materials during operation. Remote-mounted hydraulic pumps and pre-wired control panels simplify installation while minimizing maintenance requirements and reducing system downtime.
- Hydraulic vertical reciprocating conveyor system
- Two-post heavy-duty lift design
- Handles pallets, carts, containers, and industrial materials
- Synchronized dual hydraulic cylinder lifting system
- Torsion bar equalization system for level carriage movement
- Available in straddle and cantilever configurations
- Indoor and outdoor installation capability
- Smooth and controlled hydraulic lifting operation
- Pre-wired remote hydraulic control system
- Heavy-duty structural steel carriage and guide columns
- Velocity fuse and safety cam protection systems
- Optional DeckLock safety system available
- Conforms to ASME B20.1 safety standards
- Designed for warehouse, mezzanine, and manufacturing applications
- Conveyor type: Hydraulic vertical reciprocating conveyor (VRC)
- Load capacity: Up to approximately 6,000 lbs.
- Maximum carriage size: Approximately 12 ft × 10 ft
- Vertical rise: Up to approximately 22 ft
- Travel speed: Standard approximately 24 ft/min with speeds up to 30–35 ft/min available
- Duty cycle: Approximately 10 cycles per hour / 100 cycles per day
- Carriage configurations: Cantilever and straddle styles available
- Guide column construction: 6 in. structural wide flange columns
- Electrical requirements: 208/230/460VAC, 3 Phase standard
- Control voltage: 24VAC
- Applications: Warehousing, mezzanines, manufacturing, pallet handling, and industrial material transport
(Final specifications vary depending on carriage dimensions, load requirements, travel height, and system configuration.)
