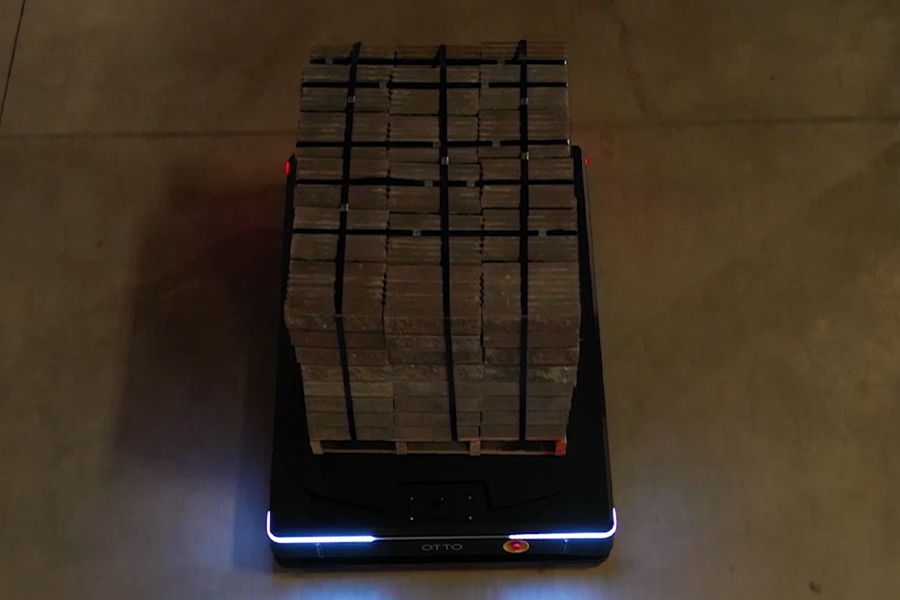

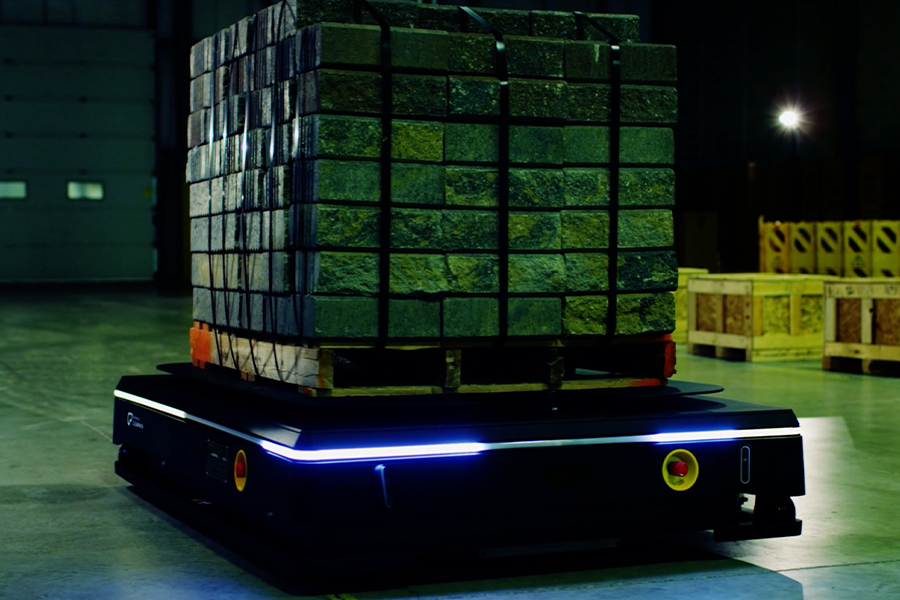

OTTO 1500

The 1500 Autonomous Mobile Robot is designed for high-capacity material transport applications requiring flexible autonomous movement throughout industrial facilities. The vehicle navigates independently using onboard sensors, laser-based localization, cameras, and fleet management software to move pallets, carts, racks, and heavy loads efficiently between operational areas. Unlike traditional fixed automation systems, the autonomous platform adapts dynamically to changing layouts, traffic conditions, and operational workflows without requiring magnetic tape, floor guides, or dedicated infrastructure.

The system supports integration with conveyor systems, palletizers, robotic work cells, warehouse software, and manufacturing execution systems to create coordinated material handling operations. Fleet management software allows multiple autonomous vehicles to communicate and optimize transport routes throughout the facility while improving throughput and reducing manual forklift traffic. Designed for industrial continuous-duty operation, the platform combines high payload capacity, fast travel speeds, intelligent safety systems, and autonomous charging capability to support demanding manufacturing and warehouse applications.

The autonomous mobile robot utilizes advanced onboard navigation and obstacle detection systems to safely maneuver throughout mixed industrial environments containing personnel, forklifts, carts, and other mobile equipment. Integrated cameras, laser scanners, and embedded sensing systems continuously monitor the surrounding environment while allowing the robot to dynamically reroute around obstacles and changing traffic conditions in real time.

The platform is capable of transporting payloads up to approximately 4,190 lbs while traveling at speeds up to approximately 4.5 MPH. Precise docking capability allows the system to interface with conveyor systems, robotic cells, pallet stations, carts, racks, and custom automation equipment with repeatable positioning accuracy. The robot utilizes a turn-in-place chassis design to improve maneuverability while operating in constrained industrial environments.

The onboard energy system utilizes autonomous opportunity charging technology to support continuous multi-shift operation while minimizing downtime. Intelligent braking systems, adaptive safety fieldsets, and redundant safety monitoring help maintain safe operation in facilities with mixed pedestrian and equipment traffic. The scalable fleet management platform allows additional autonomous vehicles to be deployed as operational requirements increase while maintaining centralized traffic coordination and task management throughout the facility.

• Heavy-duty autonomous mobile robot platform
• Self-driving industrial material transport system
• Payload capacity up to approximately 4,190 lbs
• Autonomous navigation without fixed guide paths
• Dynamic obstacle avoidance technology
• Turn-in-place chassis maneuverability
• High-accuracy docking capability available
• Intelligent braking and redundant safety monitoring
• Adaptive safety fieldsets
• Autonomous opportunity charging system
• Fleet management and traffic coordination software
• Compatible with conveyors, robotics, and automation systems
• Wireless communication and centralized monitoring
• Continuous-duty industrial operation
• Automated pickup and delivery workflows
• Scalable multi-vehicle fleet deployment
• Real-time route optimization and traffic management
• Reduces manual forklift transportation requirements

• Equipment Type: Autonomous mobile robot (AMR)
• Maximum Payload Capacity: Up to approximately 4,190 lbs
• Maximum Travel Speed: Up to approximately 4.5 MPH
• Maximum Docking Speed: Approximately 0.7 MPH
• Docking Precision: Approximately ±0.39" (X/Y) and ±10° yaw
• High Accuracy Docking Precision: Approximately ±0.20" (X/Y) and ±1° yaw with optional upgrade
• Overall Dimensions: Approximately 72.3" L x 50.5" W x 13.85" H
• Robot Weight: Approximately 1,382 lbs
• Minimum Aisle Width (One-Way): Approximately 78"
• Minimum Aisle Width (Two-Way): Approximately 146"
• Ground Clearance: Approximately 5/8"
• Traversable Gap: Approximately 5/8"
• Turning Radius: Turn-in-place capability
• Maximum Turning Speed: Approximately 90°/sec
• Suspension Type: Passive rocker suspension
• Battery Capacity: 80 Ah
• Battery Voltage: 52.8 V
• Runtime: Up to approximately 10 hours
• Charge Time: Approximately 60 minutes from 10% to 90%
• Maximum Charge Rate: 80 A
• Battery Life: Approximately 3,000 full charge cycles
• Charging System: Autonomous opportunity charging standard
• Optional Charging: Manual charging available
• Navigation System: Autonomous laser and sensor-based navigation
• Cameras: 4 integrated depth-sensing cameras
• Safety Scanners: 2 integrated 360° safety laser scanners
• Embedded Sensors: Integrated 6-axis IMU
• Computer System: Solid-state industrial computer with dedicated GPU
• Communication: WiFi 2.4 GHz / 5 GHz (802.11 a/b/g/n/ac)
• Power Interface: 24 VDC regulated and 52.8 VDC unregulated outputs
• Signal Interfaces: Ethernet, USB 3.1, HDMI, CAN Bus, GPIO
• Safety Features: Intelligent braking, adaptive safety fieldsets, redundant safety interlocks, emergency stop integration
• Compliance Standards: ANSI, ISO, CE, RIA, FCC, and industrial safety standards
• Applications: Pallet transport, cart movement, line replenishment, robotic cell support, and material handling automation

(Final specifications vary depending on payload requirements, facility layout, traffic conditions, software integration, and overall system configuration.)
