OTTO 100

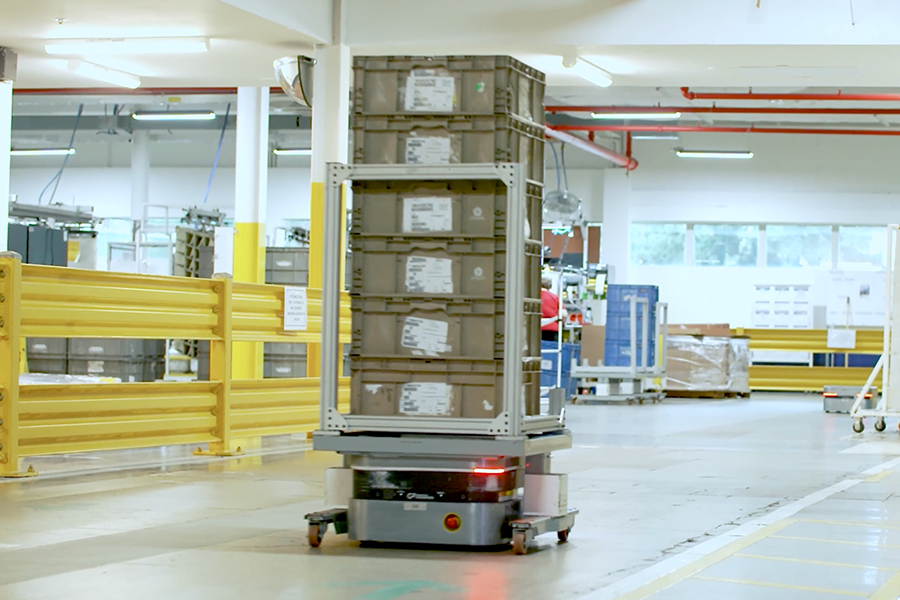

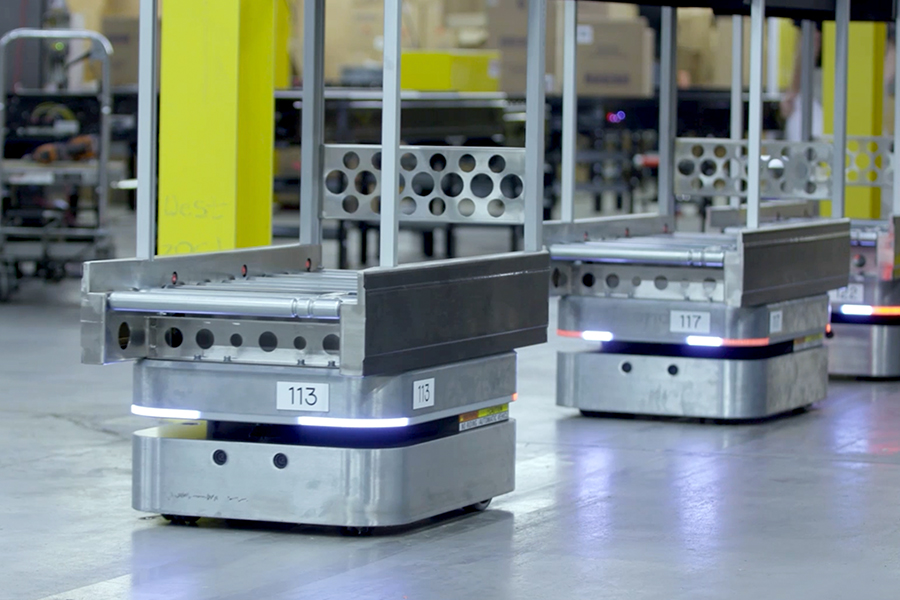

The 100 Autonomous Mobile Robot is a compact self-driving material handling vehicle designed to automate transportation of boxes, bins, carts, and lightweight materials throughout manufacturing and warehouse facilities.
Capable of handling payloads up to approximately 331 lbs, the system combines autonomous navigation, compact maneuverability, and integrated safety systems to support person-to-person material movement within demanding industrial environments. Its narrow footprint and turn-in-place capability allow efficient operation within tight workspaces and highly dynamic production areas.
The 100 Autonomous Mobile Robot is designed for lightweight autonomous material transport applications requiring flexible movement between workstations, assembly areas, storage locations, and production cells. Utilizing onboard sensors, safety scanners, 3D vision systems, and advanced autonomy software, the vehicle navigates independently throughout facilities without requiring magnetic tape, floor guides, or dedicated infrastructure.
The compact autonomous platform supports transportation of bins, totes, boxes, carts, and lightweight materials while helping reduce manual material movement and repetitive operator travel. Fleet management software allows multiple autonomous vehicles to coordinate routes and transport tasks throughout manufacturing and warehouse operations while improving workflow efficiency and floor space utilization. The rugged all-metal chassis and industrial safety systems allow the vehicle to operate safely within mixed pedestrian environments.
- Equipment Type: Autonomous mobile robot (AMR)
- Maximum Payload Capacity: Up to approximately 331 lbs
- Maximum Travel Speed: Up to approximately 4.5 MPH
- Maximum Docking Speed: Approximately 0.7 MPH
- Docking Precision: Approximately ±0.39"
- High Accuracy Docking Precision: Approximately ±0.20" with optional upgrade
- Overall Dimensions: Approximately 29.1" L x 21.7" W x 12.1" H
- Vehicle Weight: Approximately 236 lbs
- Ground Clearance: Approximately 0.25"
- Turning Radius: Turn-in-place capability
- Maximum Turning Speed: Approximately 75°/sec
- Minimum One-Way Aisle Width: Approximately 43"
- Minimum Two-Way Aisle Width: Approximately 78"
- Floor Obstacle Traversal: Approximately 0.5"
- Integrated Lift Stroke: Approximately 2.44"
- Navigation System: Laser scanner and 3D camera-based autonomous navigation
- Sensors: Safety laser scanner, 3D front camera, rear ToF sensor, and cart detection sensor
- Communication: WiFi 2.4 GHz / 5 GHz
- Interfaces: Ethernet, USB 3.0, RS-232, digital I/O, and relay outputs
- Safety Features: Integrated E-stop systems, safety-rated sensors, and obstacle detection
- Environmental Rating: IP20
- Operating Temperature: Approximately 68°F to 104°F
- Humidity Range: 0-95% non-condensing
- Applications: Box transport, cart movement, workstation replenishment, and lightweight material handling automation
(Final specifications vary depending on payload requirements, facility layout, traffic conditions, software integration, and overall system configuration.)
- Compact autonomous mobile robot platform
- Self-driving material transport system
- Payload capacity up to approximately 331 lbs
- Designed for boxes, bins, carts, and lightweight materials
- Narrow chassis footprint for tight environments
- Turn-in-place maneuverability
- Integrated lifting capability
- Autonomous navigation without fixed guide paths
- Dynamic obstacle avoidance technology
- Compatible with automation and material handling systems
- Wireless fleet communication capability
- Durable all-metal chassis construction
- Continuous-duty industrial operation
- Integrated safety scanners and vision systems
- Real-time route optimization and traffic management
- Reduces repetitive manual material transport
The autonomous mobile robot utilizes integrated laser scanners, 3D cameras, and rear sensing technology to safely maneuver throughout industrial environments containing personnel, carts, forklifts, and other mobile equipment. Intelligent obstacle detection allows the vehicle to dynamically reroute around obstructions while maintaining safe and efficient material flow throughout the operation.
The compact chassis supports payload capacities up to approximately 331 lbs while maintaining travel speeds up to approximately 4.5 MPH. Turn-in-place maneuverability and narrow aisle capability allow the robot to operate efficiently within constrained workspaces and assembly environments. An integrated lifting mechanism provides automated cart engagement and lifting capability for supported transport applications.
The onboard control system supports wireless communication, autonomous task management, and integration with facility automation systems. The vehicle’s compact design, fast travel speeds, and autonomous navigation capabilities make it well suited for repetitive person-to-person material delivery applications throughout manufacturing and warehouse operations.
The 100 Autonomous Mobile Robot is designed for lightweight autonomous material transport applications requiring flexible movement between workstations, assembly areas, storage locations, and production cells. Utilizing onboard sensors, safety scanners, 3D vision systems, and advanced autonomy software, the vehicle navigates independently throughout facilities without requiring magnetic tape, floor guides, or dedicated infrastructure.
The compact autonomous platform supports transportation of bins, totes, boxes, carts, and lightweight materials while helping reduce manual material movement and repetitive operator travel. Fleet management software allows multiple autonomous vehicles to coordinate routes and transport tasks throughout manufacturing and warehouse operations while improving workflow efficiency and floor space utilization. The rugged all-metal chassis and industrial safety systems allow the vehicle to operate safely within mixed pedestrian environments.
The autonomous mobile robot utilizes integrated laser scanners, 3D cameras, and rear sensing technology to safely maneuver throughout industrial environments containing personnel, carts, forklifts, and other mobile equipment. Intelligent obstacle detection allows the vehicle to dynamically reroute around obstructions while maintaining safe and efficient material flow throughout the operation.
The compact chassis supports payload capacities up to approximately 331 lbs while maintaining travel speeds up to approximately 4.5 MPH. Turn-in-place maneuverability and narrow aisle capability allow the robot to operate efficiently within constrained workspaces and assembly environments. An integrated lifting mechanism provides automated cart engagement and lifting capability for supported transport applications.
The onboard control system supports wireless communication, autonomous task management, and integration with facility automation systems. The vehicle’s compact design, fast travel speeds, and autonomous navigation capabilities make it well suited for repetitive person-to-person material delivery applications throughout manufacturing and warehouse operations.
- Compact autonomous mobile robot platform
- Self-driving material transport system
- Payload capacity up to approximately 331 lbs
- Designed for boxes, bins, carts, and lightweight materials
- Narrow chassis footprint for tight environments
- Turn-in-place maneuverability
- Integrated lifting capability
- Autonomous navigation without fixed guide paths
- Dynamic obstacle avoidance technology
- Compatible with automation and material handling systems
- Wireless fleet communication capability
- Durable all-metal chassis construction
- Continuous-duty industrial operation
- Integrated safety scanners and vision systems
- Real-time route optimization and traffic management
- Reduces repetitive manual material transport
- Equipment Type: Autonomous mobile robot (AMR)
- Maximum Payload Capacity: Up to approximately 331 lbs
- Maximum Travel Speed: Up to approximately 4.5 MPH
- Maximum Docking Speed: Approximately 0.7 MPH
- Docking Precision: Approximately ±0.39"
- High Accuracy Docking Precision: Approximately ±0.20" with optional upgrade
- Overall Dimensions: Approximately 29.1" L x 21.7" W x 12.1" H
- Vehicle Weight: Approximately 236 lbs
- Ground Clearance: Approximately 0.25"
- Turning Radius: Turn-in-place capability
- Maximum Turning Speed: Approximately 75°/sec
- Minimum One-Way Aisle Width: Approximately 43"
- Minimum Two-Way Aisle Width: Approximately 78"
- Floor Obstacle Traversal: Approximately 0.5"
- Integrated Lift Stroke: Approximately 2.44"
- Navigation System: Laser scanner and 3D camera-based autonomous navigation
- Sensors: Safety laser scanner, 3D front camera, rear ToF sensor, and cart detection sensor
- Communication: WiFi 2.4 GHz / 5 GHz
- Interfaces: Ethernet, USB 3.0, RS-232, digital I/O, and relay outputs
- Safety Features: Integrated E-stop systems, safety-rated sensors, and obstacle detection
- Environmental Rating: IP20
- Operating Temperature: Approximately 68°F to 104°F
- Humidity Range: 0-95% non-condensing
- Applications: Box transport, cart movement, workstation replenishment, and lightweight material handling automation
(Final specifications vary depending on payload requirements, facility layout, traffic conditions, software integration, and overall system configuration.)
