Nexus Palletizer
Track-Mounted Robotic Palletizers combine the flexibility of robotic palletizing with the extended reach of a servo-driven linear track, allowing a single robot to service multiple production lines and palletizing stations.
Designed for high-throughput end-of-line operations, the system maximizes floor space utilization while reducing capital equipment costs by eliminating the need for multiple dedicated robots. The modular design provides a scalable solution capable of accommodating changing production demands and future expansion.
A Track-Mounted Robotic Palletizer is designed to automate palletizing operations across multiple production lines using a single robot traveling along a precision linear rail system. By allowing the robot to move between several palletizing cells, the system increases equipment utilization while reducing the overall system footprint and investment compared to standalone robotic palletizers.
The system can be configured to service multiple case packers, conveyor lines, or packaging systems while supporting a wide variety of case sizes, tray styles, bundles, and other unit loads. Integrated pallet handling, pallet dispensers, slip sheet dispensers, and stretch wrapping systems can be incorporated to create a complete end-of-line palletizing solution tailored to specific production requirements.
- Equipment Type: Track-mounted robotic palletizer
- Robot Configuration: Six-axis industrial robot on servo-driven linear track
- Product Types: Cases, cartons, trays, bundles, totes, and packaged products
- Pallet Types: GMA, CHEP, Euro, and custom pallet sizes
- Throughput: Up to approximately 35 picks per minute (application dependent)
- Track Length: Custom lengths available based on system layout
- Number of Palletizing Stations: Multiple stations served by a single robot
- End Effectors: Vacuum, clamp, fork, layer, and custom gripper designs available
- Pattern Capability: Unlimited programmable pallet patterns
- Controls: PLC with color touchscreen HMI
- Safety System: Perimeter guarding, light curtains, safety scanners, and interlocked access doors
- Electrical Requirements: 230/460V, 3 Phase, 60 Hz
- Air Requirements: Approximately 80 PSI clean, dry compressed air
- Integration Capability: Compatible with conveyors, pallet dispensers, transfer cars, stretch wrappers, AGVs/AMRs, and warehouse automation systems
- Optional Features: Slip sheet dispensers, pallet inspection, label verification, barcode scanning, vision systems, and remote diagnostics
(Final specifications vary depending on product dimensions, payload requirements, throughput requirements, robot selection, and overall system configuration.)
- Servo-driven track-mounted robotic palletizer
- Single robot services multiple palletizing stations
- High-throughput end-of-line palletizing
- Six-axis industrial robotic arm
- Precision linear rail travel system
- Automatic pallet pattern generation
- Multiple product and package handling capability
- Flexible case orientation and rotation
- Simultaneous multi-line palletizing
- Integrated pallet handling capability
- Optional pallet dispensers and slip sheet systems
- Compatible with stretch wrapping systems
- PLC and HMI controlled operation
- Advanced safety guarding and access controls
- Modular design for future expansion
- Designed for continuous-duty industrial operation

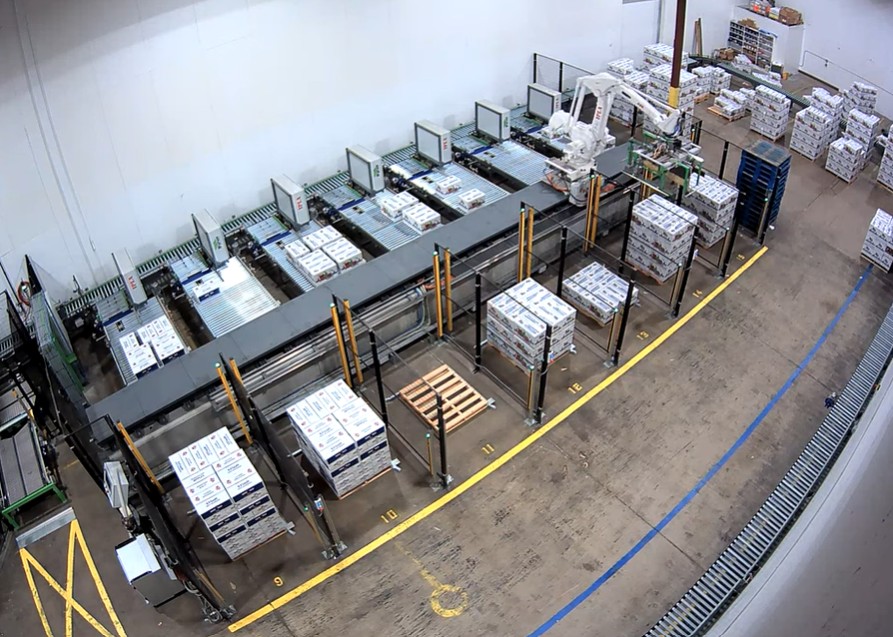

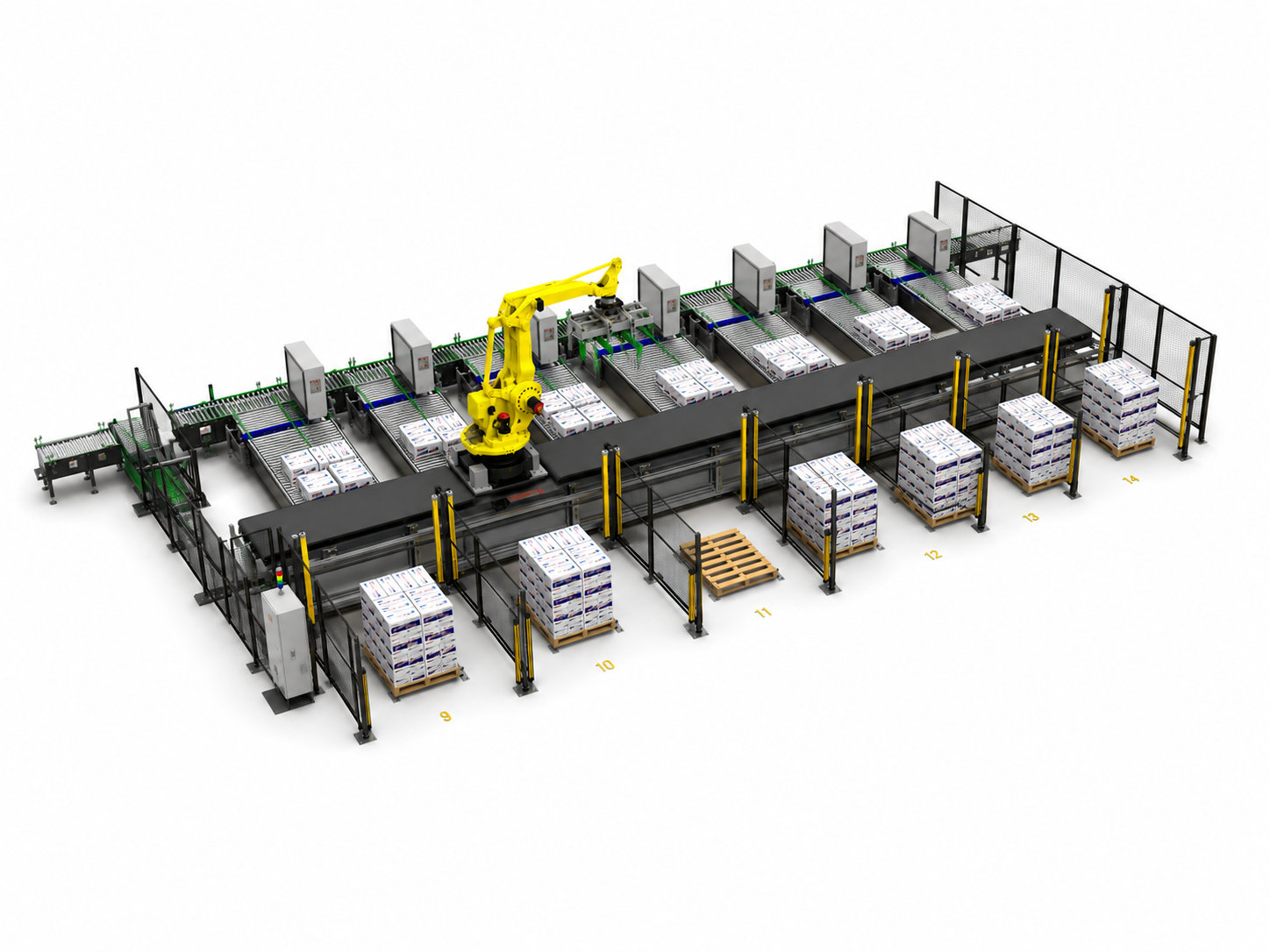

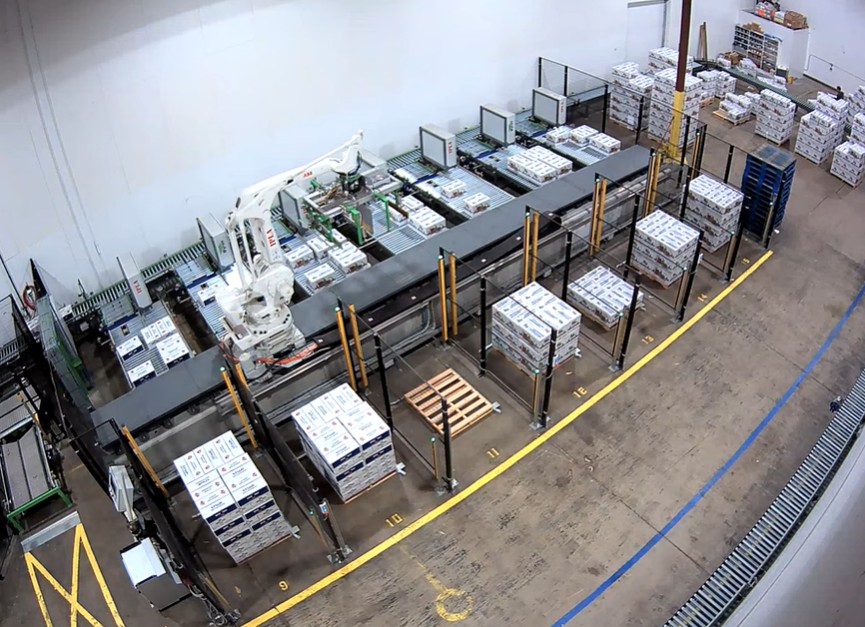

The system utilizes a six-axis industrial robot mounted to a servo-driven linear track, significantly increasing the robot's working envelope and allowing it to travel between multiple palletizing stations. Intelligent controls automatically prioritize incoming product, optimize robot travel, and manage pallet building sequences to maximize throughput while maintaining smooth and reliable operation.
Each palletizing station can be equipped with its own layer accumulation conveyor, pallet positioning area, and pallet discharge conveyor, allowing the robot to build multiple pallet loads simultaneously. Depending on production requirements, the system can accommodate a wide range of pallet patterns, product orientations, and load configurations while maintaining precise product placement throughout the palletizing process.
The modular design allows additional palletizing stations, conveyor lines, pallet dispensers, stretch wrappers, transfer cars, and pallet handling equipment to be integrated as production requirements grow. This scalability provides manufacturers with a flexible automation platform capable of adapting to changing product mixes and future facility expansions.
A Track-Mounted Robotic Palletizer is designed to automate palletizing operations across multiple production lines using a single robot traveling along a precision linear rail system. By allowing the robot to move between several palletizing cells, the system increases equipment utilization while reducing the overall system footprint and investment compared to standalone robotic palletizers.
The system can be configured to service multiple case packers, conveyor lines, or packaging systems while supporting a wide variety of case sizes, tray styles, bundles, and other unit loads. Integrated pallet handling, pallet dispensers, slip sheet dispensers, and stretch wrapping systems can be incorporated to create a complete end-of-line palletizing solution tailored to specific production requirements.
The system utilizes a six-axis industrial robot mounted to a servo-driven linear track, significantly increasing the robot's working envelope and allowing it to travel between multiple palletizing stations. Intelligent controls automatically prioritize incoming product, optimize robot travel, and manage pallet building sequences to maximize throughput while maintaining smooth and reliable operation.
Each palletizing station can be equipped with its own layer accumulation conveyor, pallet positioning area, and pallet discharge conveyor, allowing the robot to build multiple pallet loads simultaneously. Depending on production requirements, the system can accommodate a wide range of pallet patterns, product orientations, and load configurations while maintaining precise product placement throughout the palletizing process.
The modular design allows additional palletizing stations, conveyor lines, pallet dispensers, stretch wrappers, transfer cars, and pallet handling equipment to be integrated as production requirements grow. This scalability provides manufacturers with a flexible automation platform capable of adapting to changing product mixes and future facility expansions.
- Servo-driven track-mounted robotic palletizer
- Single robot services multiple palletizing stations
- High-throughput end-of-line palletizing
- Six-axis industrial robotic arm
- Precision linear rail travel system
- Automatic pallet pattern generation
- Multiple product and package handling capability
- Flexible case orientation and rotation
- Simultaneous multi-line palletizing
- Integrated pallet handling capability
- Optional pallet dispensers and slip sheet systems
- Compatible with stretch wrapping systems
- PLC and HMI controlled operation
- Advanced safety guarding and access controls
- Modular design for future expansion
- Designed for continuous-duty industrial operation
- Equipment Type: Track-mounted robotic palletizer
- Robot Configuration: Six-axis industrial robot on servo-driven linear track
- Product Types: Cases, cartons, trays, bundles, totes, and packaged products
- Pallet Types: GMA, CHEP, Euro, and custom pallet sizes
- Throughput: Up to approximately 35 picks per minute (application dependent)
- Track Length: Custom lengths available based on system layout
- Number of Palletizing Stations: Multiple stations served by a single robot
- End Effectors: Vacuum, clamp, fork, layer, and custom gripper designs available
- Pattern Capability: Unlimited programmable pallet patterns
- Controls: PLC with color touchscreen HMI
- Safety System: Perimeter guarding, light curtains, safety scanners, and interlocked access doors
- Electrical Requirements: 230/460V, 3 Phase, 60 Hz
- Air Requirements: Approximately 80 PSI clean, dry compressed air
- Integration Capability: Compatible with conveyors, pallet dispensers, transfer cars, stretch wrappers, AGVs/AMRs, and warehouse automation systems
- Optional Features: Slip sheet dispensers, pallet inspection, label verification, barcode scanning, vision systems, and remote diagnostics
(Final specifications vary depending on product dimensions, payload requirements, throughput requirements, robot selection, and overall system configuration.)
