Narrow Belt Accumulation
A narrow belt live roller conveyor system designed to provide quiet, energy-efficient, and non-contact zero pressure accumulation for cartons and packaged products.
The conveyor utilizes independently controlled motorized zones to maintain smooth product flow while reducing noise, energy consumption, and maintenance requirements. Ideal for packaging, warehouse, and distribution applications requiring reliable accumulation and controlled product handling.
This narrow belt live roller conveyor system is engineered to transport and accumulate cartons, totes, and packaged products using independently controlled motorized conveyor zones. Products accumulate without contact, preventing bumping, skewing, and jams while maintaining smooth and predictable conveyor flow throughout operation.
Designed for automated material handling and distribution environments, the conveyor utilizes run-on-demand technology that activates conveyor zones only when needed to advance product. This reduces energy consumption, minimizes conveyor wear, lowers operating noise, and extends conveyor service life.
- Conveyor type: Narrow belt live roller accumulation conveyor

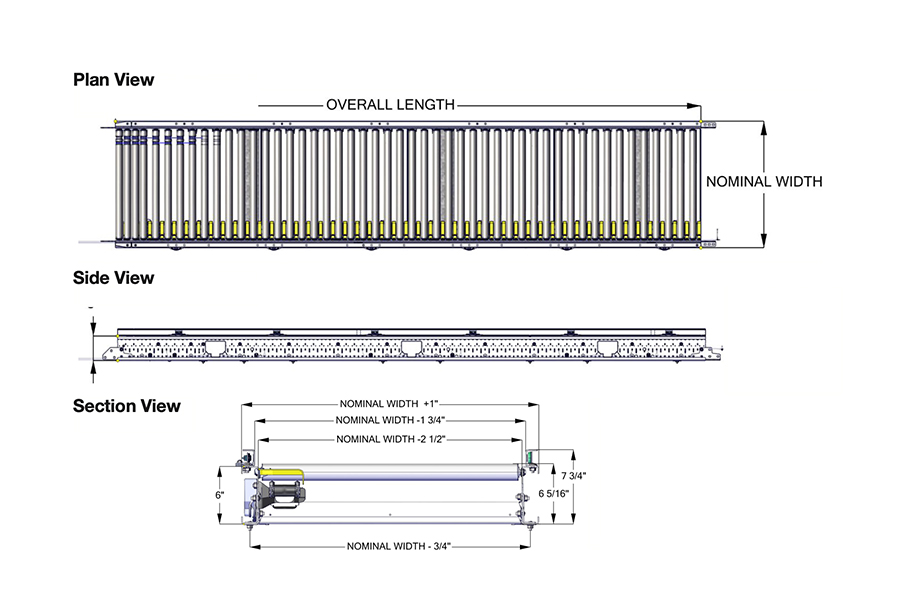

- Conveyor frame: 6 in. deep × 10 gauge conveyor frame
- Accumulation zone lengths: Approximately 24 in. or 36 in.
- Roller diameter: Approximately 1.875 in.
- Roller construction: 16 gauge galvanized rollers
- Drive system: 24VDC brushless motor driven roller
- Conveyor speeds available: Approximately 148 ft/min and 197 ft/min
- Conveyor operation: Run-on-demand zero pressure accumulation

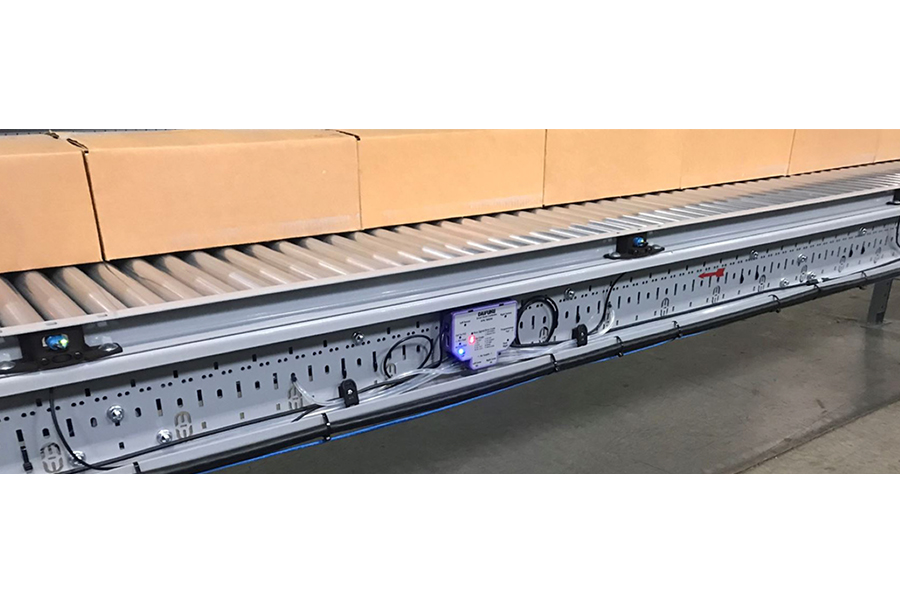

- Product sensing: Side-mounted 24VDC polarized retro-reflective photo-eye sensors
- Finish: Conductive light gray powder-coated finish
- Applications: Packaging, accumulation, palletizing, warehouse, and distribution systems
(Final specifications vary depending on conveyor layout, product dimensions, throughput requirements, and system configuration.)
- Narrow belt live roller conveyor technology
- Non-contact zero pressure accumulation
- Run-on-demand conveyor zones for reduced energy consumption
- Quiet low-noise conveyor operation
- Handles cartons, totes, slave pallets, and packaged products
- Prevents product bumping, skewing, and jams
- Independently controlled accumulation zones
- High-speed conveyor performance
- Low-maintenance 24VDC brushless motor driven rollers
- Photo-eye controlled product sensing
- Conductive powder-coated frame to reduce static build-up
- Modular conveyor design for flexible layouts and future expansion
- Compatible with automated packaging and material handling systems
The system utilizes 24VDC brushless motor-driven rollers paired with photo-eye controlled accumulation zones to create non-contact zero pressure accumulation. Products are automatically released and advanced through the conveyor line without touching adjacent products, improving product handling reliability and downstream equipment performance.
Its narrow belt live roller design allows the conveyor to handle mixed product types including cartons, totes, and slave pallets even when there are significant differences in product weights. Side-mounted photo-eye sensors monitor product presence while intelligent zone controls regulate conveyor movement and accumulation behavior.
The conveyor incorporates conductive axle isolators and conductive powder-coated conveyor frames designed to reduce operational noise, minimize static build-up, and improve long-term durability. The modular conveyor architecture allows the system to integrate into packaging, sortation, palletizing, warehouse, and distribution conveyor systems.
This narrow belt live roller conveyor system is engineered to transport and accumulate cartons, totes, and packaged products using independently controlled motorized conveyor zones. Products accumulate without contact, preventing bumping, skewing, and jams while maintaining smooth and predictable conveyor flow throughout operation.
Designed for automated material handling and distribution environments, the conveyor utilizes run-on-demand technology that activates conveyor zones only when needed to advance product. This reduces energy consumption, minimizes conveyor wear, lowers operating noise, and extends conveyor service life.
The system utilizes 24VDC brushless motor-driven rollers paired with photo-eye controlled accumulation zones to create non-contact zero pressure accumulation. Products are automatically released and advanced through the conveyor line without touching adjacent products, improving product handling reliability and downstream equipment performance.
Its narrow belt live roller design allows the conveyor to handle mixed product types including cartons, totes, and slave pallets even when there are significant differences in product weights. Side-mounted photo-eye sensors monitor product presence while intelligent zone controls regulate conveyor movement and accumulation behavior.
The conveyor incorporates conductive axle isolators and conductive powder-coated conveyor frames designed to reduce operational noise, minimize static build-up, and improve long-term durability. The modular conveyor architecture allows the system to integrate into packaging, sortation, palletizing, warehouse, and distribution conveyor systems.
- Narrow belt live roller conveyor technology
- Non-contact zero pressure accumulation
- Run-on-demand conveyor zones for reduced energy consumption
- Quiet low-noise conveyor operation
- Handles cartons, totes, slave pallets, and packaged products
- Prevents product bumping, skewing, and jams
- Independently controlled accumulation zones
- High-speed conveyor performance
- Low-maintenance 24VDC brushless motor driven rollers
- Photo-eye controlled product sensing
- Conductive powder-coated frame to reduce static build-up
- Modular conveyor design for flexible layouts and future expansion
- Compatible with automated packaging and material handling systems
- Conveyor type: Narrow belt live roller accumulation conveyor
- Conveyor frame: 6 in. deep × 10 gauge conveyor frame
- Accumulation zone lengths: Approximately 24 in. or 36 in.
- Roller diameter: Approximately 1.875 in.
- Roller construction: 16 gauge galvanized rollers
- Drive system: 24VDC brushless motor driven roller
- Conveyor speeds available: Approximately 148 ft/min and 197 ft/min
- Conveyor operation: Run-on-demand zero pressure accumulation
- Product sensing: Side-mounted 24VDC polarized retro-reflective photo-eye sensors
- Finish: Conductive light gray powder-coated finish
- Applications: Packaging, accumulation, palletizing, warehouse, and distribution systems
(Final specifications vary depending on conveyor layout, product dimensions, throughput requirements, and system configuration.)
