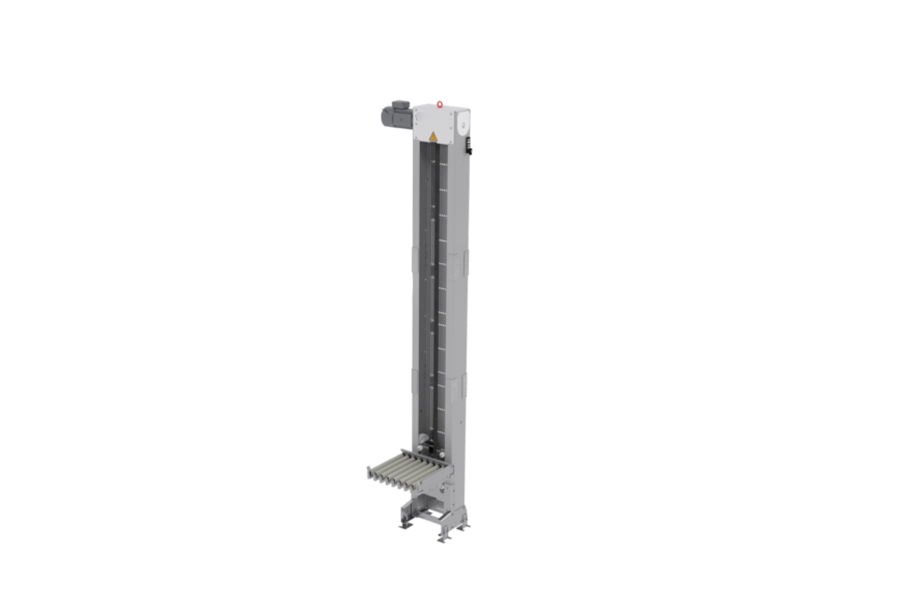

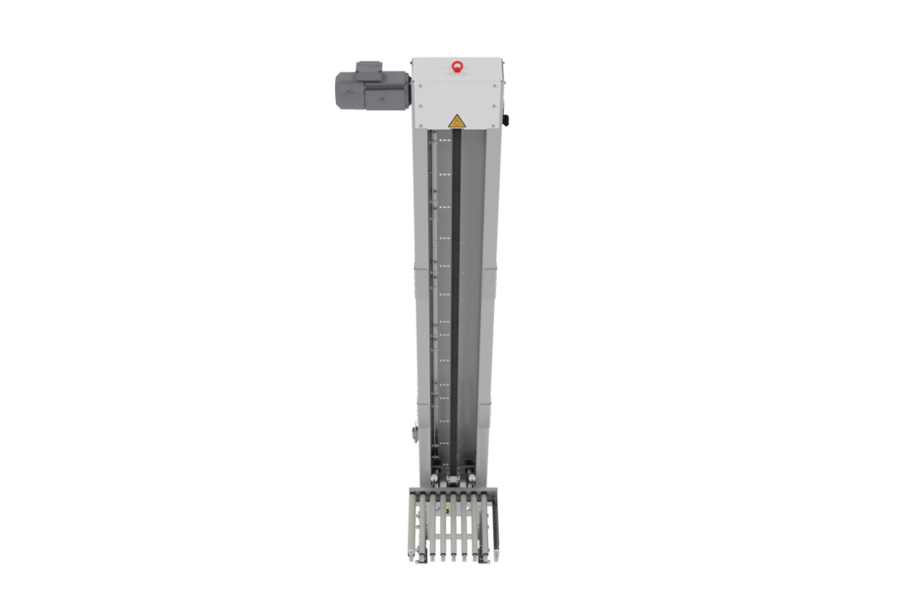

MK1 Lift
A compact vertical conveyor system designed to efficiently elevate and lower products between multiple conveyor levels while minimizing floor space requirements.
The modular design allows flexible integration into existing conveyor systems and supports a wide range of product handling applications. Ideal for production and distribution environments requiring reliable vertical product transport with low maintenance operation.
This vertical conveyor system is engineered to transport products between elevations using a compact reciprocating platform design optimized for flexible conveyor integration. Its modular construction allows the system to adapt easily to different production environments while supporting multiple conveyor carrier options including roller conveyors, belt conveyors, and custom product handling platforms.
Designed for flexibility and durability, the system accommodates varying infeed and discharge heights while maintaining smooth and controlled product movement throughout operation. The compact footprint and customizable configuration make it well suited for manufacturing, packaging, warehousing, and distribution facilities requiring efficient vertical product handling.
- Conveyor type: Reciprocating vertical conveyor
- Lowest infeed/discharge height: Approximately 14 in.
- Maximum infeed/discharge height: Approximately 555 in.
- Maximum column height: Approximately 47 ft
- Product carrier options: Roller conveyor, driven roller conveyor, belt conveyor, and custom configurations
- Maximum product weight: Approximately 220 lbs.
- Maximum product dimensions: Approximately 36 × 24 in.
- Maximum throughput: Approximately 400 products per hour
- Required floor space: Approximately 20 × 35 in.
- Drive system: 0.55 kW SEW drive motor
- Construction: Modular industrial steel frame
(Final specifications vary depending on product dimensions, conveyor configuration, throughput requirements, and system layout.)
- Compact reciprocating vertical conveyor system
- Modular design for flexible conveyor integration
- Supports roller conveyors, belt conveyors, and custom carrier platforms
- Freely configurable infeed and discharge heights
- Can function as a vertical sorter with multiple levels
- Compact footprint for efficient floor space utilization
- Smooth and controlled vertical product movement
- Durable low-maintenance industrial construction
- Suitable for production, packaging, warehousing, and distribution applications
- Compatible with automated conveyor and material handling systems
- Optional guarding and custom conveyor carrier configurations available

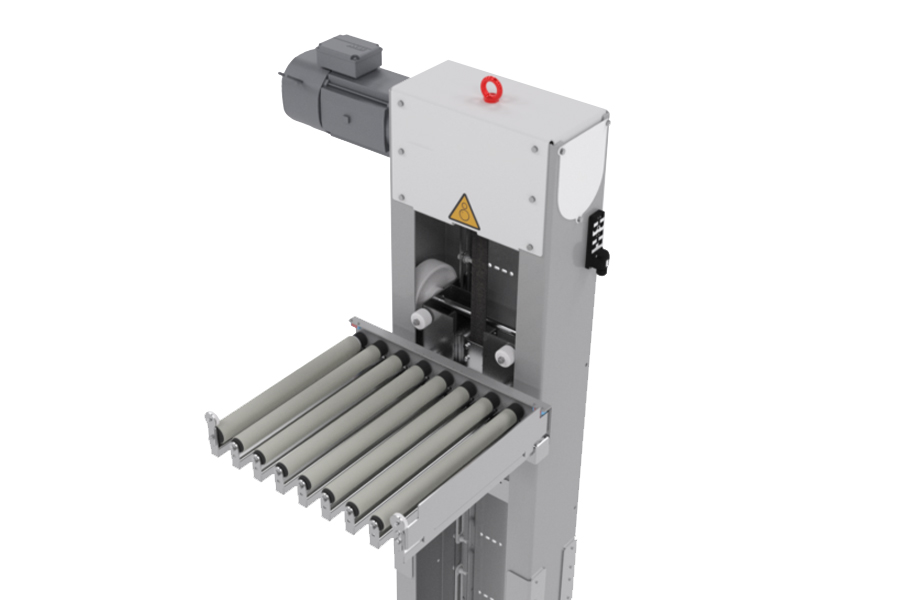

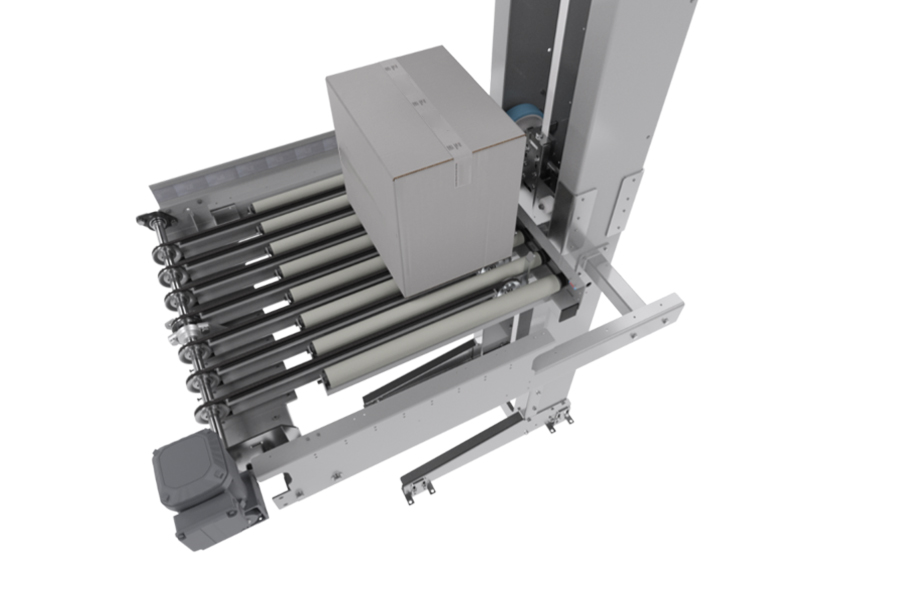

The system utilizes a vertically moving conveyor platform that transfers products between different elevations using a guided lift mechanism and integrated conveyor carrier. Depending on the application, the carrier platform can utilize standard roller conveyors, driven rollers, belt conveyors, or other custom transport systems to match surrounding conveyor layouts and product handling requirements.
Its modular architecture allows facilities to configure multiple infeed and discharge elevations, enabling the system to function as both a vertical conveyor and a vertical sorting solution. The freely configurable height arrangement simplifies integration into multi-level conveyor systems while supporting future production changes and layout expansion.
The conveyor is constructed using durable low-maintenance components designed for continuous industrial operation. Optional guarding systems, custom conveyor carriers, and additional automation features allow the system to be tailored for specific production, packaging, and distribution applications.
This vertical conveyor system is engineered to transport products between elevations using a compact reciprocating platform design optimized for flexible conveyor integration. Its modular construction allows the system to adapt easily to different production environments while supporting multiple conveyor carrier options including roller conveyors, belt conveyors, and custom product handling platforms.
Designed for flexibility and durability, the system accommodates varying infeed and discharge heights while maintaining smooth and controlled product movement throughout operation. The compact footprint and customizable configuration make it well suited for manufacturing, packaging, warehousing, and distribution facilities requiring efficient vertical product handling.
The system utilizes a vertically moving conveyor platform that transfers products between different elevations using a guided lift mechanism and integrated conveyor carrier. Depending on the application, the carrier platform can utilize standard roller conveyors, driven rollers, belt conveyors, or other custom transport systems to match surrounding conveyor layouts and product handling requirements.
Its modular architecture allows facilities to configure multiple infeed and discharge elevations, enabling the system to function as both a vertical conveyor and a vertical sorting solution. The freely configurable height arrangement simplifies integration into multi-level conveyor systems while supporting future production changes and layout expansion.
The conveyor is constructed using durable low-maintenance components designed for continuous industrial operation. Optional guarding systems, custom conveyor carriers, and additional automation features allow the system to be tailored for specific production, packaging, and distribution applications.
- Compact reciprocating vertical conveyor system
- Modular design for flexible conveyor integration
- Supports roller conveyors, belt conveyors, and custom carrier platforms
- Freely configurable infeed and discharge heights
- Can function as a vertical sorter with multiple levels
- Compact footprint for efficient floor space utilization
- Smooth and controlled vertical product movement
- Durable low-maintenance industrial construction
- Suitable for production, packaging, warehousing, and distribution applications
- Compatible with automated conveyor and material handling systems
- Optional guarding and custom conveyor carrier configurations available
- Conveyor type: Reciprocating vertical conveyor
- Lowest infeed/discharge height: Approximately 14 in.
- Maximum infeed/discharge height: Approximately 555 in.
- Maximum column height: Approximately 47 ft
- Product carrier options: Roller conveyor, driven roller conveyor, belt conveyor, and custom configurations
- Maximum product weight: Approximately 220 lbs.
- Maximum product dimensions: Approximately 36 × 24 in.
- Maximum throughput: Approximately 400 products per hour
- Required floor space: Approximately 20 × 35 in.
- Drive system: 0.55 kW SEW drive motor
- Construction: Modular industrial steel frame
(Final specifications vary depending on product dimensions, conveyor configuration, throughput requirements, and system layout.)
