Lambda Palletizer
A high-speed robotic palletizing system designed to automate complex pallet pattern formation with flexible box handling and automatic format adjustment.
The system combines intelligent grouping technology with a versatile robotic gripper to maintain stable pallet loads across varying box sizes and packaging conditions. Ideal for facilities requiring high-throughput palletizing with advanced pattern flexibility and minimal changeover downtime.
This robotic palletizing system is engineered to automate the stacking of boxes and packaged products using a high-speed grouping conveyor and articulated robotic palletizing cell. Products are rotated, aligned, and grouped prior to pallet placement, allowing the system to create highly versatile pallet patterns while maintaining stable and repeatable load formation.
Designed for high-throughput production environments, the palletizer supports automatic format changes and multiple palletizing line configurations without extensive mechanical adjustments. Its comb-and-plate gripper system securely lifts products from below while stabilizing them from the sides, allowing the system to palletize variable box sizes and handle imperfectly sealed cartons without compromising pallet quality.
- System type: Robotic palletizer
- Production capacity: Up to approximately 50 boxes per minute per line
- Palletizing lines: Up to 2 lines
- Pattern versatility: Approximately 90%
- Infeed height range: Approximately 31–94 in.
- Robot payload capacity: Approximately 588 lbs.
- Maximum packet size handled: Approximately 24 × 47 in.
- Pallet compatibility: Approximately 48 × 32 in. and 48 × 40 in. pallets
- Machine footprint: Approximately 228–315 in. L × 228–236 in. W
- Controls: Touchscreen HMI with programmable pallet pattern software
- Construction: Heavy-duty industrial steel robotic palletizing cell
(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
- Fully automatic robotic palletizing operation
- High-speed grouping conveyor with box rotation capability
- Automatic format and pallet pattern adjustment
- Comb-and-plate robotic gripper for stable product handling
- Supports variable box sizes and imperfectly sealed cartons
- Creation of controlled gaps between boxes for advanced pallet patterns
- Up to two palletizing lines supported
- Touchscreen pallet pattern generation and production interface
- Integrated production monitoring and diagnostic controls
- Optional interlayer dispensing system available
- Optional barcode reading and self-adjusting centering systems available
- Remote Wi-Fi diagnostics and support capability available
- Designed for continuous high-speed industrial palletizing applications

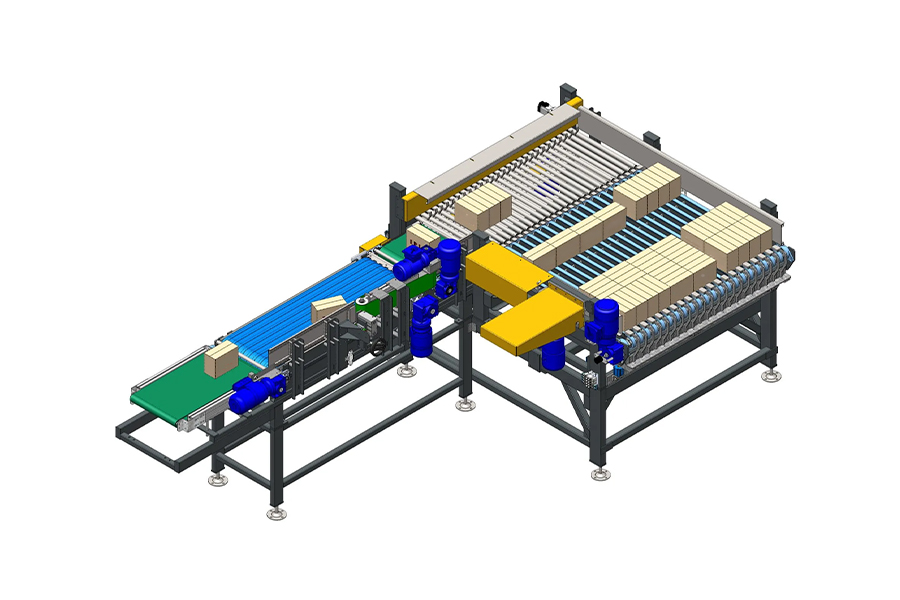

Products enter the palletizing system through a high-speed grouping conveyor equipped with rotational alignment capability that automatically positions boxes according to the selected pallet pattern. The forming table can create controlled gaps between boxes within each row, increasing pattern versatility and improving overall pallet stability.

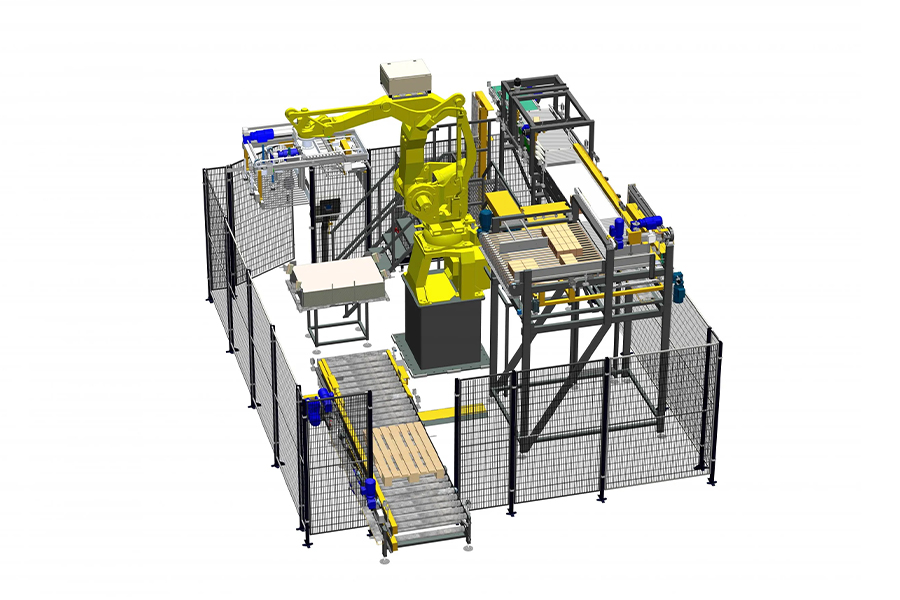

Once a complete layer or grouping is prepared, the articulated robotic arm retrieves the products using a comb-and-plate gripper assembly designed to lift boxes from beneath while simultaneously securing them along the sides. This gripping method maintains product stability during transfer and accommodates variations in box dimensions and sealing conditions.
The integrated touchscreen software interface allows operators to configure pallet patterns, generate new palletizing recipes, monitor production statistics, and manually control all cell functions without requiring direct robot programming. Optional accessories such as interlayer dispensing systems, self-adjusting centering guides, barcode readers, and remote Wi-Fi diagnostics further expand the system’s automation and operational flexibility.
This robotic palletizing system is engineered to automate the stacking of boxes and packaged products using a high-speed grouping conveyor and articulated robotic palletizing cell. Products are rotated, aligned, and grouped prior to pallet placement, allowing the system to create highly versatile pallet patterns while maintaining stable and repeatable load formation.
Designed for high-throughput production environments, the palletizer supports automatic format changes and multiple palletizing line configurations without extensive mechanical adjustments. Its comb-and-plate gripper system securely lifts products from below while stabilizing them from the sides, allowing the system to palletize variable box sizes and handle imperfectly sealed cartons without compromising pallet quality.
Products enter the palletizing system through a high-speed grouping conveyor equipped with rotational alignment capability that automatically positions boxes according to the selected pallet pattern. The forming table can create controlled gaps between boxes within each row, increasing pattern versatility and improving overall pallet stability.
Once a complete layer or grouping is prepared, the articulated robotic arm retrieves the products using a comb-and-plate gripper assembly designed to lift boxes from beneath while simultaneously securing them along the sides. This gripping method maintains product stability during transfer and accommodates variations in box dimensions and sealing conditions.
The integrated touchscreen software interface allows operators to configure pallet patterns, generate new palletizing recipes, monitor production statistics, and manually control all cell functions without requiring direct robot programming. Optional accessories such as interlayer dispensing systems, self-adjusting centering guides, barcode readers, and remote Wi-Fi diagnostics further expand the system’s automation and operational flexibility.
- Fully automatic robotic palletizing operation
- High-speed grouping conveyor with box rotation capability
- Automatic format and pallet pattern adjustment
- Comb-and-plate robotic gripper for stable product handling
- Supports variable box sizes and imperfectly sealed cartons
- Creation of controlled gaps between boxes for advanced pallet patterns
- Up to two palletizing lines supported
- Touchscreen pallet pattern generation and production interface
- Integrated production monitoring and diagnostic controls
- Optional interlayer dispensing system available
- Optional barcode reading and self-adjusting centering systems available
- Remote Wi-Fi diagnostics and support capability available
- Designed for continuous high-speed industrial palletizing applications
- System type: Robotic palletizer
- Production capacity: Up to approximately 50 boxes per minute per line
- Palletizing lines: Up to 2 lines
- Pattern versatility: Approximately 90%
- Infeed height range: Approximately 31–94 in.
- Robot payload capacity: Approximately 588 lbs.
- Maximum packet size handled: Approximately 24 × 47 in.
- Pallet compatibility: Approximately 48 × 32 in. and 48 × 40 in. pallets
- Machine footprint: Approximately 228–315 in. L × 228–236 in. W
- Controls: Touchscreen HMI with programmable pallet pattern software
- Construction: Heavy-duty industrial steel robotic palletizing cell
(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
