Horto Palletizer

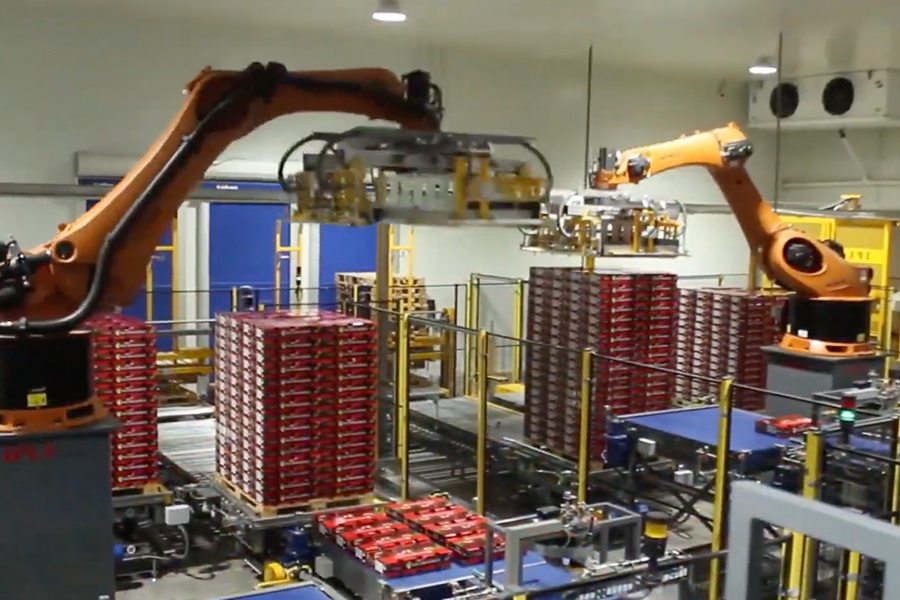

This robotic palletizing system utilizes an articulated robotic arm combined with a pressure-assisted clamp gripper to automate palletizing and depalletizing operations for a wide range of box styles and package formats. The system is designed to provide flexible product handling while maintaining accurate pallet placement and stable load formation throughout operation.

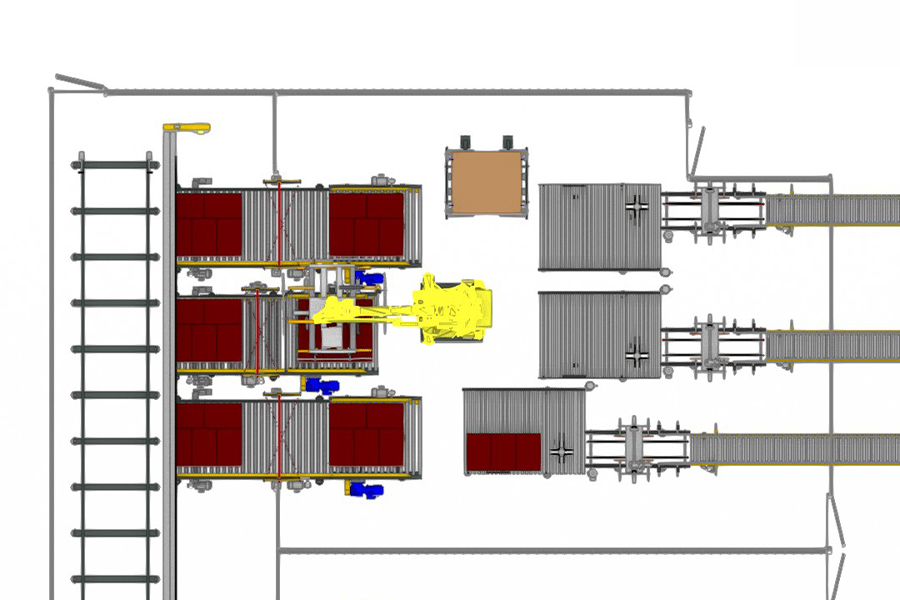

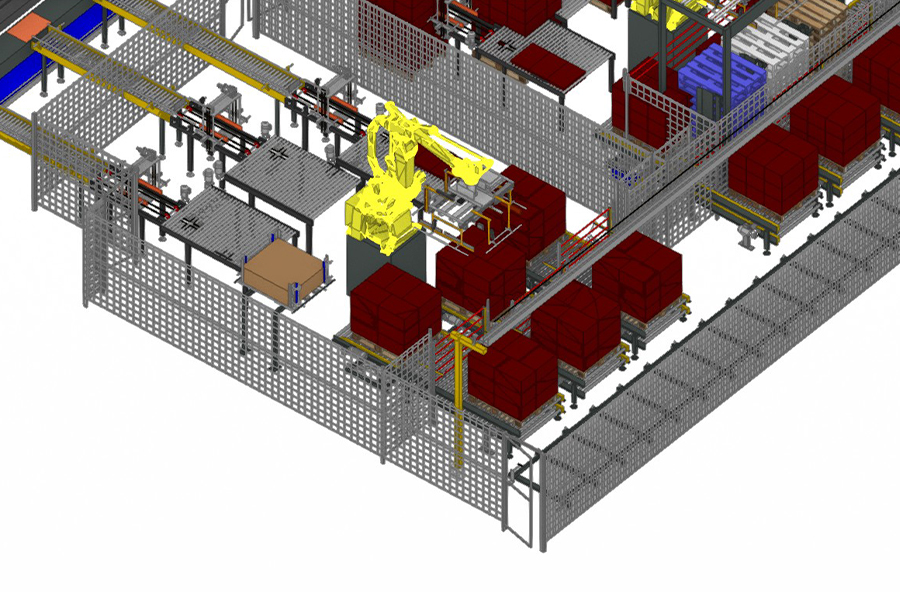

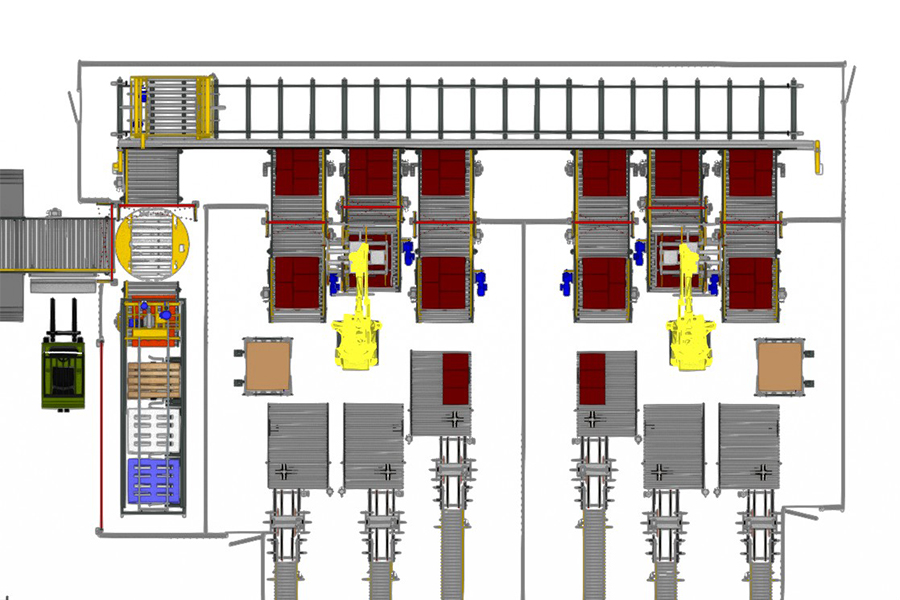

Designed for demanding end-of-line environments, the palletizer accommodates multiple pallet patterns, box dimensions, and stacking configurations including chimney stacking and variable product layouts. Its modular robotic cell design allows the system to integrate with auxiliary equipment such as pallet handling systems, pattern-forming tables, and interlayer handling devices to support fully automated palletizing operations.

Products enter the robotic palletizing cell through an infeed conveyor where they are grouped and positioned according to programmed pallet patterns. The articulated robotic arm then retrieves the products using a pressurized clamp or comb-style gripper designed to securely stabilize loads during transfer and pallet placement.

The robotic system can be programmed to handle multiple product types and pallet configurations without requiring extensive mechanical adjustments. Depending on application requirements, auxiliary systems such as pallet dispensers, pattern-forming tables, centering guides, and interlayer dispensers can be integrated into the robotic cell to improve pallet stability and increase automation capabilities.

Its touchscreen software interface allows operators to generate pallet patterns, monitor production statistics, and control all palletizing functions directly from the HMI without requiring manual robot programming. The flexible robotic architecture and compact footprint make the system suitable for facilities requiring adaptable palletizing solutions with future expansion potential.

• Fully automatic robotic palletizing and depalletizing operation
• Articulated robotic arm with pressure-assisted clamp gripper
• Supports multiple pallet patterns and stacking configurations
• Handles boxes, cartons, trays, and packaged products
• Capable of chimney stacking and variable pallet layouts
• Touchscreen pallet pattern generation and operator interface
• Integrated production monitoring and diagnostic controls
• Optional pallet handling and interlayer dispensing systems available
• Flexible robotic cell design for customized applications
• Compact industrial footprint with modular expansion capability
• Designed for continuous operation with minimal maintenance requirements
• Remote Wi-Fi support and diagnostics capability available

• System type: Robotic palletizer
• Production capacity: Up to approximately 15 boxes per minute
• Robot type: Articulated robotic arm
• Product compatibility: Boxes, cartons, trays, and packaged products
• Pallet sizes supported: Approximately 48 × 32 in. and 48 × 40 in. pallets
• Maximum palletizing height: Up to approximately 94 in. depending on configuration
• Payload capacity: Approximately 220 lbs.
• Controls: Touchscreen HMI with programmable pallet pattern software
• Construction: Heavy-duty industrial steel frame and robotic cell structure
• Optional configurations: Interlayer dispenser, pallet handling systems, centering guides, and automated transport systems available

(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
