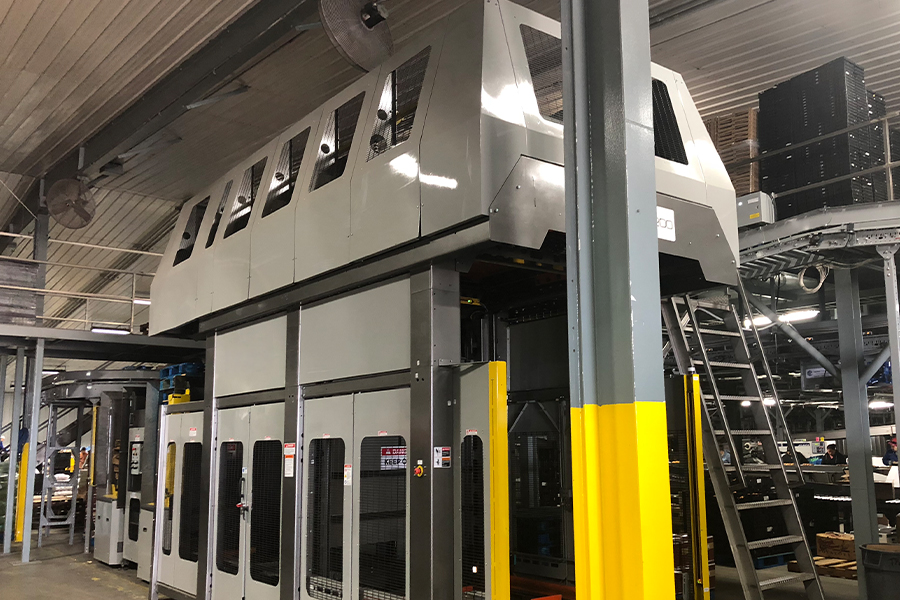

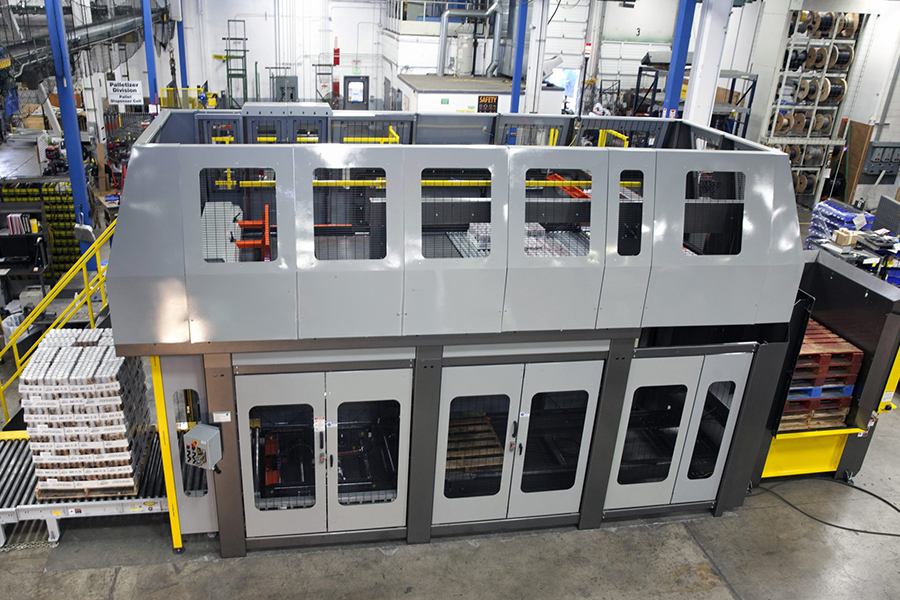

HL-6200 Palletizer

This high-level palletizer is engineered to automate the palletizing process by elevating products to a layer-forming section where rows and complete layers are created before being deposited onto a pallet. The system is designed for high-speed operation and supports a wide range of package types while maintaining stable and repeatable pallet formation.

Designed for flexibility and performance, the palletizer accommodates multiple product sizes, pallet configurations, and production requirements within a compact industrial footprint. Its modular construction and advanced controls allow the system to integrate into both new and existing end-of-line packaging operations while supporting future expansion and throughput increases.

Products enter the palletizer through an elevated infeed conveyor where they are arranged into rows and organized into complete layers using coordinated row-forming and layer-forming mechanisms. Once a layer is completed, a transfer apron deposits the layer onto the pallet in a controlled manner to maintain load integrity and alignment throughout the palletizing process.

The system utilizes programmable controls and pattern management software to allow operators to create, modify, and store pallet configurations for different product types and packaging formats. Integrated diagnostics, machine status monitoring, and automated safety systems improve operational visibility while reducing downtime and simplifying troubleshooting.

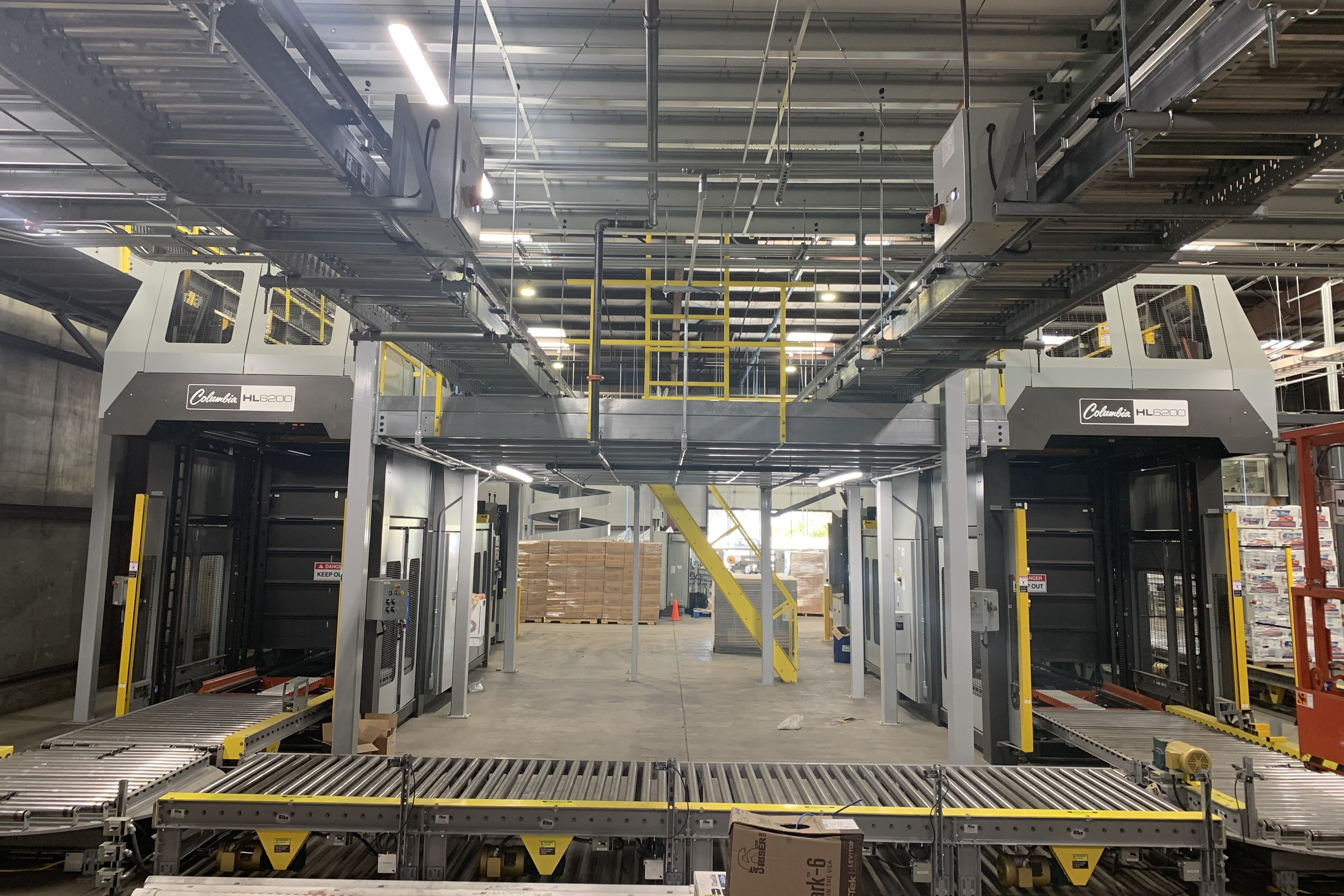

Its modular layout supports optional dual infeed arrangements, inline configurations, pallet handling accessories, and future speed upgrades to meet changing production requirements. The compact design allows facilities to maximize throughput while minimizing floor space compared to many conventional floor-level palletizing systems.

• Fully automatic high-level palletizing operation
• High-speed row-forming and layer-forming system
• Supports multiple pallet patterns and product configurations
• Compact footprint for improved floor space utilization
• Programmable pallet pattern management interface
• Automated layer transfer and pallet placement system
• Modular design for future expansion and speed upgrades
• Integrated safety guarding and Category 3 safety systems
• Fallen case detection and machine diagnostic monitoring
• Suitable for cartons, trays, shrink bundles, bags, and packaged products
• Designed for continuous high-throughput industrial operation

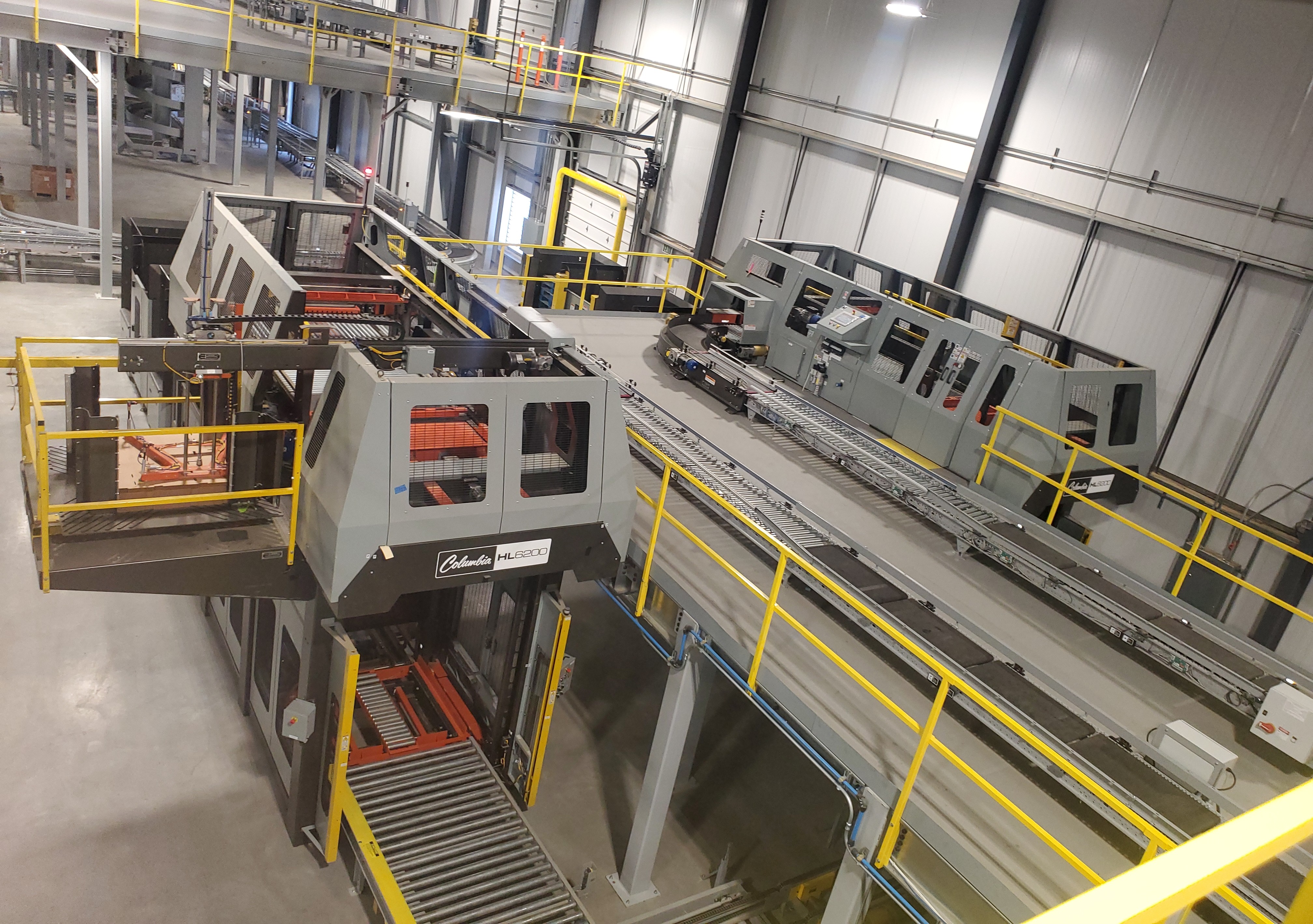

• Flexible inline and dual infeed configurations available

• System type: High-level automatic palletizer
• Production capacity: Up to approximately 120 cases per minute depending on product and pattern configuration
• Product compatibility: Cartons, trays, bundles, bags, and packaged goods
• Infeed elevation height: Approximately 110–145 in.
• Palletizing method: Row-forming and complete layer transfer
• Controls: PLC and touchscreen HMI pattern management system
• Safety system: Category 3 guarding and integrated safety controls
• Layout options: Inline, dual infeed, and modular configurations available
• Construction: Heavy-duty industrial steel frame and conveyor components

(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
