Gripper Rinser
The Gripper Rinser Conveyor is a high-speed inline bottle rinsing system designed for continuous cleaning and elevation handling of bottles and containers within automated production lines.
Utilizing dual moving gripper belts with soft neoprene grippers, the system gently and securely handles glass, plastic, and fiber containers while performing liquid or ionized air rinsing operations at speeds up to approximately 1,000 bottles per minute. Its compact vertical handling design allows simultaneous product rinsing and elevation changes while minimizing required production floor space.
The Gripper Rinser Conveyor is designed for continuous inline rinsing applications requiring high-speed container handling and reliable product control throughout the rinsing process. The system utilizes dual side-gripping conveyor belts that securely hold containers while transporting them through elevation changes and rinsing operations. The gentle gripping action helps maintain product stability and orientation while minimizing container damage during high-speed operation.
The conveyor system supports liquid rinsing and ionized air rinsing applications for bottles and containers commonly used in beverage, food, pharmaceutical, and consumer product packaging operations. Multiple system configurations are available including down swing, up swing, down slope, and air rinsing models depending on production layout and application requirements. The compact vertical design allows facilities to maximize floor space utilization while integrating rinsing functionality directly into the conveyor line.
- Equipment Type: Gripper rinser conveyor system
- Conveyor Style: Dual side-gripping belt conveyor
- Product Types: Glass bottles, plastic bottles, fiber containers, cans, and containers
- Maximum Throughput: Up to approximately 1,000 bottles per minute (2" diameter bottles)
- Conveyor Speed: Up to approximately 150 FPM standard
- Product Handling: Continuous-motion container transport
- Gripper Material: Soft neoprene side grippers
- Width Adjustment: Single handwheel adjustment system
- Standard Width Adjustment Range: Approximately 0" to 8"
- Construction: Stainless steel industrial frame
- Conveyor Configurations: Up swing, down swing, down slope, air rinsing, and wedge elevator configurations
- Rinsing Options: Liquid rinsing or ionized air rinsing
- Elevation Capability: Vertical product elevation and lowering
- Floor Space Requirement: Approximately 2'-4" x 9" typical footprint
- Controls Integration: Compatible with automated conveyor and packaging systems
- Applications: Bottle rinsing, depalletizing discharge, filling line integration, and container handling
(Final specifications vary depending on container dimensions, throughput requirements, rinsing applications, elevation changes, and overall system configuration.)
- High-speed inline bottle rinsing system
- Continuous-motion container handling
- Dual side-gripping conveyor design
- Soft neoprene grippers for gentle product handling
- Supports liquid and ionized air rinsing applications
- Handles glass, plastic, and fiber containers
- Compact vertical elevation handling design
- Adjustable handwheel width adjustment
- Continuous inline rinsing operation
- Stainless steel construction
- Multiple conveyor configurations available
- Up swing, down swing, and down slope configurations available
- Vacuum and centrifugal drying options available
- Compatible with bottling and packaging lines
- Designed for high-speed continuous-duty operation
- Minimal production floor space requirements

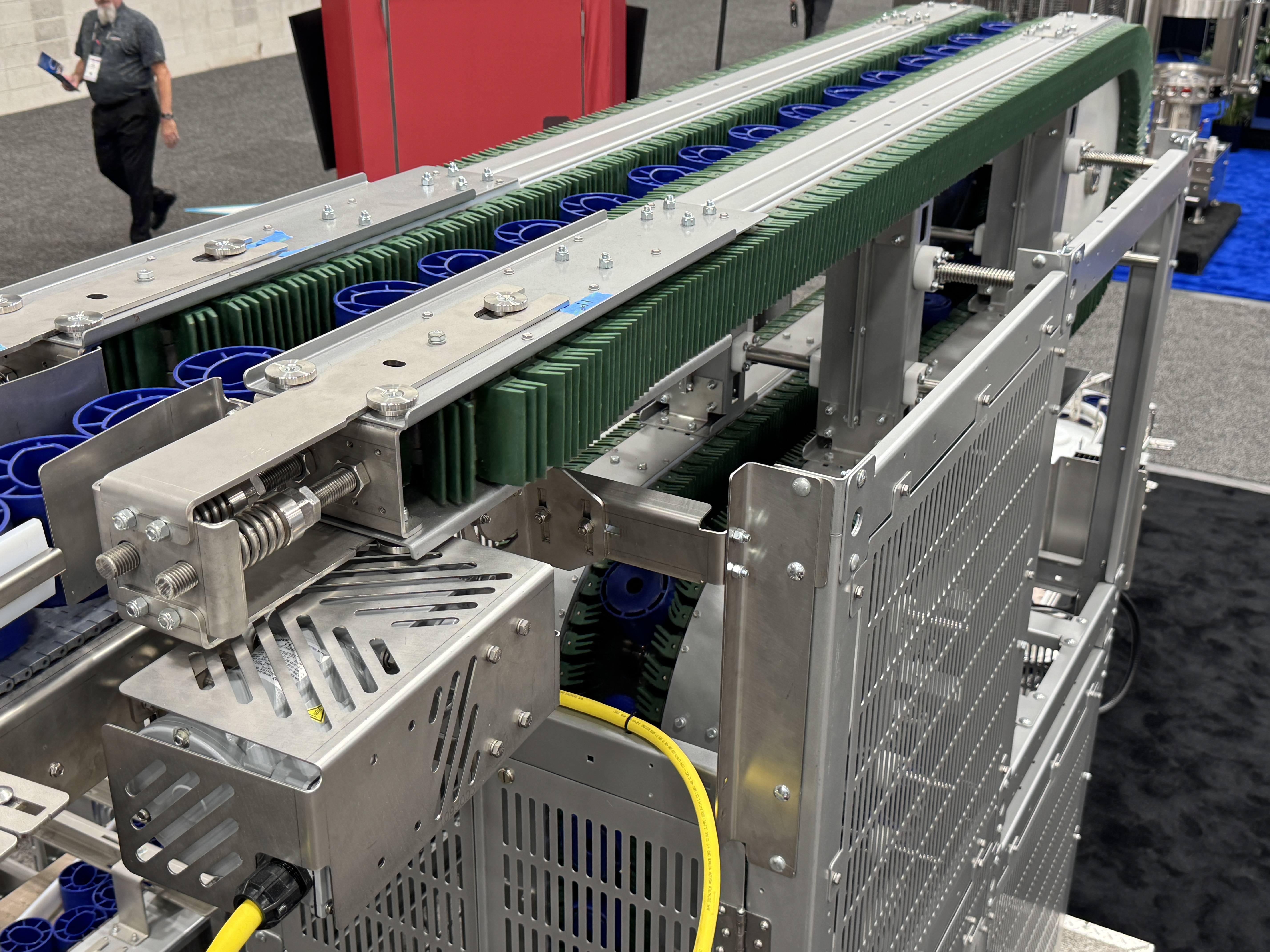

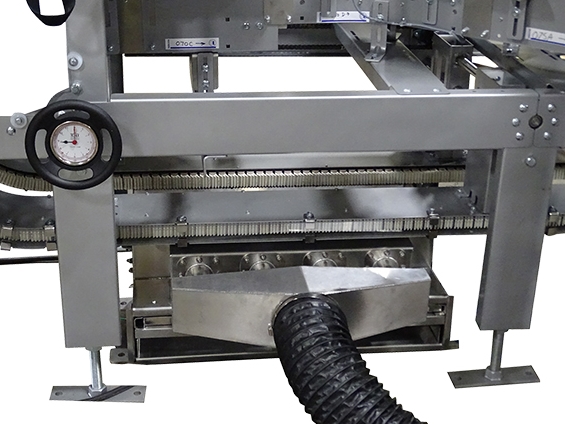

The conveyor utilizes soft neoprene side grippers mounted to moving belts or chains that firmly but gently grasp containers during transportation through the rinsing section. An adjustable handwheel system allows quick width adjustment to accommodate varying bottle diameters and container sizes while maintaining smooth and controlled product handling. True continuous-motion transport allows bottles to remain in motion throughout the rinsing and elevation process, helping maximize throughput and production efficiency.
The stainless steel construction and rugged spindle-bearing turning assemblies are designed for long-term industrial operation within demanding production environments. Depending on the application, the system can utilize ionized air nozzles, liquid rinsing systems, vacuum extraction, or centrifugal water removal functionality to support varying container cleaning requirements.

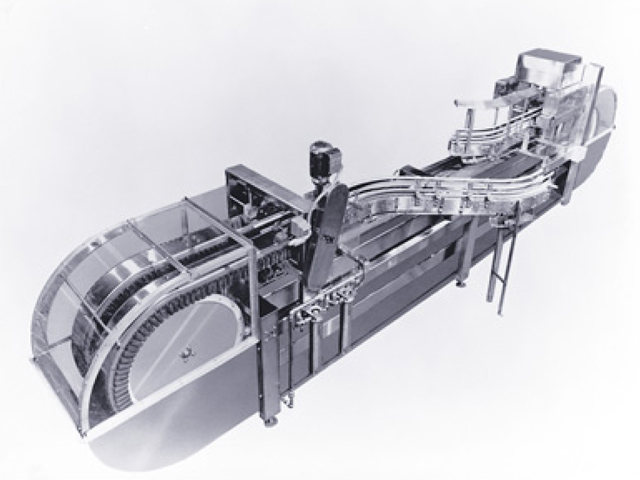

The Gripper Rinser is commonly integrated into bottling, canning, filling, depalletizing, and packaging systems where inline container cleaning and vertical product movement are required. The compact wedge-style conveyor configuration allows substantial elevation changes while requiring minimal floor space compared to traditional incline or decline conveyor systems.
The Gripper Rinser Conveyor is designed for continuous inline rinsing applications requiring high-speed container handling and reliable product control throughout the rinsing process. The system utilizes dual side-gripping conveyor belts that securely hold containers while transporting them through elevation changes and rinsing operations. The gentle gripping action helps maintain product stability and orientation while minimizing container damage during high-speed operation.
The conveyor system supports liquid rinsing and ionized air rinsing applications for bottles and containers commonly used in beverage, food, pharmaceutical, and consumer product packaging operations. Multiple system configurations are available including down swing, up swing, down slope, and air rinsing models depending on production layout and application requirements. The compact vertical design allows facilities to maximize floor space utilization while integrating rinsing functionality directly into the conveyor line.
The conveyor utilizes soft neoprene side grippers mounted to moving belts or chains that firmly but gently grasp containers during transportation through the rinsing section. An adjustable handwheel system allows quick width adjustment to accommodate varying bottle diameters and container sizes while maintaining smooth and controlled product handling. True continuous-motion transport allows bottles to remain in motion throughout the rinsing and elevation process, helping maximize throughput and production efficiency.
The stainless steel construction and rugged spindle-bearing turning assemblies are designed for long-term industrial operation within demanding production environments. Depending on the application, the system can utilize ionized air nozzles, liquid rinsing systems, vacuum extraction, or centrifugal water removal functionality to support varying container cleaning requirements.
The Gripper Rinser is commonly integrated into bottling, canning, filling, depalletizing, and packaging systems where inline container cleaning and vertical product movement are required. The compact wedge-style conveyor configuration allows substantial elevation changes while requiring minimal floor space compared to traditional incline or decline conveyor systems.
- High-speed inline bottle rinsing system
- Continuous-motion container handling
- Dual side-gripping conveyor design
- Soft neoprene grippers for gentle product handling
- Supports liquid and ionized air rinsing applications
- Handles glass, plastic, and fiber containers
- Compact vertical elevation handling design
- Adjustable handwheel width adjustment
- Continuous inline rinsing operation
- Stainless steel construction
- Multiple conveyor configurations available
- Up swing, down swing, and down slope configurations available
- Vacuum and centrifugal drying options available
- Compatible with bottling and packaging lines
- Designed for high-speed continuous-duty operation
- Minimal production floor space requirements
- Equipment Type: Gripper rinser conveyor system
- Conveyor Style: Dual side-gripping belt conveyor
- Product Types: Glass bottles, plastic bottles, fiber containers, cans, and containers
- Maximum Throughput: Up to approximately 1,000 bottles per minute (2" diameter bottles)
- Conveyor Speed: Up to approximately 150 FPM standard
- Product Handling: Continuous-motion container transport
- Gripper Material: Soft neoprene side grippers
- Width Adjustment: Single handwheel adjustment system
- Standard Width Adjustment Range: Approximately 0" to 8"
- Construction: Stainless steel industrial frame
- Conveyor Configurations: Up swing, down swing, down slope, air rinsing, and wedge elevator configurations
- Rinsing Options: Liquid rinsing or ionized air rinsing
- Elevation Capability: Vertical product elevation and lowering
- Floor Space Requirement: Approximately 2'-4" x 9" typical footprint
- Controls Integration: Compatible with automated conveyor and packaging systems
- Applications: Bottle rinsing, depalletizing discharge, filling line integration, and container handling
(Final specifications vary depending on container dimensions, throughput requirements, rinsing applications, elevation changes, and overall system configuration.)
