Gripper Elevator
A gripper elevator conveyor system designed to vertically raise or lower products while maintaining continuous product flow and minimizing floor space requirements.
The system securely grips products between opposing conveyor belts to transport them through elevation changes with smooth and controlled handling. Ideal for packaging and material handling applications requiring compact vertical conveying solutions.

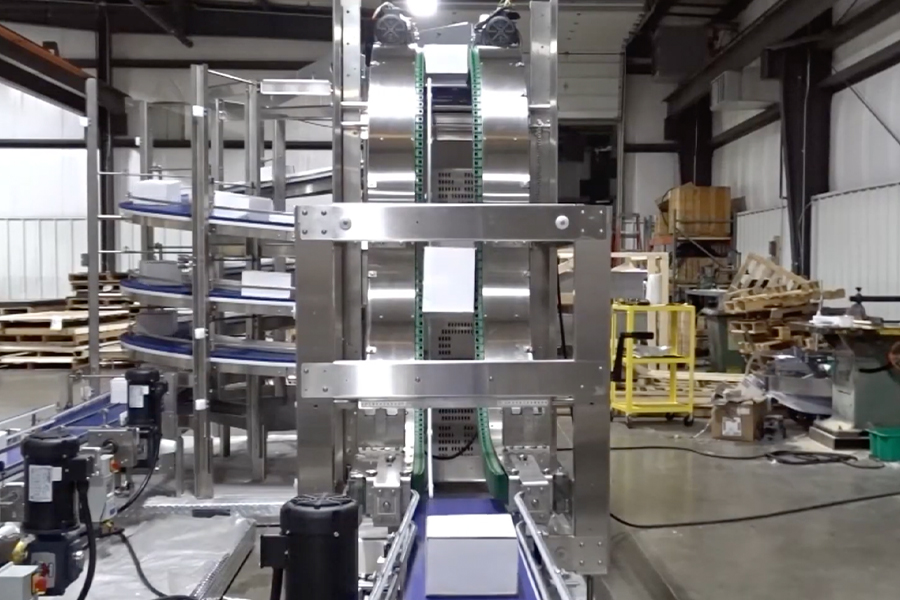

This gripper elevator conveyor system is engineered to transport products vertically by securely holding them between two synchronized conveyor belts during elevation changes. The compact design allows products to move continuously upward or downward while maintaining stable orientation and reducing the floor space typically required by incline conveyors or lifts.
Designed for high-speed packaging and material handling environments, the system supports a wide range of containers, cartons, trays, bags, and packaged products. Adjustable gripping mechanisms and modular conveyor construction allow the system to accommodate varying product dimensions while simplifying future modifications and line integration.
- Conveyor type: Gripper elevator conveyor system
- Product movement: Vertical elevation or lowering
- Conveyor speed: Up to approximately 200 ft/min
- Adjustable product width range: Approximately 0–11 in.
- Product compatibility: Bottles, cartons, trays, bags, pouches, and packaged products
- Conveyor configurations: Straight, “C”, and “S” layouts available
- Adjustment method: Manual handwheel or automated positioning options available
- Construction: Modular conveyor-grade industrial components
- Integration: Compatible with automated packaging and conveyor systems
(Final specifications vary depending on product dimensions, elevation height, throughput requirements, and system configuration.)
- Continuous vertical product conveying operation
- Dual synchronized conveyor belts for secure product gripping
- Compact footprint for space-efficient elevation changes
- Smooth and controlled product handling during transport
- Adjustable gripping width for multiple product sizes
- Supports upward or downward product movement
- Available in straight, “C”, and “S” conveyor configurations
- Can perform product inversion and reorientation functions
- Suitable for bottles, cartons, trays, bags, pouches, and packaged goods
- Modular construction for flexible layouts and future expansion
- Designed for high-speed industrial packaging and material handling applications
- Compatible with automated conveyor and packaging systems

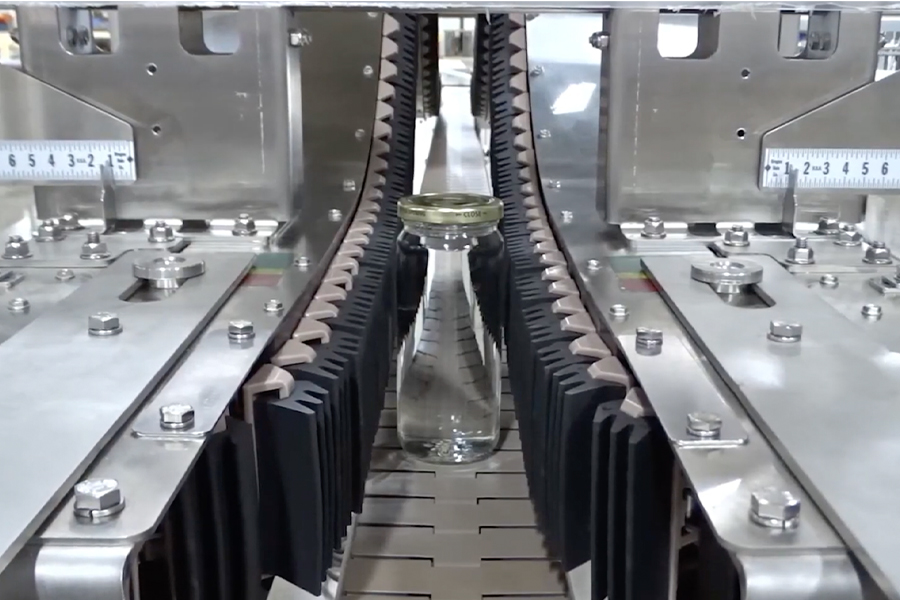

The system operates using two parallel conveyor belts positioned closely together to gently grip products along their sides during transport. As the belts move synchronously, products are elevated or lowered between production levels while remaining securely stabilized throughout the conveying process.

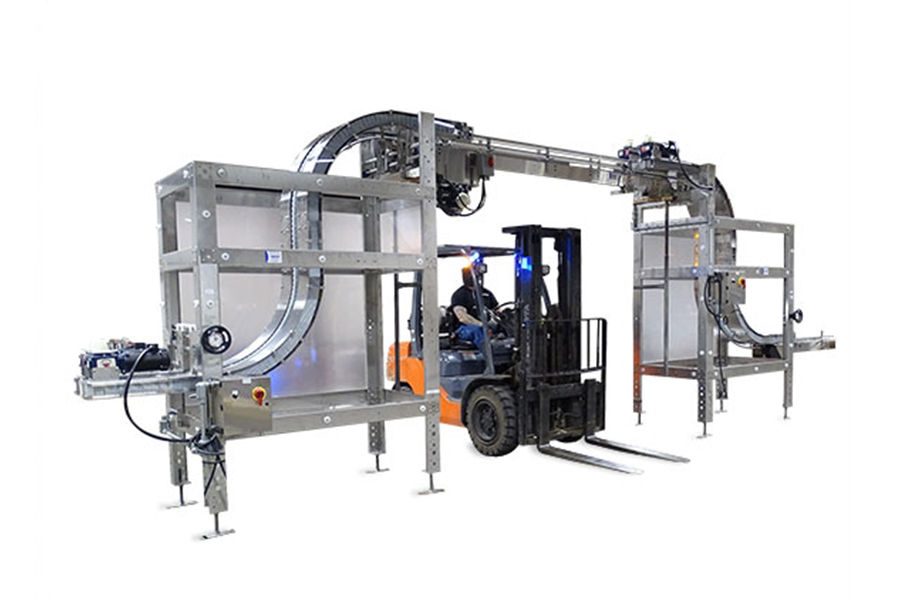

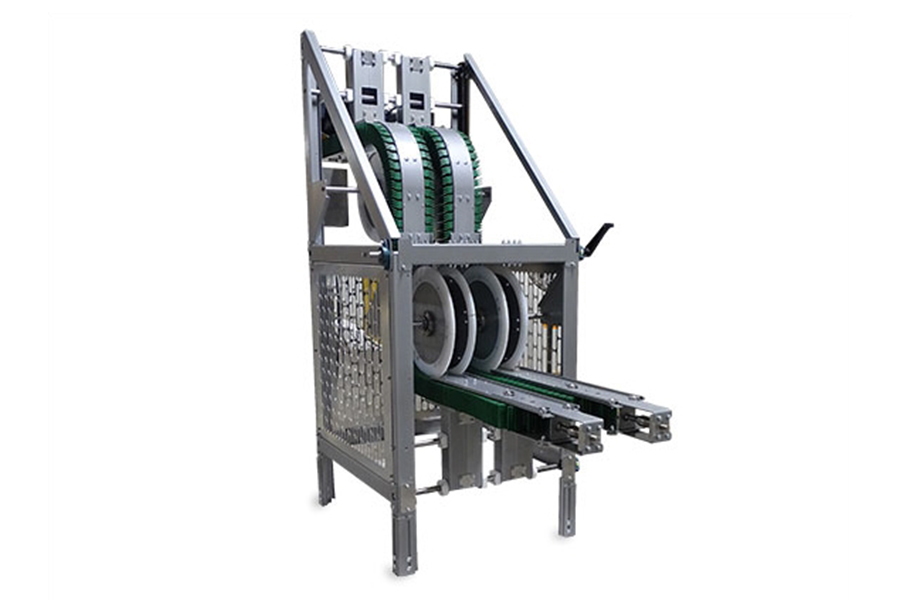

The adjustable gripping design allows operators to accommodate different product widths and shapes using a single handwheel adjustment or optional automated positioning systems. Depending on the application, the conveyor may be configured in straight, “C”, or “S” style arrangements to support elevation changes, product inversion, or reorientation functions within the same conveyor system.
Its compact footprint makes the system especially effective for facilities with limited floor space or overhead conveyor requirements. The modular construction allows for future field modifications including elevation adjustments, conveyor reconfiguration, and integration with existing automated conveyor systems.
This gripper elevator conveyor system is engineered to transport products vertically by securely holding them between two synchronized conveyor belts during elevation changes. The compact design allows products to move continuously upward or downward while maintaining stable orientation and reducing the floor space typically required by incline conveyors or lifts.
Designed for high-speed packaging and material handling environments, the system supports a wide range of containers, cartons, trays, bags, and packaged products. Adjustable gripping mechanisms and modular conveyor construction allow the system to accommodate varying product dimensions while simplifying future modifications and line integration.
The system operates using two parallel conveyor belts positioned closely together to gently grip products along their sides during transport. As the belts move synchronously, products are elevated or lowered between production levels while remaining securely stabilized throughout the conveying process.
The adjustable gripping design allows operators to accommodate different product widths and shapes using a single handwheel adjustment or optional automated positioning systems. Depending on the application, the conveyor may be configured in straight, “C”, or “S” style arrangements to support elevation changes, product inversion, or reorientation functions within the same conveyor system.
Its compact footprint makes the system especially effective for facilities with limited floor space or overhead conveyor requirements. The modular construction allows for future field modifications including elevation adjustments, conveyor reconfiguration, and integration with existing automated conveyor systems.
- Continuous vertical product conveying operation
- Dual synchronized conveyor belts for secure product gripping
- Compact footprint for space-efficient elevation changes
- Smooth and controlled product handling during transport
- Adjustable gripping width for multiple product sizes
- Supports upward or downward product movement
- Available in straight, “C”, and “S” conveyor configurations
- Can perform product inversion and reorientation functions
- Suitable for bottles, cartons, trays, bags, pouches, and packaged goods
- Modular construction for flexible layouts and future expansion
- Designed for high-speed industrial packaging and material handling applications
- Compatible with automated conveyor and packaging systems
- Conveyor type: Gripper elevator conveyor system
- Product movement: Vertical elevation or lowering
- Conveyor speed: Up to approximately 200 ft/min
- Adjustable product width range: Approximately 0–11 in.
- Product compatibility: Bottles, cartons, trays, bags, pouches, and packaged products
- Conveyor configurations: Straight, “C”, and “S” layouts available
- Adjustment method: Manual handwheel or automated positioning options available
- Construction: Modular conveyor-grade industrial components
- Integration: Compatible with automated packaging and conveyor systems
(Final specifications vary depending on product dimensions, elevation height, throughput requirements, and system configuration.)
