Gravity Conveyor

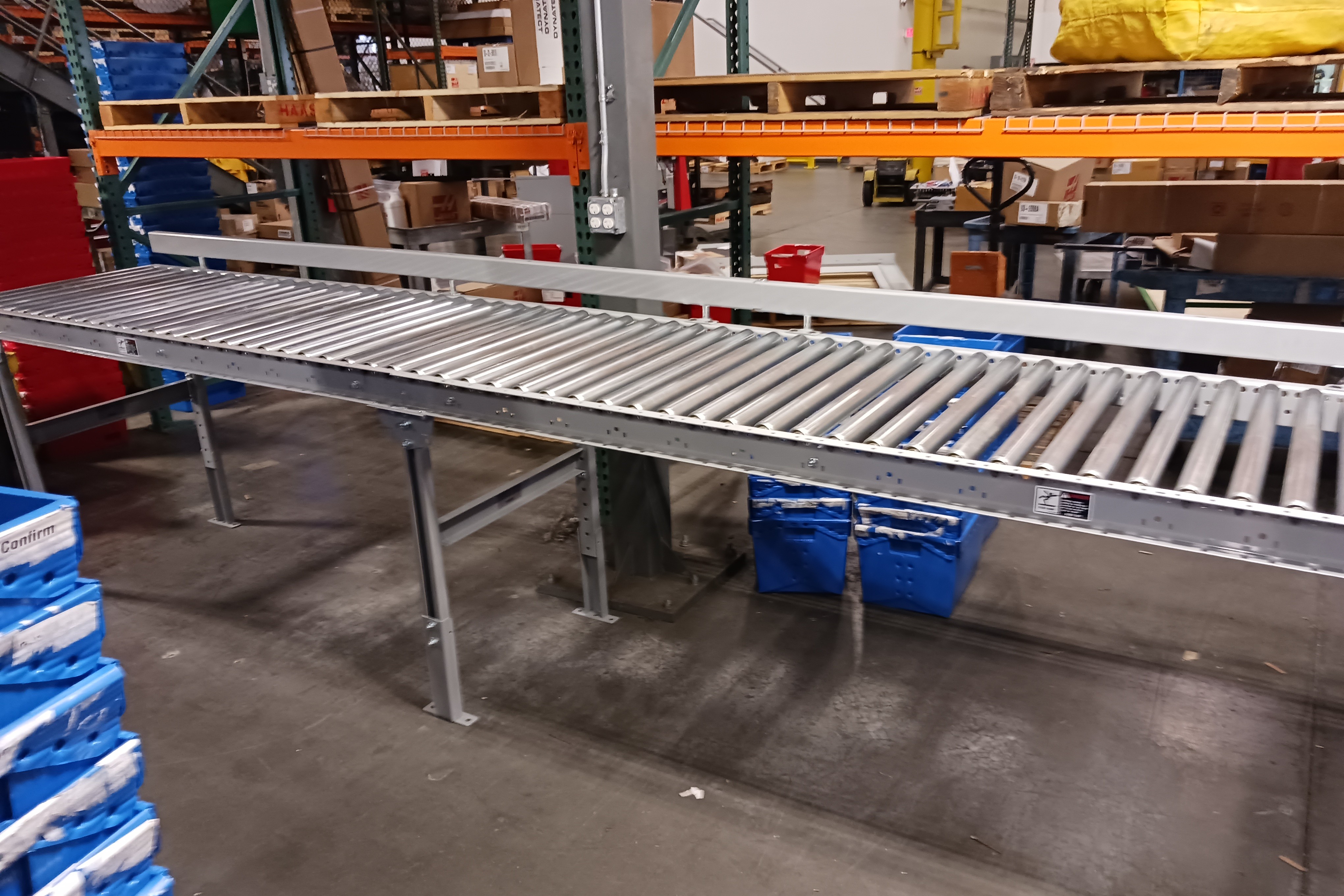

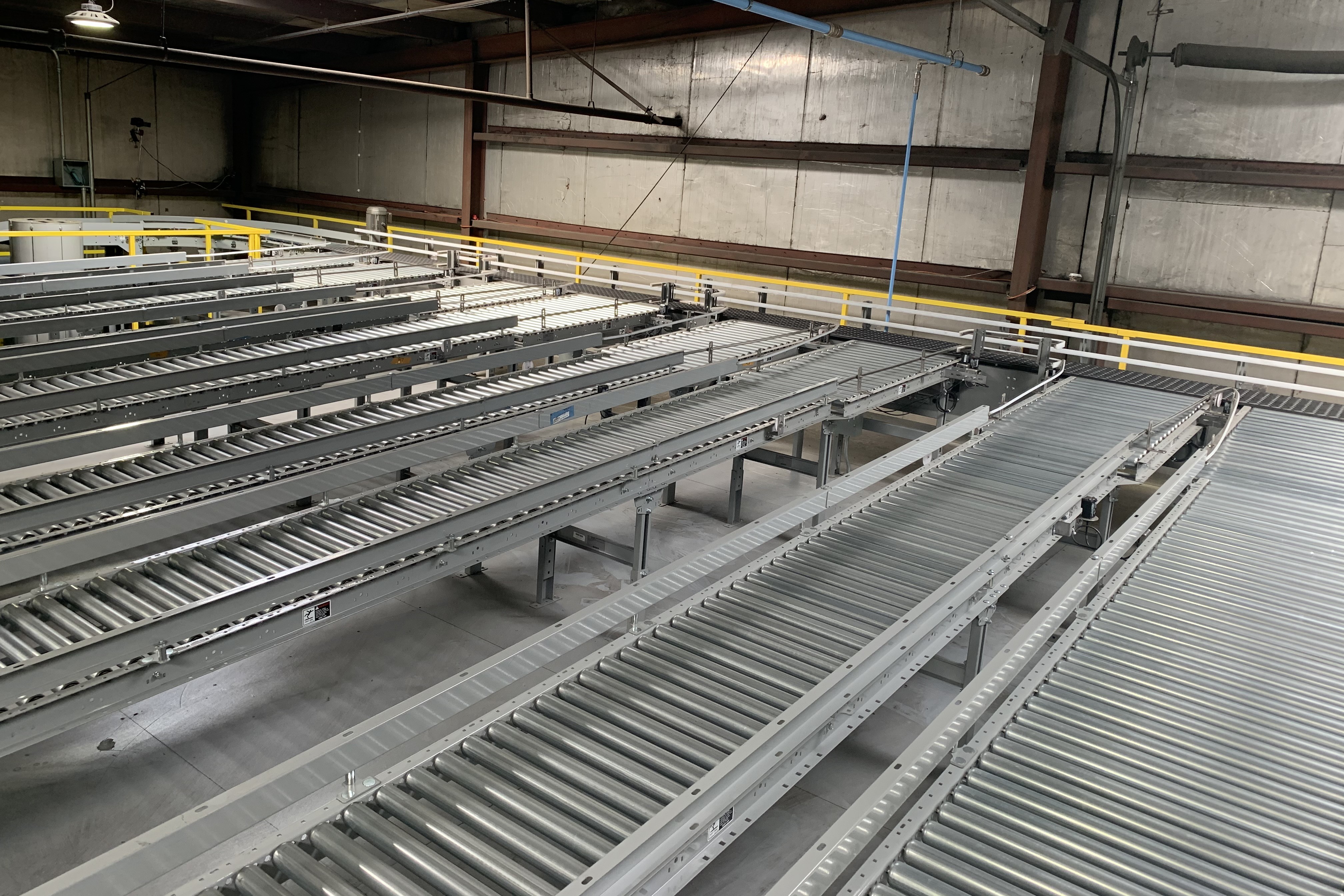

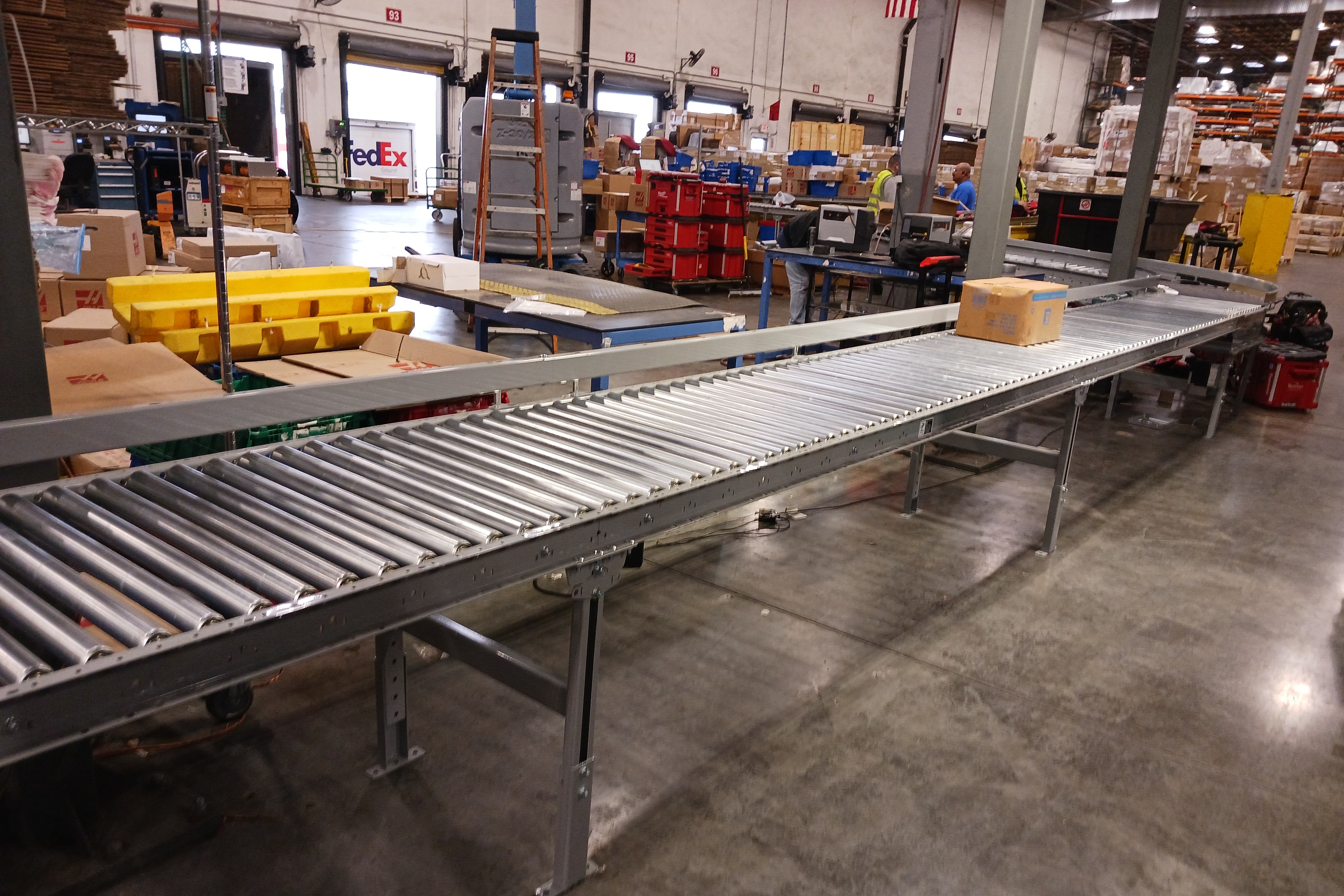

The RG Roller Gravity Conveyor is a pre-engineered non-powered conveyor system designed for smooth and efficient transportation of light and medium-duty products.
Utilizing a gravity roller conveying surface, the system provides dependable product flow for accumulation, workstation handling, loading, unloading, and directional change applications. Its simple, durable construction and maintenance-friendly design make it a cost-effective solution for a wide range of material handling layouts.
The RG Roller Gravity Conveyor is designed to transport cartons, totes, packages, and various product types using a gravity-fed roller surface. The conveyor accommodates rigid, soft, and fragile materials while maintaining smooth and quiet product movement throughout the conveying path. Available in both light-duty and medium-duty frame configurations, the system can be configured to support a variety of product sizes and load requirements.
The conveyor’s bolted frame construction provides durability while allowing flexible conveyor layouts and simplified installation. Multiple roller spacings, conveyor widths, and optional accessories allow the conveyor to be configured for transportation, accumulation, buffering, workstation integration, directional changes, and decline conveying applications.
- Conveyor Type: Gravity roller conveyor
- Conveyor Configuration: Non-powered roller conveyor
- Light Duty Frame: 2-1/2" deep x 1-3/8" flange x 12-gauge bolted steel frame
- Medium Duty Frame: 3-1/2" deep x 1-3/8" flange x 10-gauge bolted steel frame
- Light Duty Roller Diameter: 1-3/8"
- Light Duty Roller Gauge: 18 gauge
- Light Duty Axle: 1/4" round axle
- Medium Duty Roller Diameter: 1-7/8"
- Medium Duty Roller Gauge: 16 gauge
- Medium Duty Axle: 7/16" hex axle
- Roller Finish: Galvanized steel rollers
- Conveyor Widths: 18", 24", 30", and 36"
- Light Duty Width Availability: 18" and 24" only
- Between Rail Widths: 15-1/2", 21-1/2", 27-1/2", and 33-1/2"
- Roller Centers: 2", 3", and 4"
- Light Duty Load Capacity: Up to approximately 50 lbs per foot depending on conveyor width, supports, and roller spacing
- Medium Duty Load Capacity: Up to approximately 100 lbs per foot depending on conveyor width, supports, and roller spacing
- Conveyor Applications: Transportation, accumulation, buffering, workstation integration, directional changes, and decline conveying
- Optional Stops: Air operated, hand operated, and foot operated stops available
- Optional Brakes: Air operated brake systems available
- Optional Rollers: Urethane-coated rollers available
- Optional Accessories: Guard rails, supports, splice angles, end covers, and roller end stops
- Finish Options: Powder coat or galvanized finish available
(Final specifications vary depending on product dimensions, throughput requirements, and system configuration.)
- Gravity roller conveyor design
- Non-powered product transportation
- Light-duty and medium-duty conveyor configurations available
- Bolted steel frame construction
- Galvanized steel carrying rollers
- Smooth and quiet product handling
- Suitable for rigid, soft, and fragile product transportation
- Accumulation and buffering capabilities
- Multiple conveyor widths and roller spacings available
- Maintenance-friendly conveyor design
- Compatible with workstation and station-to-station layouts
- Optional conveyor stops and braking systems
- Optional urethane-coated rollers available
- Decline conveyor configurations available
- Expandable conveyor system layouts

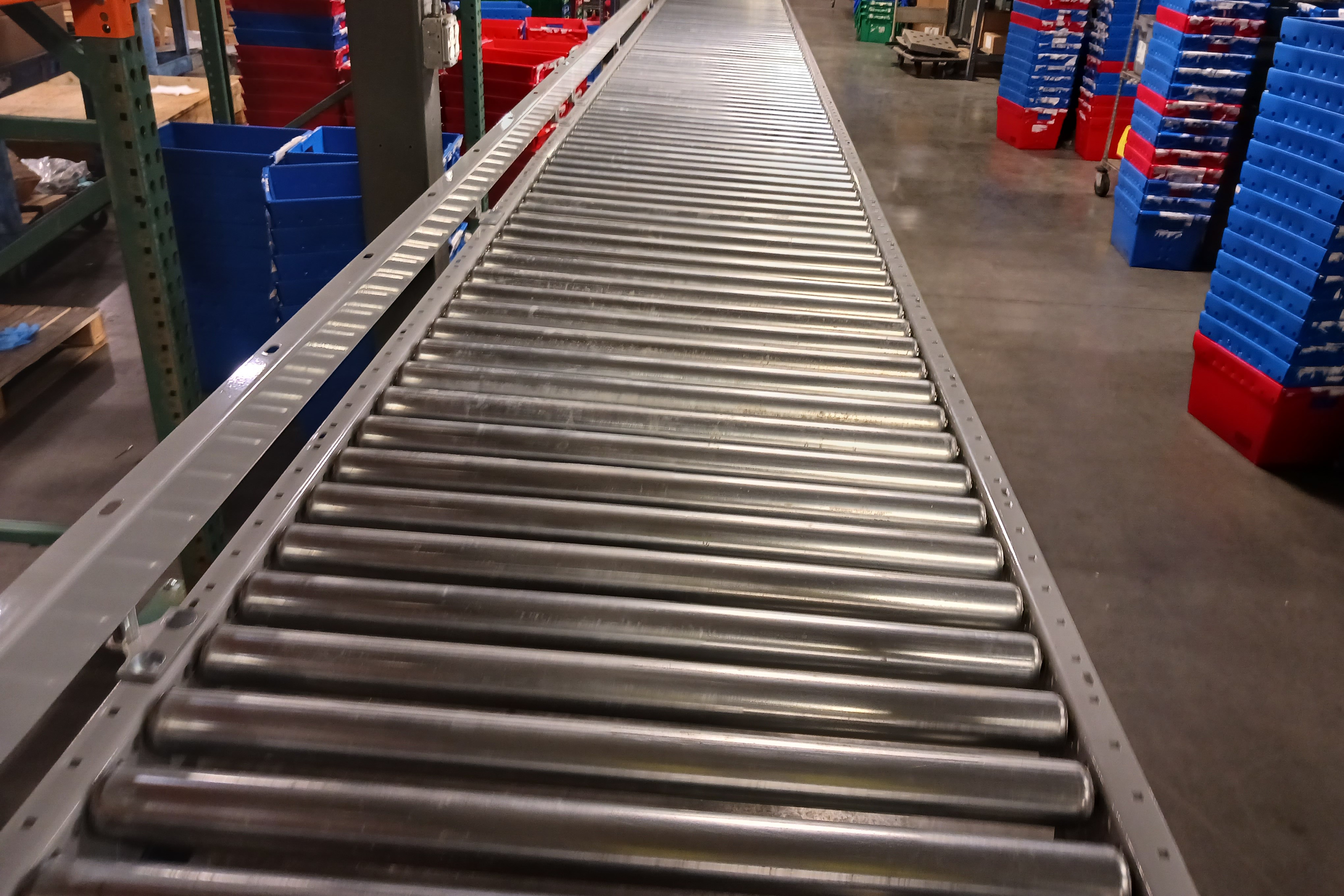

The conveyor utilizes galvanized steel rollers designed to provide low-friction product movement while maintaining reliable long-term performance in industrial environments. Depending on the application requirements, the conveyor is available in either a light-duty or medium-duty configuration with varying frame depths, roller diameters, and load capacities.
The light-duty conveyor design is suited for lighter products and workstation handling applications, while the medium-duty configuration supports heavier cartons and higher load capacities. Multiple roller center spacings are available to accommodate varying product dimensions while maintaining stable product transportation throughout the conveyor system.
Optional accessories including stops, brakes, guard rails, coated rollers, and support assemblies allow the conveyor to be customized for specific handling requirements. The conveyor can also be integrated into larger conveyor systems for manual or semi-automated material flow applications.
The RG Roller Gravity Conveyor is designed to transport cartons, totes, packages, and various product types using a gravity-fed roller surface. The conveyor accommodates rigid, soft, and fragile materials while maintaining smooth and quiet product movement throughout the conveying path. Available in both light-duty and medium-duty frame configurations, the system can be configured to support a variety of product sizes and load requirements.
The conveyor’s bolted frame construction provides durability while allowing flexible conveyor layouts and simplified installation. Multiple roller spacings, conveyor widths, and optional accessories allow the conveyor to be configured for transportation, accumulation, buffering, workstation integration, directional changes, and decline conveying applications.
The conveyor utilizes galvanized steel rollers designed to provide low-friction product movement while maintaining reliable long-term performance in industrial environments. Depending on the application requirements, the conveyor is available in either a light-duty or medium-duty configuration with varying frame depths, roller diameters, and load capacities.
The light-duty conveyor design is suited for lighter products and workstation handling applications, while the medium-duty configuration supports heavier cartons and higher load capacities. Multiple roller center spacings are available to accommodate varying product dimensions while maintaining stable product transportation throughout the conveyor system.
Optional accessories including stops, brakes, guard rails, coated rollers, and support assemblies allow the conveyor to be customized for specific handling requirements. The conveyor can also be integrated into larger conveyor systems for manual or semi-automated material flow applications.
- Gravity roller conveyor design
- Non-powered product transportation
- Light-duty and medium-duty conveyor configurations available
- Bolted steel frame construction
- Galvanized steel carrying rollers
- Smooth and quiet product handling
- Suitable for rigid, soft, and fragile product transportation
- Accumulation and buffering capabilities
- Multiple conveyor widths and roller spacings available
- Maintenance-friendly conveyor design
- Compatible with workstation and station-to-station layouts
- Optional conveyor stops and braking systems
- Optional urethane-coated rollers available
- Decline conveyor configurations available
- Expandable conveyor system layouts
- Conveyor Type: Gravity roller conveyor
- Conveyor Configuration: Non-powered roller conveyor
- Light Duty Frame: 2-1/2" deep x 1-3/8" flange x 12-gauge bolted steel frame
- Medium Duty Frame: 3-1/2" deep x 1-3/8" flange x 10-gauge bolted steel frame
- Light Duty Roller Diameter: 1-3/8"
- Light Duty Roller Gauge: 18 gauge
- Light Duty Axle: 1/4" round axle
- Medium Duty Roller Diameter: 1-7/8"
- Medium Duty Roller Gauge: 16 gauge
- Medium Duty Axle: 7/16" hex axle
- Roller Finish: Galvanized steel rollers
- Conveyor Widths: 18", 24", 30", and 36"
- Light Duty Width Availability: 18" and 24" only
- Between Rail Widths: 15-1/2", 21-1/2", 27-1/2", and 33-1/2"
- Roller Centers: 2", 3", and 4"
- Light Duty Load Capacity: Up to approximately 50 lbs per foot depending on conveyor width, supports, and roller spacing
- Medium Duty Load Capacity: Up to approximately 100 lbs per foot depending on conveyor width, supports, and roller spacing
- Conveyor Applications: Transportation, accumulation, buffering, workstation integration, directional changes, and decline conveying
- Optional Stops: Air operated, hand operated, and foot operated stops available
- Optional Brakes: Air operated brake systems available
- Optional Rollers: Urethane-coated rollers available
- Optional Accessories: Guard rails, supports, splice angles, end covers, and roller end stops
- Finish Options: Powder coat or galvanized finish available
(Final specifications vary depending on product dimensions, throughput requirements, and system configuration.)
