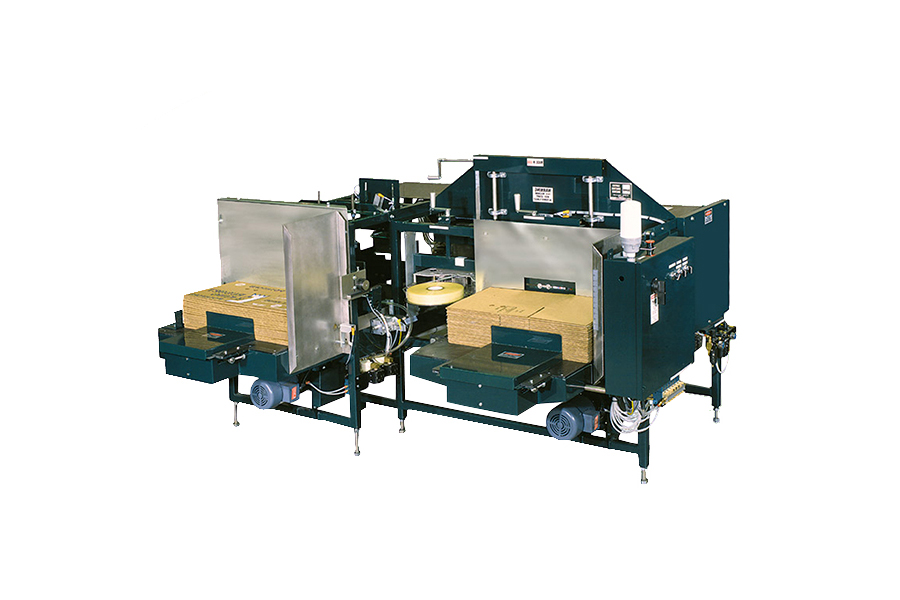

ER-1600 Case Erector with Lidder
The ER-1600 Case Erector is a heavy-duty automatic case forming system designed for high-speed erection and bottom sealing of RSC and HSC corrugated cases.
Built for demanding continuous-duty packaging environments, the machine provides reliable case forming performance with speeds up to approximately 17 cases per minute. Its rugged welded steel construction, user-friendly operation, and patented tape sealing system make it well suited for facilities requiring dependable long-term packaging automation.
The ER-1600 Case Erector is designed to automatically form, fold, and seal corrugated cases for packaging operations requiring consistent throughput and reliable continuous-duty performance. The machine supports both Regular Slotted Containers (RSC) and Half Slotted Containers (HSC) while maintaining flexible adjustment capability for varying case sizes and packaging requirements.
The case erector utilizes a patented tape head system designed to provide fast and consistent tape application while minimizing downtime and maintenance requirements. The system is designed for easy loading, simplified operation, and efficient case changeovers, making it suitable for facilities requiring durable high-production packaging equipment integrated with existing conveyor systems and automated packaging lines.
- Equipment Type: Automatic case erector
- Case Styles: RSC and HSC
- Case Speed: Up to approximately 17 cases per minute
- Production Output: More than approximately 9,500 cases per 8-hour shift
- Case Size Capacity:
- Minimum: 14" L x 7" W x 6" H
- Maximum: 25" L x 14" W x 19" H
- Machine Dimensions: Approximately 74" L x 88" W x 60" H
- Conveyor Height Range: Approximately 24" to 33"
- Construction: Welded tubular steel frame
- Finish Options: Painted steel or optional stainless steel
- Tape Head: Patented high-speed tape head system
- Controls: PLC automation controls
- Motor Requirements: Dual 2-1/3 HP motors
- Electrical Requirements: 230/480V, 60 Hz, 3 Phase
- Air Requirements: Approximately 10 CFM
- Fault Detection: Low tape and tape cut monitoring system
- Integration Capability: Compatible with existing conveyor and packaging systems
- Optional Equipment: HSC lidder for telescoping cases
(Final specifications vary depending on case dimensions, throughput requirements, product characteristics, and overall system configuration.)
- Automatic case erecting and bottom sealing system
- Supports RSC and HSC case styles
- Speeds up to approximately 17 cases per minute
- Heavy-duty welded tubular steel construction
- Patented tape head sealing system
- Fast and consistent tape application
- User-friendly machine operation
- Easy-loading case hopper design
- Manual adjustment for multiple case sizes
- PLC-controlled automation system
- Fault detection and warning system
- Low tape detection capability
- Compatible with existing conveyor systems
- Optional stainless steel construction available
- Optional HSC lidder available
- Designed for continuous-duty industrial operation
The automatic case erector utilizes a powered case magazine and forming system to automatically open corrugated blanks, square the case, fold the bottom flaps, and apply tape sealing prior to discharge onto downstream conveyors or packaging equipment. The machine is designed for continuous industrial operation and supports production environments requiring dependable case handling with minimal operator intervention.
The welded tubular steel frame construction provides structural rigidity and durability for demanding packaging operations. Electro-plated components and optional stainless steel construction help improve long-term reliability depending on operating conditions and washdown requirements. Convenient manual adjustments allow operators to accommodate multiple case sizes while minimizing changeover time between production runs.
Integrated PLC controls provide automated machine sequencing and operational monitoring while fault detection systems help identify low tape conditions or tape cut failures to reduce packaging interruptions. The machine can also be integrated with optional HSC lidder systems for telescoping case applications and additional end-of-line automation equipment.
The ER-1600 Case Erector is designed to automatically form, fold, and seal corrugated cases for packaging operations requiring consistent throughput and reliable continuous-duty performance. The machine supports both Regular Slotted Containers (RSC) and Half Slotted Containers (HSC) while maintaining flexible adjustment capability for varying case sizes and packaging requirements.
The case erector utilizes a patented tape head system designed to provide fast and consistent tape application while minimizing downtime and maintenance requirements. The system is designed for easy loading, simplified operation, and efficient case changeovers, making it suitable for facilities requiring durable high-production packaging equipment integrated with existing conveyor systems and automated packaging lines.
The automatic case erector utilizes a powered case magazine and forming system to automatically open corrugated blanks, square the case, fold the bottom flaps, and apply tape sealing prior to discharge onto downstream conveyors or packaging equipment. The machine is designed for continuous industrial operation and supports production environments requiring dependable case handling with minimal operator intervention.
The welded tubular steel frame construction provides structural rigidity and durability for demanding packaging operations. Electro-plated components and optional stainless steel construction help improve long-term reliability depending on operating conditions and washdown requirements. Convenient manual adjustments allow operators to accommodate multiple case sizes while minimizing changeover time between production runs.
Integrated PLC controls provide automated machine sequencing and operational monitoring while fault detection systems help identify low tape conditions or tape cut failures to reduce packaging interruptions. The machine can also be integrated with optional HSC lidder systems for telescoping case applications and additional end-of-line automation equipment.
- Automatic case erecting and bottom sealing system
- Supports RSC and HSC case styles
- Speeds up to approximately 17 cases per minute
- Heavy-duty welded tubular steel construction
- Patented tape head sealing system
- Fast and consistent tape application
- User-friendly machine operation
- Easy-loading case hopper design
- Manual adjustment for multiple case sizes
- PLC-controlled automation system
- Fault detection and warning system
- Low tape detection capability
- Compatible with existing conveyor systems
- Optional stainless steel construction available
- Optional HSC lidder available
- Designed for continuous-duty industrial operation
- Equipment Type: Automatic case erector
- Case Styles: RSC and HSC
- Case Speed: Up to approximately 17 cases per minute
- Production Output: More than approximately 9,500 cases per 8-hour shift
- Case Size Capacity:
- Minimum: 14" L x 7" W x 6" H
- Maximum: 25" L x 14" W x 19" H
- Machine Dimensions: Approximately 74" L x 88" W x 60" H
- Conveyor Height Range: Approximately 24" to 33"
- Construction: Welded tubular steel frame
- Finish Options: Painted steel or optional stainless steel
- Tape Head: Patented high-speed tape head system
- Controls: PLC automation controls
- Motor Requirements: Dual 2-1/3 HP motors
- Electrical Requirements: 230/480V, 60 Hz, 3 Phase
- Air Requirements: Approximately 10 CFM
- Fault Detection: Low tape and tape cut monitoring system
- Integration Capability: Compatible with existing conveyor and packaging systems
- Optional Equipment: HSC lidder for telescoping cases
(Final specifications vary depending on case dimensions, throughput requirements, product characteristics, and overall system configuration.)
