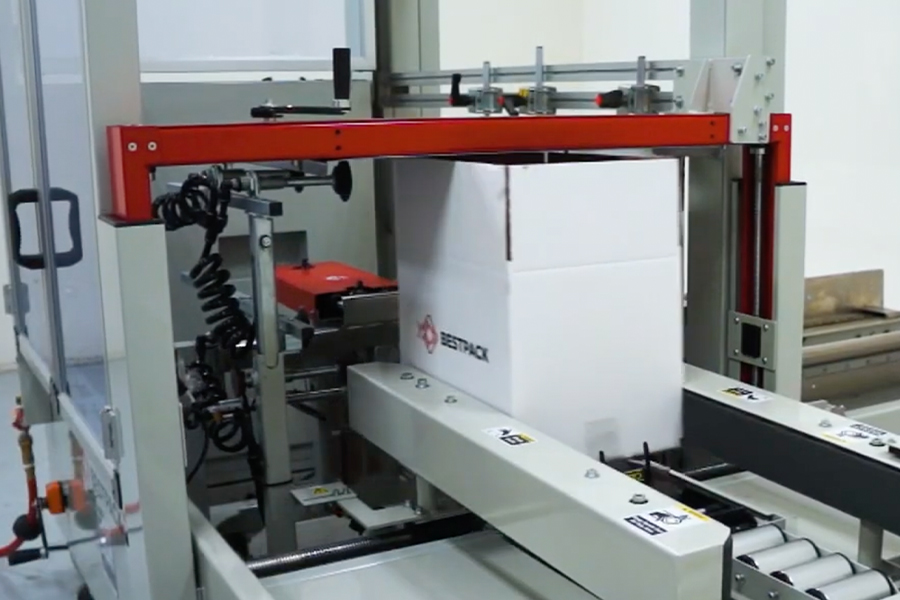

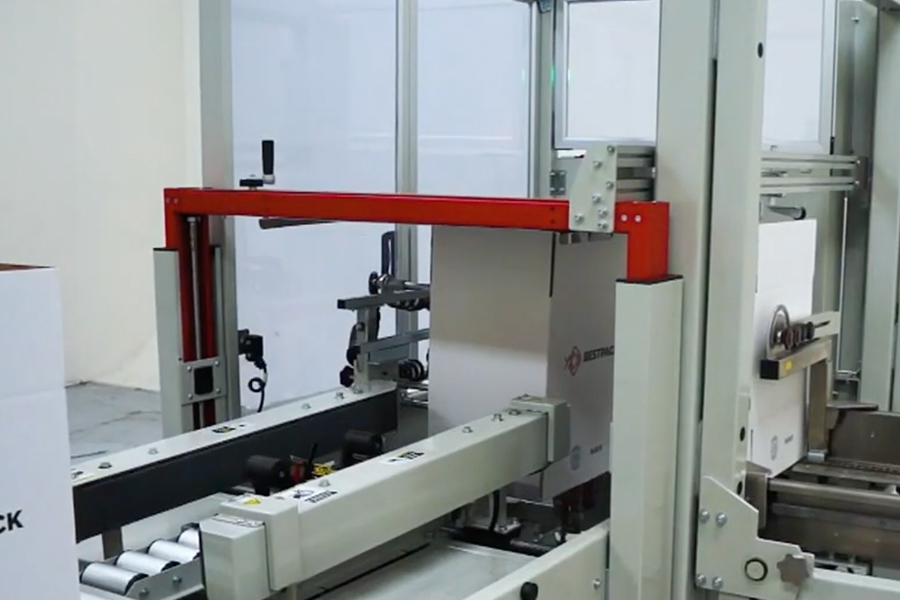

ELVS Carton Erector
A fully automatic carton erecting and bottom sealing system designed to form corrugated cases with consistent speed and precision.
The compact footprint and tool-less changeover design improve operational flexibility while maximizing floor space efficiency. Ideal for packaging lines requiring reliable case forming and continuous automated operation.
This automatic carton erector is engineered to open, square, and seal corrugated cartons using a vacuum-assisted forming system and pressure-sensitive tape sealing technology. The machine automates the carton setup process to improve throughput, reduce manual labor, and maintain consistent case quality throughout production.
Designed for heavy-duty industrial use, the system combines a compact footprint with flexible carton handling capabilities to support a wide range of box sizes and packaging applications. Tool-less changeovers and adjustable positioning controls simplify operation while allowing facilities to quickly adapt to changing carton dimensions and production requirements.
- Throughput: Up to approximately 15 cartons per minute
- Carton size range: Approximately 7.5–27 in. L × 5–20 in. W × 6–33 in. H
- Machine dimensions: Approximately 100.8 in. L × 83 in. W × 64.3 in. H
- Conveyor height adjustment: Approximately 25.5–31.5 in.
- Tape compatibility: 2 in. or 3 in. pressure-sensitive tape heads
- Electrical requirements: 110V, single phase, 20 amp
- Air requirements: Approximately 80 PSI, 10 SCFM
- Shipping weight: Approximately 1,800 lbs.
- Construction: Heavy-duty welded industrial steel frame
(Final specifications vary depending on carton dimensions, tape configuration, and system options.)
- Fully automatic carton erecting and bottom sealing operation
- Vacuum suction cup carton forming system
- Tool-less carton size changeover design
- Compact footprint for improved floor space utilization
- Side belt drive system with high-speed motors
- Adjustable screw drive counters for carton positioning
- Compatible with 2 in. or 3 in. pressure-sensitive tape heads
- Low tape, no tape, and no-cut detection sensors
- Integrated malfunction alarm and operator notification system
- Heavy-duty welded steel frame construction
- Optional stainless steel food-grade construction available
- PLC controls with optional Ethernet connectivity available

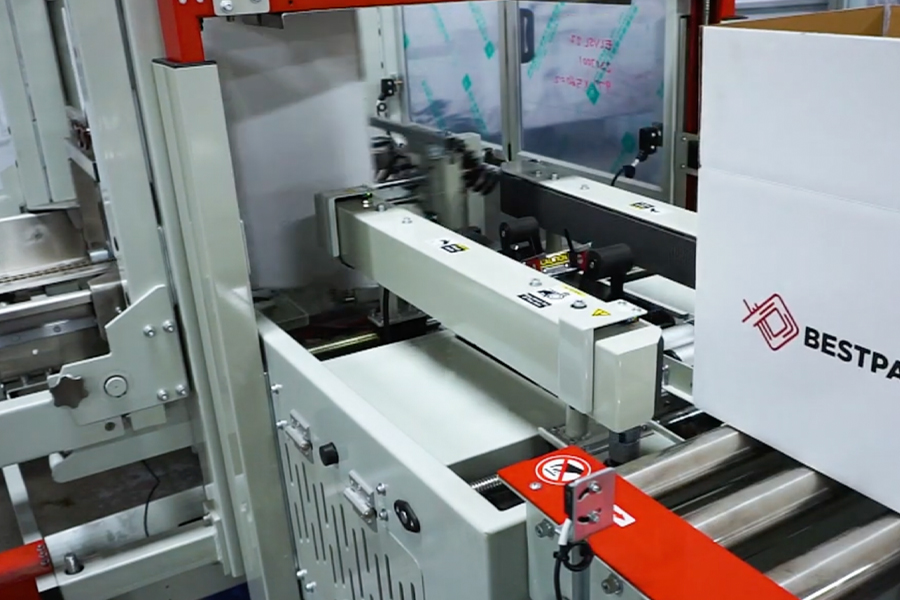

The system utilizes a vacuum suction cup mechanism to retrieve flat corrugated blanks from the hopper and automatically form them into square cartons before applying bottom tape sealing. Side belt drives transport cartons through the machine while maintaining consistent positioning and controlled product flow throughout operation.
Adjustment screw counters allow operators to quickly modify carton width, length, and hopper positioning without the need for tools, helping reduce downtime during product changeovers. Integrated sensors monitor tape conditions, carton presence, and cutting performance while malfunction alarms notify operators of operational interruptions.
Its modular design supports optional accessories such as extended conveyors, Ethernet communication capability, spare tape heads, and stainless steel washdown construction. The result is a flexible carton erecting solution suitable for food, beverage, distribution, and general industrial packaging environments.
This automatic carton erector is engineered to open, square, and seal corrugated cartons using a vacuum-assisted forming system and pressure-sensitive tape sealing technology. The machine automates the carton setup process to improve throughput, reduce manual labor, and maintain consistent case quality throughout production.
Designed for heavy-duty industrial use, the system combines a compact footprint with flexible carton handling capabilities to support a wide range of box sizes and packaging applications. Tool-less changeovers and adjustable positioning controls simplify operation while allowing facilities to quickly adapt to changing carton dimensions and production requirements.
The system utilizes a vacuum suction cup mechanism to retrieve flat corrugated blanks from the hopper and automatically form them into square cartons before applying bottom tape sealing. Side belt drives transport cartons through the machine while maintaining consistent positioning and controlled product flow throughout operation.
Adjustment screw counters allow operators to quickly modify carton width, length, and hopper positioning without the need for tools, helping reduce downtime during product changeovers. Integrated sensors monitor tape conditions, carton presence, and cutting performance while malfunction alarms notify operators of operational interruptions.
Its modular design supports optional accessories such as extended conveyors, Ethernet communication capability, spare tape heads, and stainless steel washdown construction. The result is a flexible carton erecting solution suitable for food, beverage, distribution, and general industrial packaging environments.
- Fully automatic carton erecting and bottom sealing operation
- Vacuum suction cup carton forming system
- Tool-less carton size changeover design
- Compact footprint for improved floor space utilization
- Side belt drive system with high-speed motors
- Adjustable screw drive counters for carton positioning
- Compatible with 2 in. or 3 in. pressure-sensitive tape heads
- Low tape, no tape, and no-cut detection sensors
- Integrated malfunction alarm and operator notification system
- Heavy-duty welded steel frame construction
- Optional stainless steel food-grade construction available
- PLC controls with optional Ethernet connectivity available
- Throughput: Up to approximately 15 cartons per minute
- Carton size range: Approximately 7.5–27 in. L × 5–20 in. W × 6–33 in. H
- Machine dimensions: Approximately 100.8 in. L × 83 in. W × 64.3 in. H
- Conveyor height adjustment: Approximately 25.5–31.5 in.
- Tape compatibility: 2 in. or 3 in. pressure-sensitive tape heads
- Electrical requirements: 110V, single phase, 20 amp
- Air requirements: Approximately 80 PSI, 10 SCFM
- Shipping weight: Approximately 1,800 lbs.
- Construction: Heavy-duty welded industrial steel frame
(Final specifications vary depending on carton dimensions, tape configuration, and system options.)
