Duobot Palletizer
A compact robotic palletizing system designed to automate case palletizing while maximizing floor space efficiency.

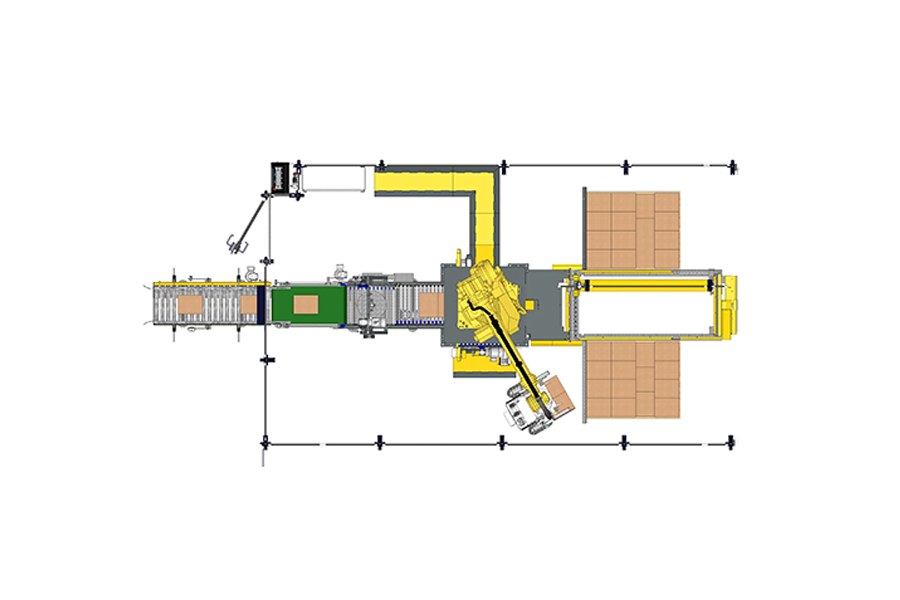

The dual-position design allows continuous palletizing operation while full pallets are removed without stopping production. Ideal for facilities requiring flexible, space-saving, and easy-to-deploy end-of-line automation solutions.
This robotic palletizing system is engineered to automate the stacking of boxes and packaged products onto pallets using a compact dual-position palletizing cell. The system utilizes an articulated robotic arm with an integrated gripper assembly to precisely pick, position, and palletize products while maintaining stable and repeatable load formation.
Designed for flexibility and rapid deployment, the palletizer is mounted on a transportable platform that simplifies installation and startup. Its dual palletizing positions allow operators to remove completed pallets while the robot continues palletizing on the second station, minimizing downtime and improving overall production efficiency.
- Production capacity: Up to approximately 20 boxes per minute
- Cycle rate: Up to approximately 8.5 cycles per minute
- Box size range: Approximately 4.7 × 4.7 in. to 23.6 × 15.7 in.
- Pallet compatibility: 48 × 32 in. and 48 × 40 in. pallet sizes
- Infeed conveyor height: Starting at approximately 22.6 in.
- System layout: Dual palletizing positions
- Installation footprint: Approximately 194 sq ft
- Optional bundle grouping size: Up to approximately 23.6 × 15.7 in.
- Deployment type: Platform-mounted plug-and-play robotic cell
(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
- Compact dual-pallet station design for continuous production
- Simultaneous palletizing and pallet removal capability
- Articulated robotic arm with comb-and-pressure-plate gripper
- Handles multiple box sizes and pallet patterns
- Graphical touchscreen pallet pattern generation software
- Integrated safety zones and photocell monitoring system
- Plug-and-play platform-mounted design for simplified installation
- Optional interlayer dispensing system available
- Remote Wi-Fi diagnostics and support capability available
- Suitable for boxes, cartons, trays, and packaged products
- Designed for compact industrial footprints and flexible layouts

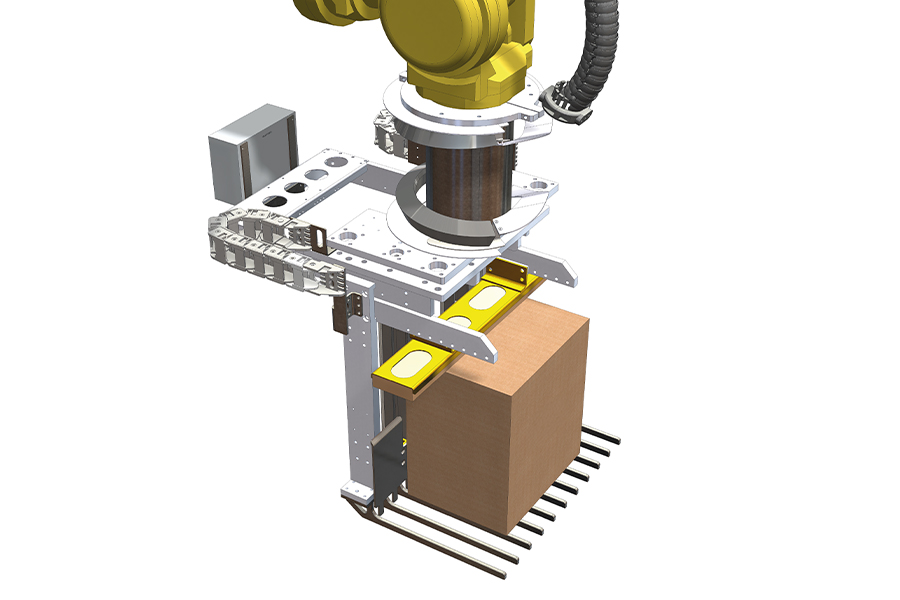

Products enter the palletizing cell through an infeed conveyor where the robotic arm retrieves cases using a comb-and-pressure-plate gripper system. The gripper lifts products from below while applying controlled pressure from above to maintain load stability during transfer and pallet placement.

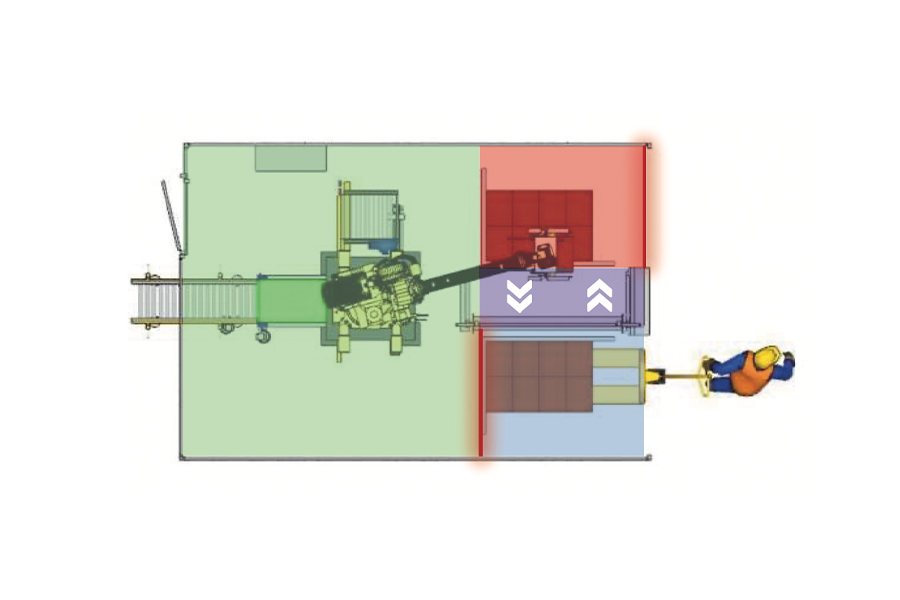

The dual pallet position design allows continuous operation by alternating palletizing activity between two pallet stations. While one pallet is actively being built, operators can safely remove and replace a completed pallet in the secondary zone without interrupting production flow. Integrated safety zones and photocell monitoring systems help maintain safe operation throughout the palletizing cycle.
The operator interface includes touchscreen controls and graphical pallet pattern generation software that simplifies setup and changeovers. New pallet configurations can be created visually without manual robot programming, allowing facilities to quickly adapt to changing box sizes, pallet patterns, and production requirements. Optional accessories such as interlayer dispensers and remote Wi-Fi support further increase system flexibility and automation capability.
This robotic palletizing system is engineered to automate the stacking of boxes and packaged products onto pallets using a compact dual-position palletizing cell. The system utilizes an articulated robotic arm with an integrated gripper assembly to precisely pick, position, and palletize products while maintaining stable and repeatable load formation.
Designed for flexibility and rapid deployment, the palletizer is mounted on a transportable platform that simplifies installation and startup. Its dual palletizing positions allow operators to remove completed pallets while the robot continues palletizing on the second station, minimizing downtime and improving overall production efficiency.
Products enter the palletizing cell through an infeed conveyor where the robotic arm retrieves cases using a comb-and-pressure-plate gripper system. The gripper lifts products from below while applying controlled pressure from above to maintain load stability during transfer and pallet placement.
The dual pallet position design allows continuous operation by alternating palletizing activity between two pallet stations. While one pallet is actively being built, operators can safely remove and replace a completed pallet in the secondary zone without interrupting production flow. Integrated safety zones and photocell monitoring systems help maintain safe operation throughout the palletizing cycle.
The operator interface includes touchscreen controls and graphical pallet pattern generation software that simplifies setup and changeovers. New pallet configurations can be created visually without manual robot programming, allowing facilities to quickly adapt to changing box sizes, pallet patterns, and production requirements. Optional accessories such as interlayer dispensers and remote Wi-Fi support further increase system flexibility and automation capability.
- Compact dual-pallet station design for continuous production
- Simultaneous palletizing and pallet removal capability
- Articulated robotic arm with comb-and-pressure-plate gripper
- Handles multiple box sizes and pallet patterns
- Graphical touchscreen pallet pattern generation software
- Integrated safety zones and photocell monitoring system
- Plug-and-play platform-mounted design for simplified installation
- Optional interlayer dispensing system available
- Remote Wi-Fi diagnostics and support capability available
- Suitable for boxes, cartons, trays, and packaged products
- Designed for compact industrial footprints and flexible layouts
- Production capacity: Up to approximately 20 boxes per minute
- Cycle rate: Up to approximately 8.5 cycles per minute
- Box size range: Approximately 4.7 × 4.7 in. to 23.6 × 15.7 in.
- Pallet compatibility: 48 × 32 in. and 48 × 40 in. pallet sizes
- Infeed conveyor height: Starting at approximately 22.6 in.
- System layout: Dual palletizing positions
- Installation footprint: Approximately 194 sq ft
- Optional bundle grouping size: Up to approximately 23.6 × 15.7 in.
- Deployment type: Platform-mounted plug-and-play robotic cell
(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
