Drag Chain Pallet Conveyor

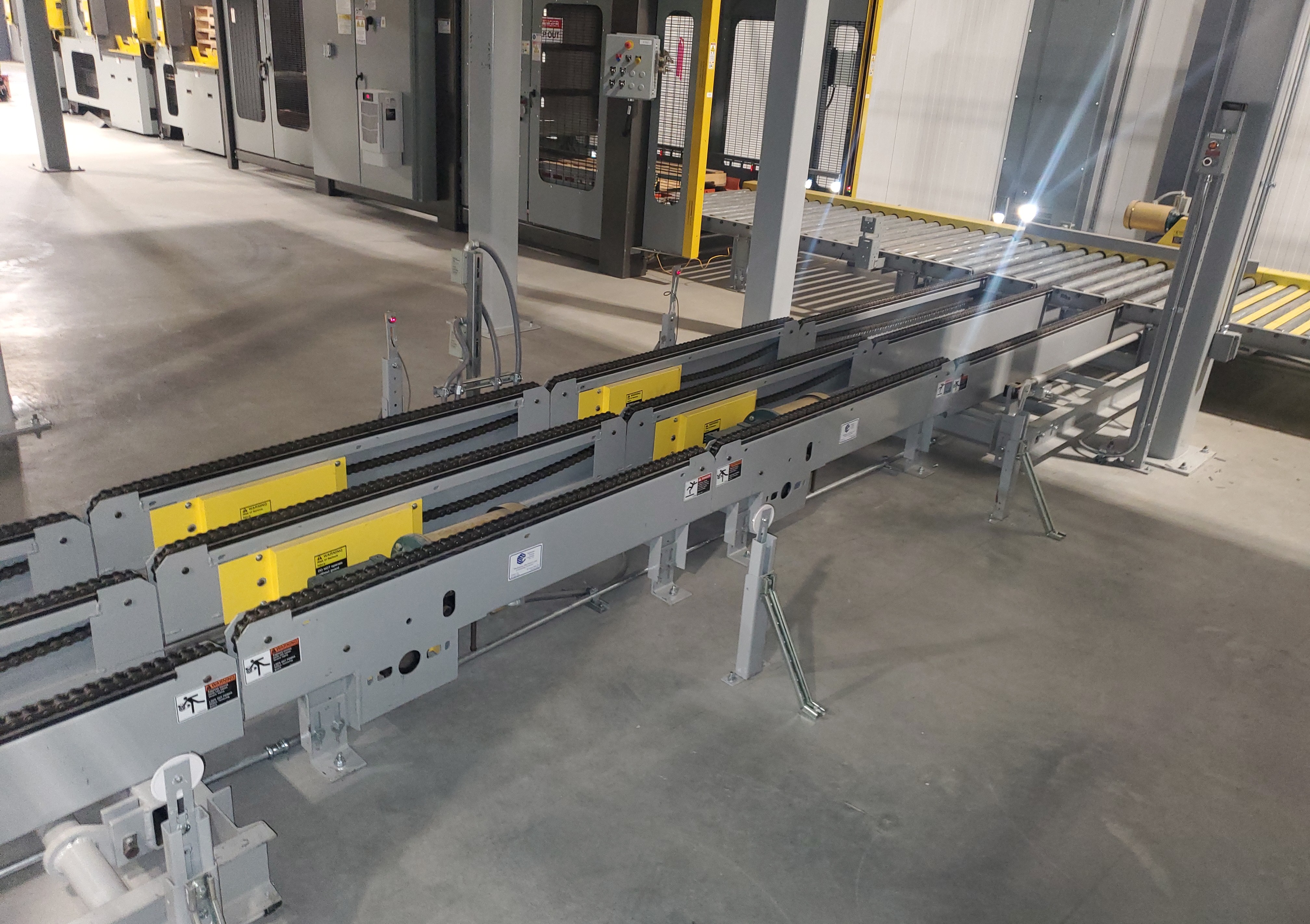

Drag Chain Conveyors are designed for transportation of heavy pallets and unit loads requiring positive chain-driven movement throughout industrial conveyor systems. The conveyor utilizes multiple strands of powered drag chain to support and move pallets or products directly along the conveyor path while maintaining stable load handling and controlled product movement.

The system is commonly integrated into pallet handling systems, automated warehouses, production facilities, stretch wrapping operations, and end-of-line material handling applications requiring heavy-duty load transport. The conveyor’s structural steel frame construction and chain-driven design provide long-term durability for demanding industrial environments while supporting a wide range of pallet sizes, product weights, and conveyor layouts.

The conveyor utilizes precision drag chains mounted within a welded structural steel frame to transport pallets and heavy unit loads throughout automated conveyor systems. Multiple chain strand configurations are available depending on pallet dimensions, load distribution requirements, and throughput demands. The positive-drive chain system provides reliable load handling while minimizing pallet slippage and maintaining controlled product movement during transportation.

The low-profile conveyor design helps simplify floor-level integration and pallet transfer operations while maintaining heavy load capacity capability. Drive systems are factory sized based on application load requirements to ensure dependable conveyor performance and continuous-duty operation. The conveyor can also be integrated with chain transfers, turntables, pallet dispensers, stretch wrappers, and other automated material handling equipment.

Optional controls integration, VFD drives, sensors, stops, and accumulation controls allow the drag chain conveyor to operate as part of larger automated pallet handling systems. The rugged construction and fully assembled shipment design help simplify installation while supporting long-term industrial reliability.

• Heavy-duty drag chain conveyor system
• Positive chain-driven pallet transportation
• Designed for pallet and unit load handling
• Low-profile conveyor design
• Welded structural steel frame construction
• Multiple chain strand configurations available
• Continuous-duty industrial operation
• Factory-sized drive systems based on load requirements
• Compatible with automated pallet handling systems
• Supports pallet staging and transfer applications
• Compatible with chain transfers and turntables
• Heavy-duty adjustable support systems available
• Optional VFD drive capability
• Fully assembled and factory tested prior to shipment
• Compatible with accumulation and conveyor controls
• Designed for manufacturing, warehousing, and distribution operations

• Equipment Type: Drag chain conveyor
• Conveyor Function: Pallet and heavy unit load transportation
• Product Types: Pallets, skids, containers, and heavy unit loads
• Conveyor Construction: Welded structural steel frame
• Conveyor Style: Multi-strand powered drag chain conveyor
• Drive Type: Heavy-duty chain-driven conveyor system
• Conveyor Profile: Low-profile industrial design
• Operation Type: Continuous-duty pallet transport
• Electrical Requirements: 230/460V, 3 Phase, 60 Hz
• Drive Configurations: Factory-sized based on application load requirements
• Support Type: Heavy-duty adjustable supports available
• Controls Integration: Compatible with sensors, photo-eyes, and automated conveyor controls
• Optional Features: VFD drives, pallet stops, guides, galvanized construction, and accumulation controls
• Integration Capability: Compatible with chain transfers, turntables, pallet dispensers, and stretch wrapping systems
• Operating Environment: Manufacturing, warehousing, and industrial material handling applications

(Final specifications vary depending on load requirements, pallet dimensions, throughput requirements, and overall system configuration.)
