Diverter Gates

This conveyor diverting system is engineered to manage and redirect product flow within automated packaging and material handling environments. Utilizing a variety of gate and guide configurations, the system allows products to be diverted from a single conveyor lane into multiple destinations while maintaining smooth and controlled product handling.

Designed for flexibility, the system supports a wide range of product types including bottles, cans, cartons, cases, pouches, jars, and bundles. Its modular construction and multiple actuation options allow the equipment to integrate into both simple and highly automated conveyor systems while improving line efficiency and product flow management.

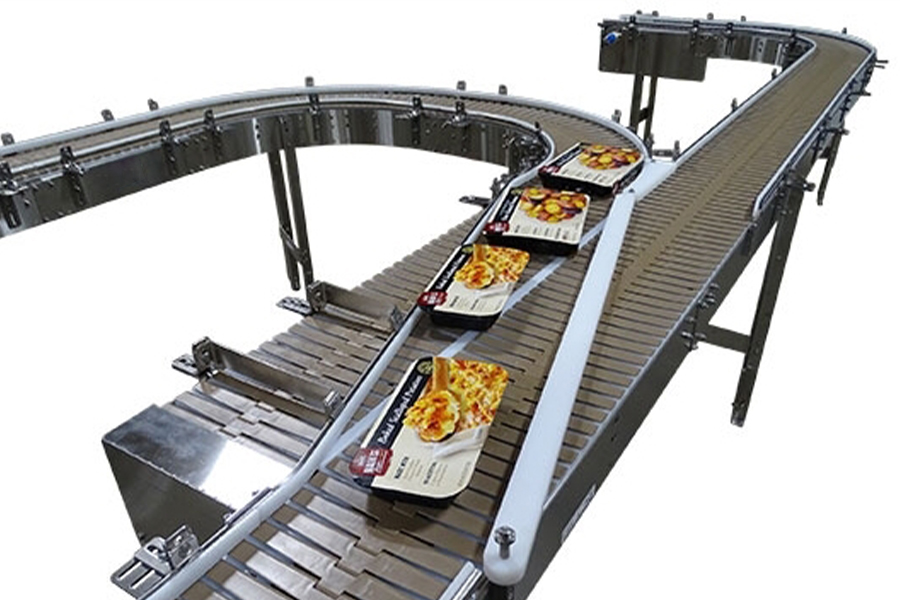

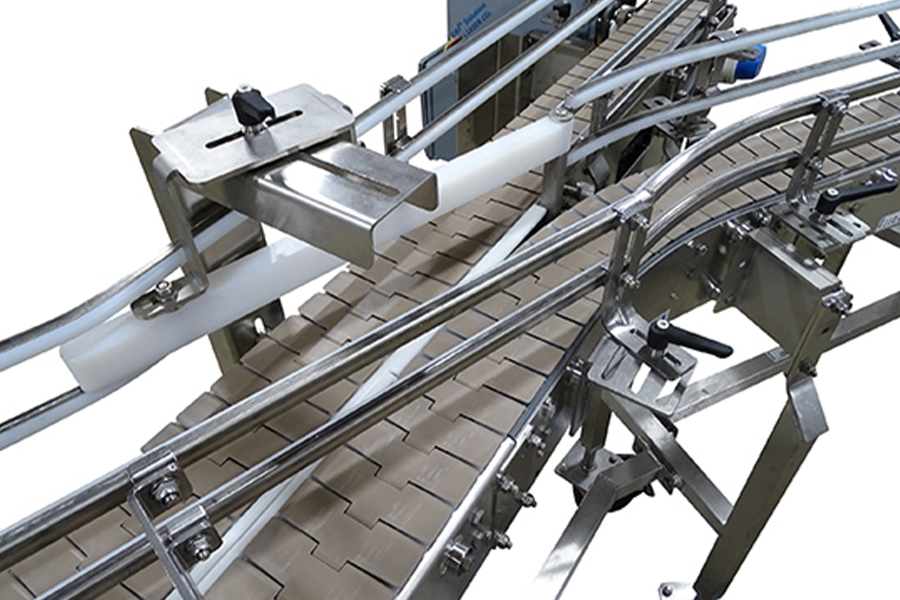

The system utilizes divert gates, swing arms, static guides, and servo-controlled mechanisms to route products to designated conveyor lanes or downstream equipment. Depending on the application, products may be diverted using fixed guide rails, pivoting gates, or electronically controlled servo devices that dynamically position products while maintaining continuous line movement.

Diverter gates commonly utilize pivoting blades within a Y-shaped frame to redirect products toward one or more conveyor paths. These systems can be manually operated or automated using pneumatic, electric, or servo-driven technology depending on production speed and product handling requirements.

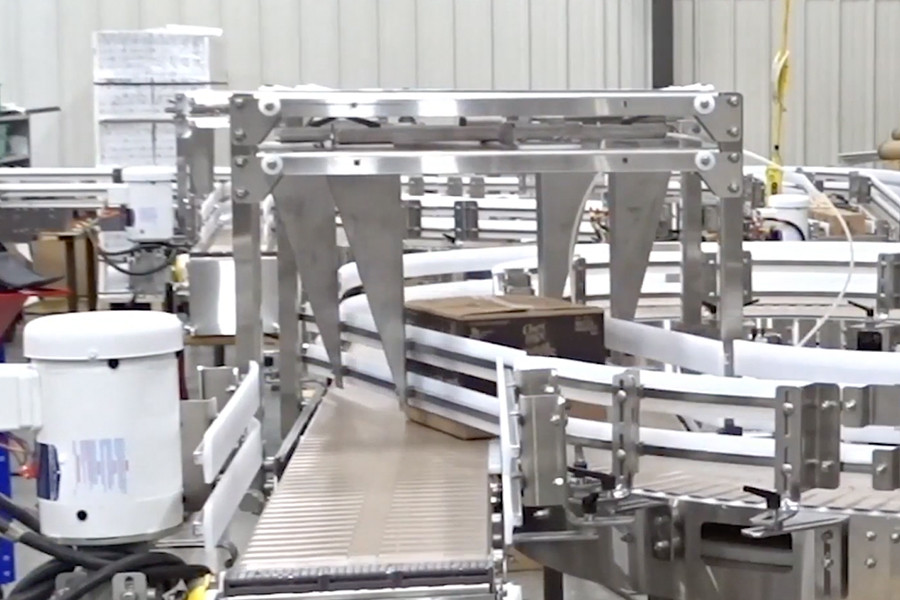

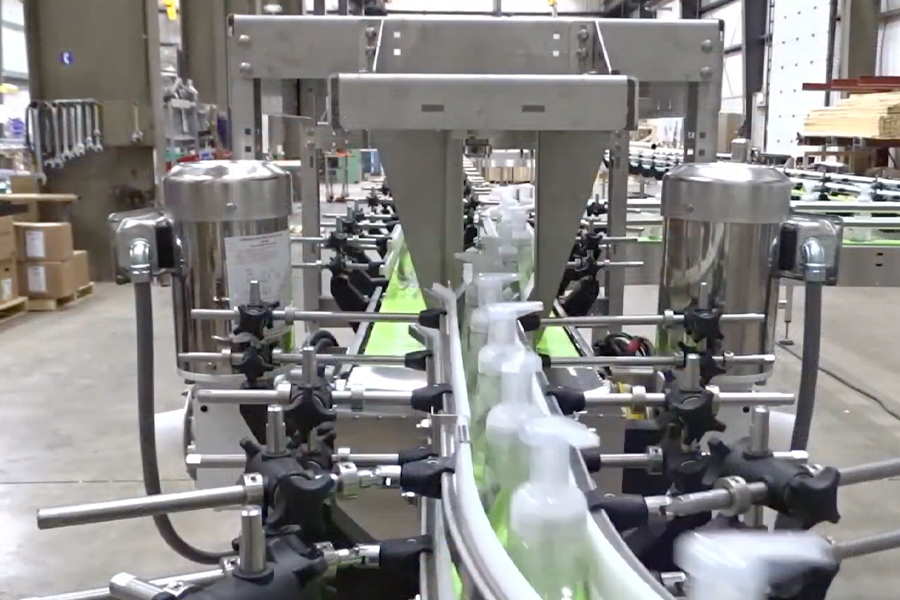

Servo-driven guide systems provide more advanced control by actively directing product flow with synchronized motion and precise timing. These systems are commonly used in high-speed production environments where exact product placement, smooth lane transitions, and minimized product impact are critical to maintaining throughput and product integrity.

• Conveyor diverting and lane management system
• Supports single-lane to multi-lane product routing
• Available with static guides, swing arms, and divert gates
• Servo-controlled diverting options available for precise product handling
• Pneumatic, electric, manual, and servo actuation configurations available
• Handles bottles, cans, cartons, cases, pouches, jars, and bundles
• Smooth product redirection with controlled flow management
• Modular design for flexible conveyor layouts and future expansion
• Suitable for high-speed packaging and material handling operations
• Designed for continuous industrial operation with low maintenance requirements

• System type: Conveyor diverting and lane management equipment
• Product compatibility: Bottles, cans, cartons, jars, pouches, cases, and bundles
• Divert methods: Static guide, swing guide, pivot gate, and servo-controlled systems
• Actuation options: Manual, pneumatic, electric, and servo-driven operation
• Conveyor compatibility: Tabletop chain, modular belt, and conveyor handling systems
• Lane capability: Single-lane or multi-lane product routing configurations
• Construction: Industrial steel and conveyor-grade components
• Integration: Compatible with automated packaging and conveyor systems

(Final specifications vary depending on product dimensions, conveyor speed, throughput requirements, and system configuration.)
