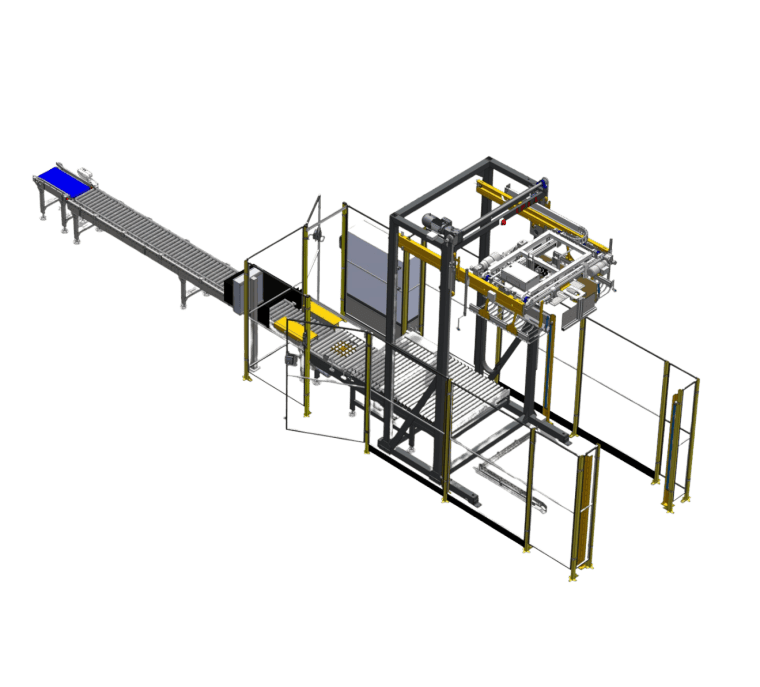

Comb Palletizer
The Comb Palletizer is a conventional automatic layer palletizer designed to provide reliable palletizing across a wide range of case sizes and pallet patterns.
Its integrated layer-forming system automatically arranges cases into complete patterns before transferring each finished layer onto the pallet. With production rates up to approximately 20 cases per minute or 3 layers per minute, the system provides a robust and flexible solution for continuous-duty palletizing operations.
The Comb Palletizer automates case orientation, layer formation, and pallet building within a compact conventional palletizing system. Incoming cases are positioned and arranged according to the programmed pallet pattern, allowing complete layers to be formed before being transferred onto the pallet. This controlled layer-building process provides consistent case positioning and helps create uniform, stable pallet loads.
Designed to accommodate a broad range of case formats, the system provides flexibility for operations running multiple products through a common palletizing line. A variety of pallet patterns can be stored and selected based on the active product recipe, simplifying changeovers while maintaining consistent pallet quality and production performance.
- Equipment Type: Conventional automatic layer palletizer
- Throughput: Up to approximately 20 cases per minute
- Layer Forming Rate: Up to approximately 3 layers per minute
- Case Width: Approximately 5.9" to 15.7"
- Case Length: Approximately 5.9" to 23.6"
- Case Height: Approximately 3.9" to 15.7"
- Maximum Load: Up to approximately 440 lbs
- Layer Forming: Automatic case arrangement and complete-layer formation
- Product Rotation: Automatic case orientation based on programmed pallet pattern
- Pallet Patterns: Multiple programmable patterns for varying case formats
- Configuration: Available with or without integrated case-handling equipment
- Controls: PLC-controlled operation with touchscreen HMI
- Construction: Heavy-duty industrial steel frame
- Optional Equipment: Pallet dispensers, interlayer systems, pallet conveyors, and additional case handling equipment
(Final specifications vary depending on product dimensions, throughput requirements, and system configuration.)
- Conventional automatic layer palletizing system
- Production rates up to approximately 20 cases per minute
- Layer forming rates up to approximately 3 layers per minute
- Automatic case positioning and layer formation
- Product rotation capability for pattern creation
- Handles a wide range of corrugated case sizes
- Flexible programmable pallet patterns
- Complete-layer pallet placement
- Consistent and repeatable case positioning
- Designed to produce stable, uniform pallet loads
- Automatic product recipe management
- Available with or without integrated case handling
- Compatible with pallet conveyors and downstream equipment
- Optional pallet dispensers and interlayer systems available
- Heavy-duty industrial construction
- Designed for continuous-duty operation
The palletizer utilizes an automatic layer-forming system to arrange incoming cases into predetermined pallet patterns. Cases can be positioned and rotated as required to create the programmed layer, with each completed pattern transferred onto the pallet as a complete layer. This approach provides accurate product placement while maintaining pallet stability throughout the building process.
Heavy-duty industrial construction supports continuous operation in demanding production environments while minimizing maintenance requirements. The system can be supplied with or without an integrated case-handling system, allowing the palletizer to be configured around existing conveyors or incorporated into a complete end-of-line material handling system.
The Comb Palletizer automates case orientation, layer formation, and pallet building within a compact conventional palletizing system. Incoming cases are positioned and arranged according to the programmed pallet pattern, allowing complete layers to be formed before being transferred onto the pallet. This controlled layer-building process provides consistent case positioning and helps create uniform, stable pallet loads.
Designed to accommodate a broad range of case formats, the system provides flexibility for operations running multiple products through a common palletizing line. A variety of pallet patterns can be stored and selected based on the active product recipe, simplifying changeovers while maintaining consistent pallet quality and production performance.
The palletizer utilizes an automatic layer-forming system to arrange incoming cases into predetermined pallet patterns. Cases can be positioned and rotated as required to create the programmed layer, with each completed pattern transferred onto the pallet as a complete layer. This approach provides accurate product placement while maintaining pallet stability throughout the building process.
Heavy-duty industrial construction supports continuous operation in demanding production environments while minimizing maintenance requirements. The system can be supplied with or without an integrated case-handling system, allowing the palletizer to be configured around existing conveyors or incorporated into a complete end-of-line material handling system.
- Conventional automatic layer palletizing system
- Production rates up to approximately 20 cases per minute
- Layer forming rates up to approximately 3 layers per minute
- Automatic case positioning and layer formation
- Product rotation capability for pattern creation
- Handles a wide range of corrugated case sizes
- Flexible programmable pallet patterns
- Complete-layer pallet placement
- Consistent and repeatable case positioning
- Designed to produce stable, uniform pallet loads
- Automatic product recipe management
- Available with or without integrated case handling
- Compatible with pallet conveyors and downstream equipment
- Optional pallet dispensers and interlayer systems available
- Heavy-duty industrial construction
- Designed for continuous-duty operation
- Equipment Type: Conventional automatic layer palletizer
- Throughput: Up to approximately 20 cases per minute
- Layer Forming Rate: Up to approximately 3 layers per minute
- Case Width: Approximately 5.9" to 15.7"
- Case Length: Approximately 5.9" to 23.6"
- Case Height: Approximately 3.9" to 15.7"
- Maximum Load: Up to approximately 440 lbs
- Layer Forming: Automatic case arrangement and complete-layer formation
- Product Rotation: Automatic case orientation based on programmed pallet pattern
- Pallet Patterns: Multiple programmable patterns for varying case formats
- Configuration: Available with or without integrated case-handling equipment
- Controls: PLC-controlled operation with touchscreen HMI
- Construction: Heavy-duty industrial steel frame
- Optional Equipment: Pallet dispensers, interlayer systems, pallet conveyors, and additional case handling equipment
(Final specifications vary depending on product dimensions, throughput requirements, and system configuration.)
