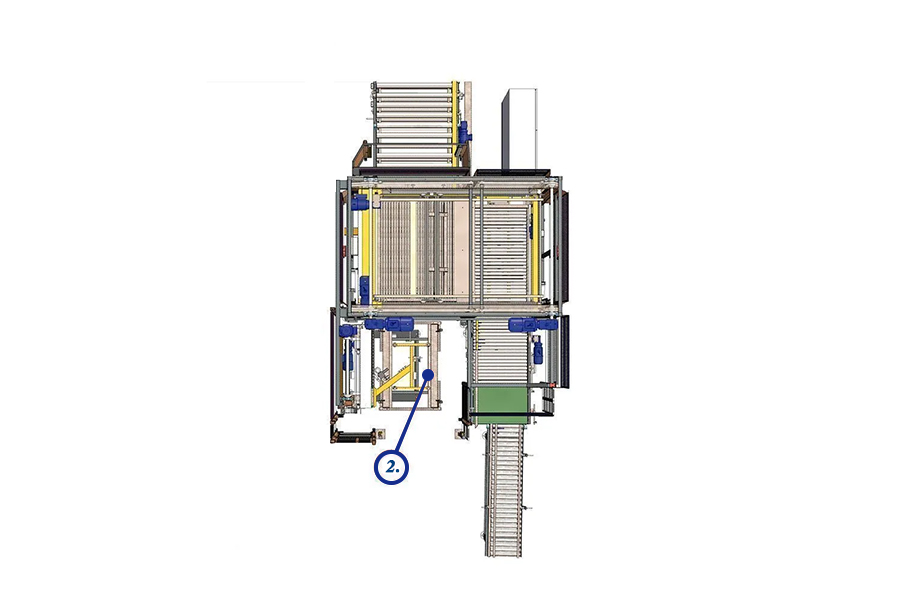

Cargo Palletizer
A high-speed layer palletizing system designed to palletize boxes, trays, and packaged products with flexible pallet pattern formation and stable load handling.
The system utilizes coordinated product grouping, rotation, and layer transfer technology to achieve fast palletizing speeds while maintaining precise load positioning and pallet stability. Ideal for automated end-of-line palletizing applications requiring reliable high-throughput operation.
This layer palletizer is engineered to automate the formation and palletizing of complete product layers using a row-forming palletizing table combined with synchronized product grouping and transfer systems. The machine is designed for high-speed production environments requiring accurate pallet pattern formation, compact system layouts, and stable finished pallet loads.
Its palletizing system allows products to be grouped, rotated, and positioned prior to pallet placement, enabling the creation of multiple pallet patterns including configurations with intentional gaps between products. The integrated centering framework ensures layers are accurately positioned on the pallet to improve final pallet stability and load quality.
- System type: Layer palletizer
- Production capacity: Up to approximately 45 boxes per minute or 4.5 layers per minute
- Pattern versatility: Approximately 90% adaptable pallet patterns
- Entry box height range: Approximately 110 in. to 138 in.
- Supported pallet sizes: Approximately 48 × 32 in. and 48 × 40 in.
- Product handling: Coordinated grouping and rotation conveyor system
- Layer handling: Full layer pallet transfer system
- Optional systems: Empty pallet dispenser, interlayer dispenser, pallet transfer conveyors, remote assistance system
- Construction: Heavy-duty industrial steel palletizer structure
- Controls: Touchscreen HMI operator interface
- Applications: Automated palletizing of cartons, trays, and packaged products
(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
- Fully automatic layer palletizing system
- High-speed palletizing operation
- Row-based pallet pattern formation
- Integrated product grouping and rotation system
- Multiple pallet pattern capability
- Ability to create intentional product gaps within pallet layers
- Compact palletizer footprint
- Centering framework for stable pallet loads
- Smooth layer transfer operation
- Touchscreen operator control interface
- Optional empty pallet dispenser available
- Optional interlayer dispenser available
- Multiple pallet entry and exit configurations available
- Remote Wi-Fi assistance capability available
- Designed for continuous automated palletizing operation
Products enter the palletizer through a powered conveyor system where integrated grouping and rotation devices orient products according to the selected pallet pattern. Rows of products are accumulated on the pattern forming table until a complete layer has been generated. Once complete, the layer is transferred and deposited onto the pallet using synchronized layer transfer mechanisms designed for smooth and accurate placement.
The palletizer utilizes coordinated vertical and horizontal movement systems that allow rapid layer handling while maintaining precise positioning throughout the palletizing cycle. Its compact gantry-style design minimizes floor space requirements while supporting high production throughput and stable load formation.
The machine can also integrate optional pallet handling equipment including empty pallet dispensers, interlayer dispensers, double-height pallet conveyors, and automated pallet transfer systems to support fully automated palletizing lines. Remote assistance capability via Wi-Fi is also available to simplify diagnostics and support.
This layer palletizer is engineered to automate the formation and palletizing of complete product layers using a row-forming palletizing table combined with synchronized product grouping and transfer systems. The machine is designed for high-speed production environments requiring accurate pallet pattern formation, compact system layouts, and stable finished pallet loads.
Its palletizing system allows products to be grouped, rotated, and positioned prior to pallet placement, enabling the creation of multiple pallet patterns including configurations with intentional gaps between products. The integrated centering framework ensures layers are accurately positioned on the pallet to improve final pallet stability and load quality.
Products enter the palletizer through a powered conveyor system where integrated grouping and rotation devices orient products according to the selected pallet pattern. Rows of products are accumulated on the pattern forming table until a complete layer has been generated. Once complete, the layer is transferred and deposited onto the pallet using synchronized layer transfer mechanisms designed for smooth and accurate placement.
The palletizer utilizes coordinated vertical and horizontal movement systems that allow rapid layer handling while maintaining precise positioning throughout the palletizing cycle. Its compact gantry-style design minimizes floor space requirements while supporting high production throughput and stable load formation.
The machine can also integrate optional pallet handling equipment including empty pallet dispensers, interlayer dispensers, double-height pallet conveyors, and automated pallet transfer systems to support fully automated palletizing lines. Remote assistance capability via Wi-Fi is also available to simplify diagnostics and support.
- Fully automatic layer palletizing system
- High-speed palletizing operation
- Row-based pallet pattern formation
- Integrated product grouping and rotation system
- Multiple pallet pattern capability
- Ability to create intentional product gaps within pallet layers
- Compact palletizer footprint
- Centering framework for stable pallet loads
- Smooth layer transfer operation
- Touchscreen operator control interface
- Optional empty pallet dispenser available
- Optional interlayer dispenser available
- Multiple pallet entry and exit configurations available
- Remote Wi-Fi assistance capability available
- Designed for continuous automated palletizing operation
- System type: Layer palletizer
- Production capacity: Up to approximately 45 boxes per minute or 4.5 layers per minute
- Pattern versatility: Approximately 90% adaptable pallet patterns
- Entry box height range: Approximately 110 in. to 138 in.
- Supported pallet sizes: Approximately 48 × 32 in. and 48 × 40 in.
- Product handling: Coordinated grouping and rotation conveyor system
- Layer handling: Full layer pallet transfer system
- Optional systems: Empty pallet dispenser, interlayer dispenser, pallet transfer conveyors, remote assistance system
- Construction: Heavy-duty industrial steel palletizer structure
- Controls: Touchscreen HMI operator interface
- Applications: Automated palletizing of cartons, trays, and packaged products
(Final specifications vary depending on product dimensions, pallet patterns, throughput requirements, and system configuration.)
