ATFXU Case Sealer
A fully automatic carton sealing system designed for high-speed sealing of uniform HSC-style produce boxes.
The machine automates flap handling, folding, and tape application to improve throughput and reduce manual labor. Ideal for agricultural and food packaging operations requiring reliable, continuous case sealing performance.
This automatic carton sealer is engineered for high-speed sealing of uniform HSC corrugated cartons commonly used in produce and agricultural packaging applications. The system utilizes a multi-station process that automatically indexes cartons, lifts outer sleeves, folds flaps, and applies pressure-sensitive tape for consistent and secure sealing performance.
Designed for demanding production environments, the machine combines heavy-duty construction with automated operation to improve line efficiency while minimizing operator involvement. Its integrated conveyor and belt drive system maintains smooth carton handling throughout the sealing process, making it suitable for continuous, high-volume packaging operations.
- Throughput: Up to approximately 38 cartons per minute
- Carton size range: Approximately 16.7–23.5 in. L × 11.2–15.6 in. W × 5.2–10.5 in. H
- Machine dimensions: Approximately 107.5 in. L × 41.8 in. W × 60.8 in. H
- Conveyor height range: Approximately 24–31 in.
- Tape compatibility: 2 in. or 3 in. tape heads
- Air requirements: Approximately 90 PSI, 8 SCFM
- Electrical requirements: 208–220V, 3 Phase
- Shipping weight: Approximately 1,098 lbs.
- Fully automatic operator-free carton sealing operation
- Four-station sealing process for controlled carton handling

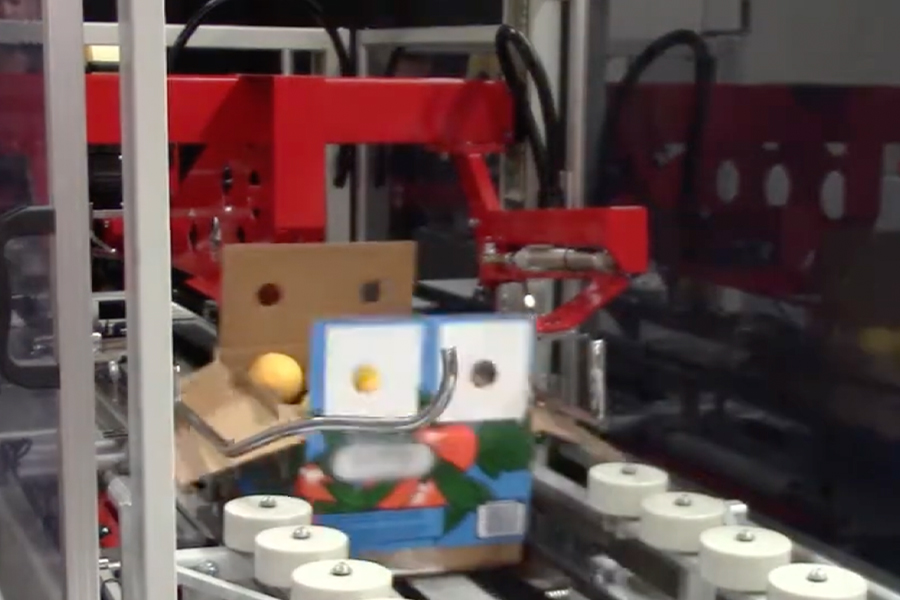

- Positive outer sleeve lifting system with vibration assist

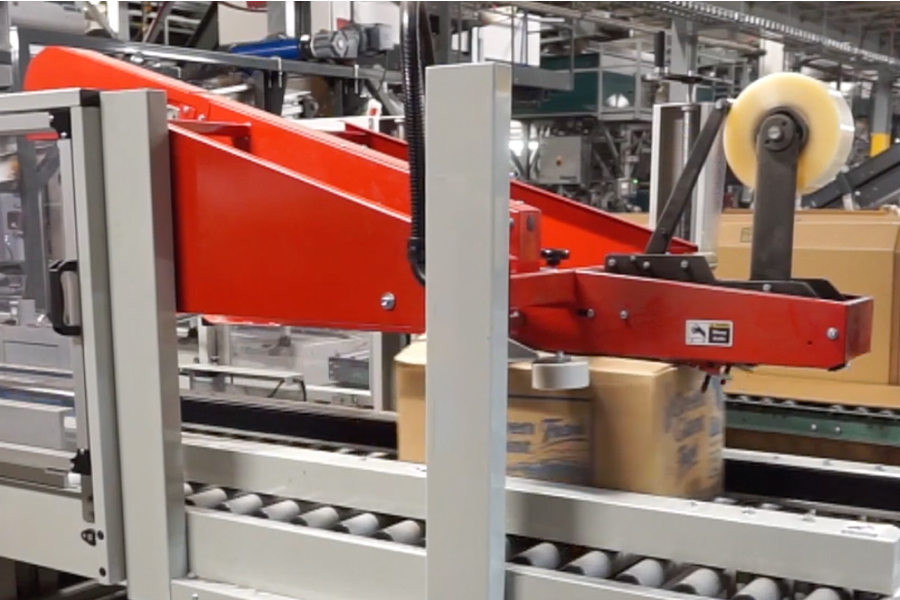

- Automatic flap folding and top/bottom tape sealing
- High-speed top and bottom belt drive system
- Self-centering guide rails for consistent carton alignment
- Heavy-duty welded steel frame construction
- Interlock safety gates and integrated safety systems

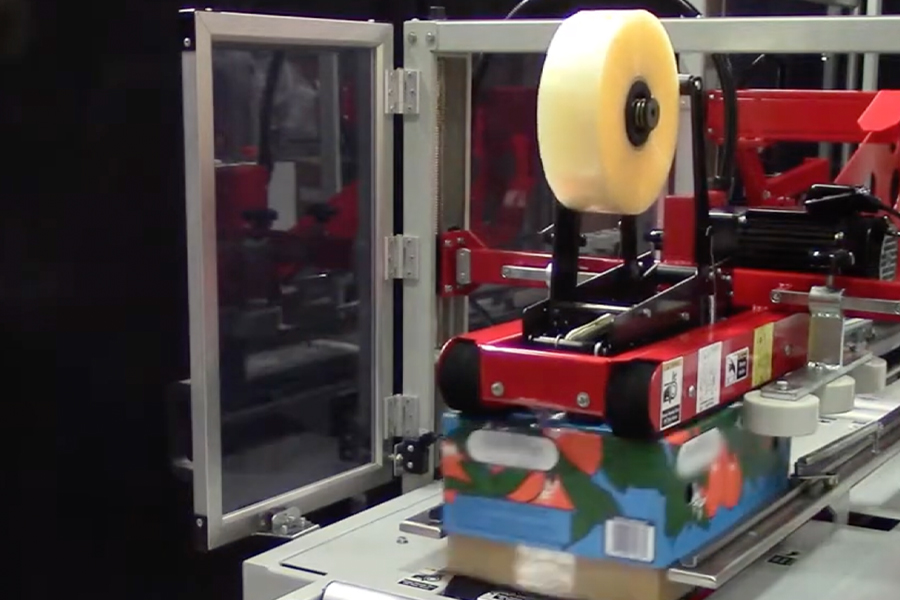

- Compatible with 2 in. or 3 in. pressure-sensitive tape heads
- Available in food-grade stainless steel configurations for washdown environments
This system automates the sealing of HSC-style corrugated cartons through a coordinated four-stage process. Cartons first enter an indexing section where spacing is controlled before moving into a lifting station that separates and positions the outer sleeve flaps. The machine then folds the carton flaps and applies tape to both the top and bottom surfaces for a secure seal.
The integrated high-speed belt drive system maintains positive carton control throughout operation while self-centering guide rails improve alignment and sealing consistency. Adjustable compression rollers and guide systems help ensure proper flap positioning during high-speed production conditions.
Built for continuous industrial use, the machine utilizes a heavy-duty welded frame and maintenance-friendly components to reduce downtime and improve long-term reliability. Optional configurations such as stainless steel construction, low tape monitoring systems, and conveyor integration allow the system to be adapted for a wide range of packaging environments and production requirements.
This automatic carton sealer is engineered for high-speed sealing of uniform HSC corrugated cartons commonly used in produce and agricultural packaging applications. The system utilizes a multi-station process that automatically indexes cartons, lifts outer sleeves, folds flaps, and applies pressure-sensitive tape for consistent and secure sealing performance.
Designed for demanding production environments, the machine combines heavy-duty construction with automated operation to improve line efficiency while minimizing operator involvement. Its integrated conveyor and belt drive system maintains smooth carton handling throughout the sealing process, making it suitable for continuous, high-volume packaging operations.
This system automates the sealing of HSC-style corrugated cartons through a coordinated four-stage process. Cartons first enter an indexing section where spacing is controlled before moving into a lifting station that separates and positions the outer sleeve flaps. The machine then folds the carton flaps and applies tape to both the top and bottom surfaces for a secure seal.
The integrated high-speed belt drive system maintains positive carton control throughout operation while self-centering guide rails improve alignment and sealing consistency. Adjustable compression rollers and guide systems help ensure proper flap positioning during high-speed production conditions.
Built for continuous industrial use, the machine utilizes a heavy-duty welded frame and maintenance-friendly components to reduce downtime and improve long-term reliability. Optional configurations such as stainless steel construction, low tape monitoring systems, and conveyor integration allow the system to be adapted for a wide range of packaging environments and production requirements.
- Fully automatic operator-free carton sealing operation
- Four-station sealing process for controlled carton handling
- Positive outer sleeve lifting system with vibration assist
- Automatic flap folding and top/bottom tape sealing
- High-speed top and bottom belt drive system
- Self-centering guide rails for consistent carton alignment
- Heavy-duty welded steel frame construction
- Interlock safety gates and integrated safety systems
- Compatible with 2 in. or 3 in. pressure-sensitive tape heads
- Available in food-grade stainless steel configurations for washdown environments
- Throughput: Up to approximately 38 cartons per minute
- Carton size range: Approximately 16.7–23.5 in. L × 11.2–15.6 in. W × 5.2–10.5 in. H
- Machine dimensions: Approximately 107.5 in. L × 41.8 in. W × 60.8 in. H
- Conveyor height range: Approximately 24–31 in.
- Tape compatibility: 2 in. or 3 in. tape heads
- Air requirements: Approximately 90 PSI, 8 SCFM
- Electrical requirements: 208–220V, 3 Phase
- Shipping weight: Approximately 1,098 lbs.
